Home >> Chevrolet >> 2004 >> Monte Carlo V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Views >> Lower Right Rear of Engine

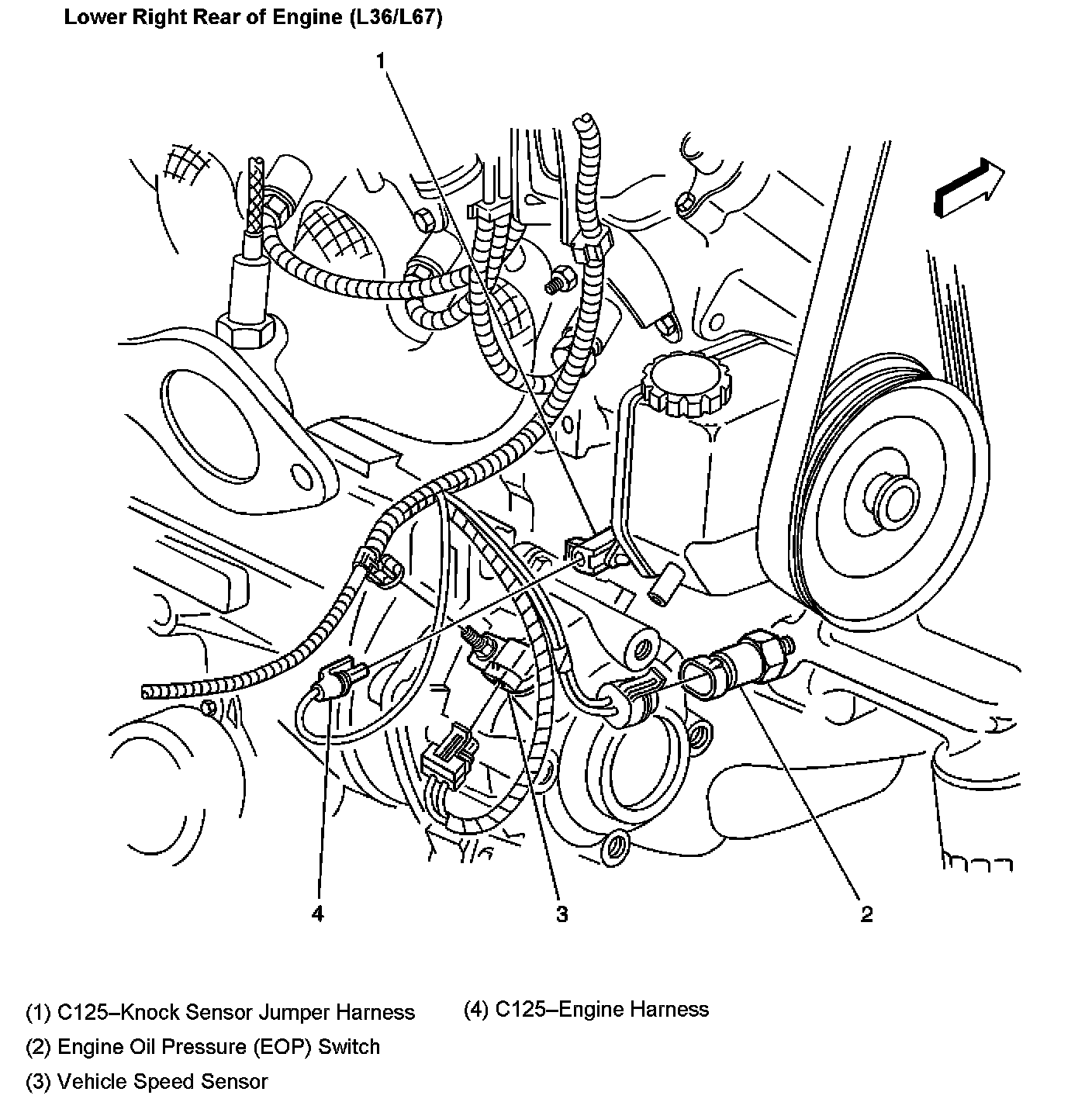

Lower Right Rear of Engine

Lower Right Rear Of Engine:
