Blower Motor: Service and Repair

BLOWER MOTOR REPLACEMENT

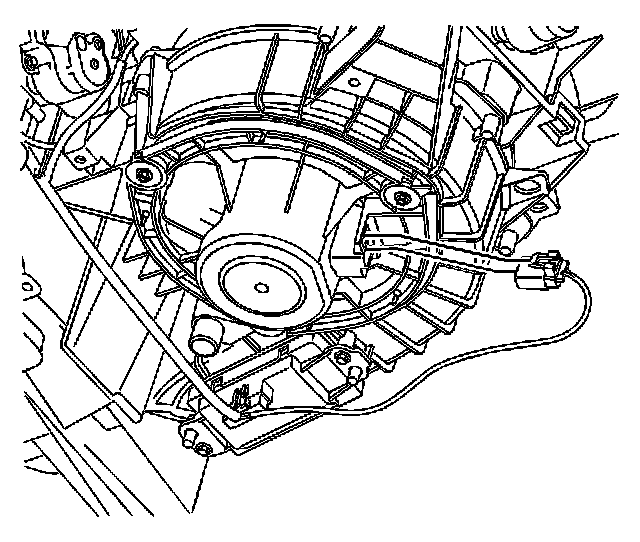

REMOVAL PROCEDURE




1. Remove the right side instrument panel insulator.




2. Disconnect the blower motor electrical connector.
3. Remove the blower motor mounting screws.
4. Remove the blower motor.

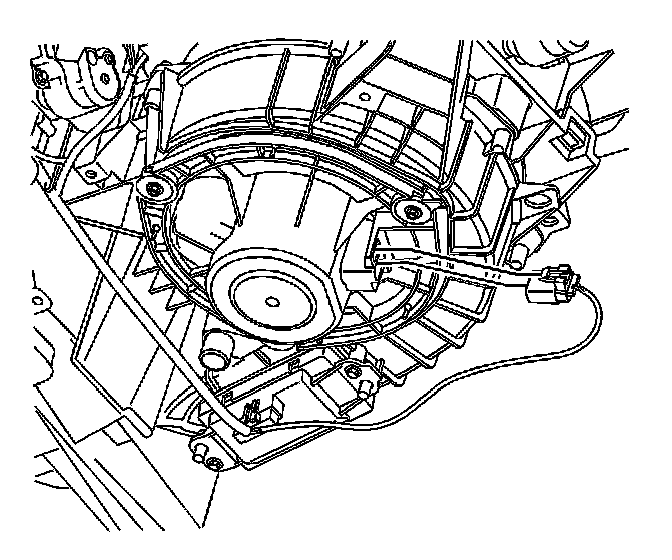

INSTALLATION PROCEDURE




1. Install the blower motor.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the blower motor screws.

Tighten
Tighten the screws to 1.3 N.m (12 lb in).

3. Connect the blower motor electrical connector.
4. Install the right side instrument panel insulator.
