Driver Information Center Replacement (With RPO CF5)

DRIVER INFORMATION CENTER REPLACEMENT (CF5)

REMOVAL PROCEDURE

IMPORTANT: The driver information center is serviced as part of the complete roof console.

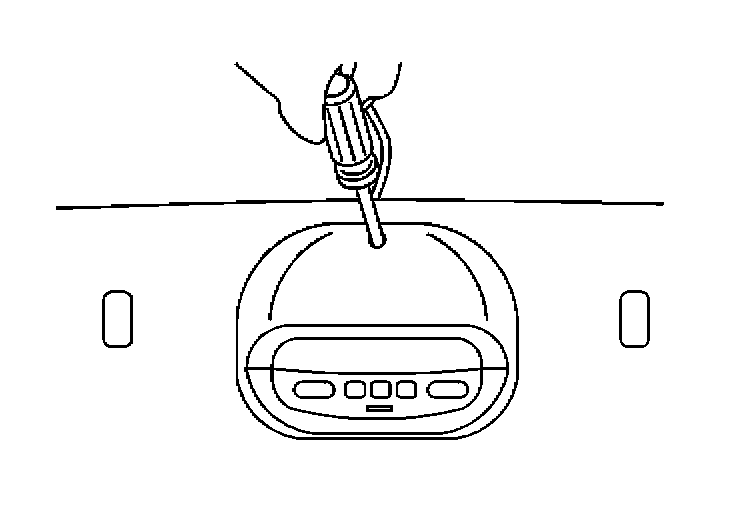

1. Remove the roof console screw.

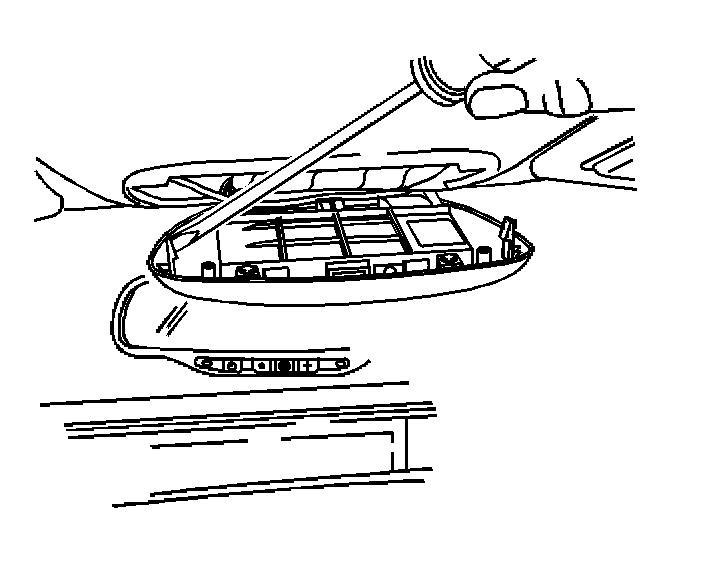

2. Use a small, flat-bladed tool in order to release the 2 retainers. These retainers are located on each side of the assembly in front of the switches. Press the retainers outward to release the roof console.




3. Lower the roof console from the headliner.

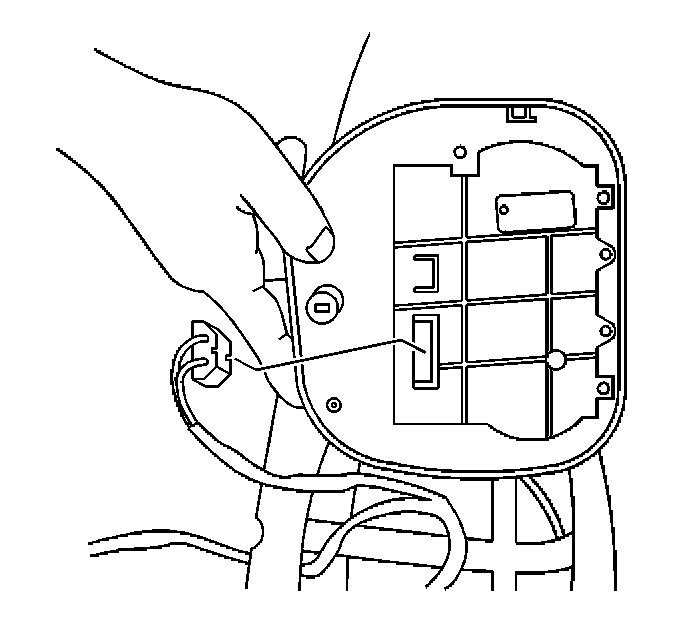

4. Disconnect the electrical connectors from the roof console.
5. Remove the roof console.




6. Remove the sunshade anchors.
7. Lower the headliner at the sunroof opening. Reach between the headliner and the roof to remove the foam tape from the wiring harness on the roof console backing plate.
8. Adjust the wiring harness for access.

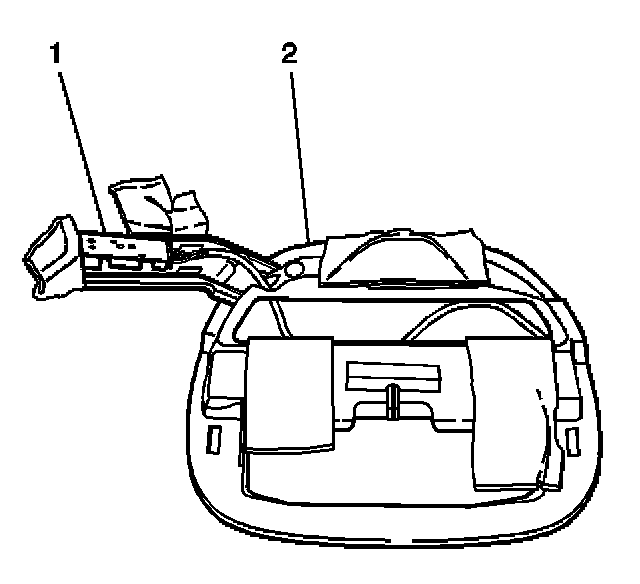

9. Slide the roof console backing plate (2) forward and remove the backing plate from the front of the headliner.

INSTALLATION PROCEDURE




1. Position the roof console backing plate (2) to the headliner opening.




2. Secure the wiring harness in the original position to the roof console backing plate.

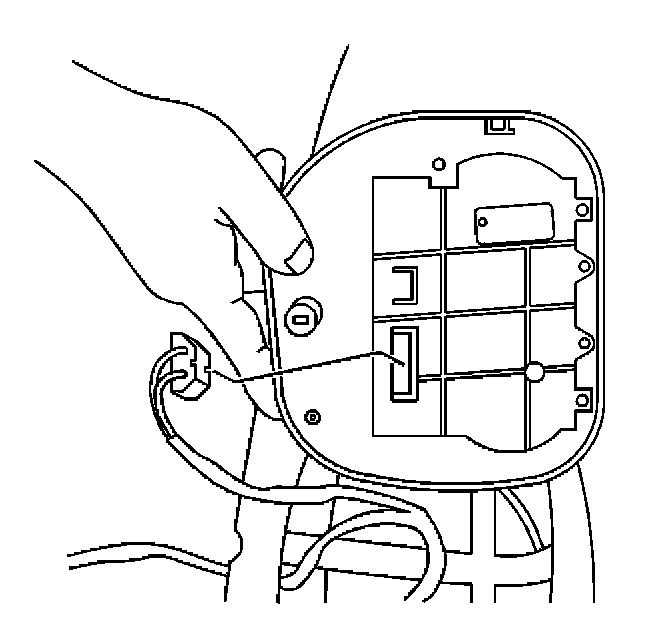

3. Connect the electrical connectors to the roof console.




4. Install the headliner.
5. Install the sunshade anchors.
6. Position the roof console to the roof console backing plate in the headliner.
7. Install the roof console by pressing the console into place until the retainers are completely engaged.

NOTE: Refer to Fastener Notice in Service Precautions.

8. Install the to the roof console screw.

Tighten
Tighten the screw to 2 N.m (18 lb in).
