Instrument Cluster Schematics

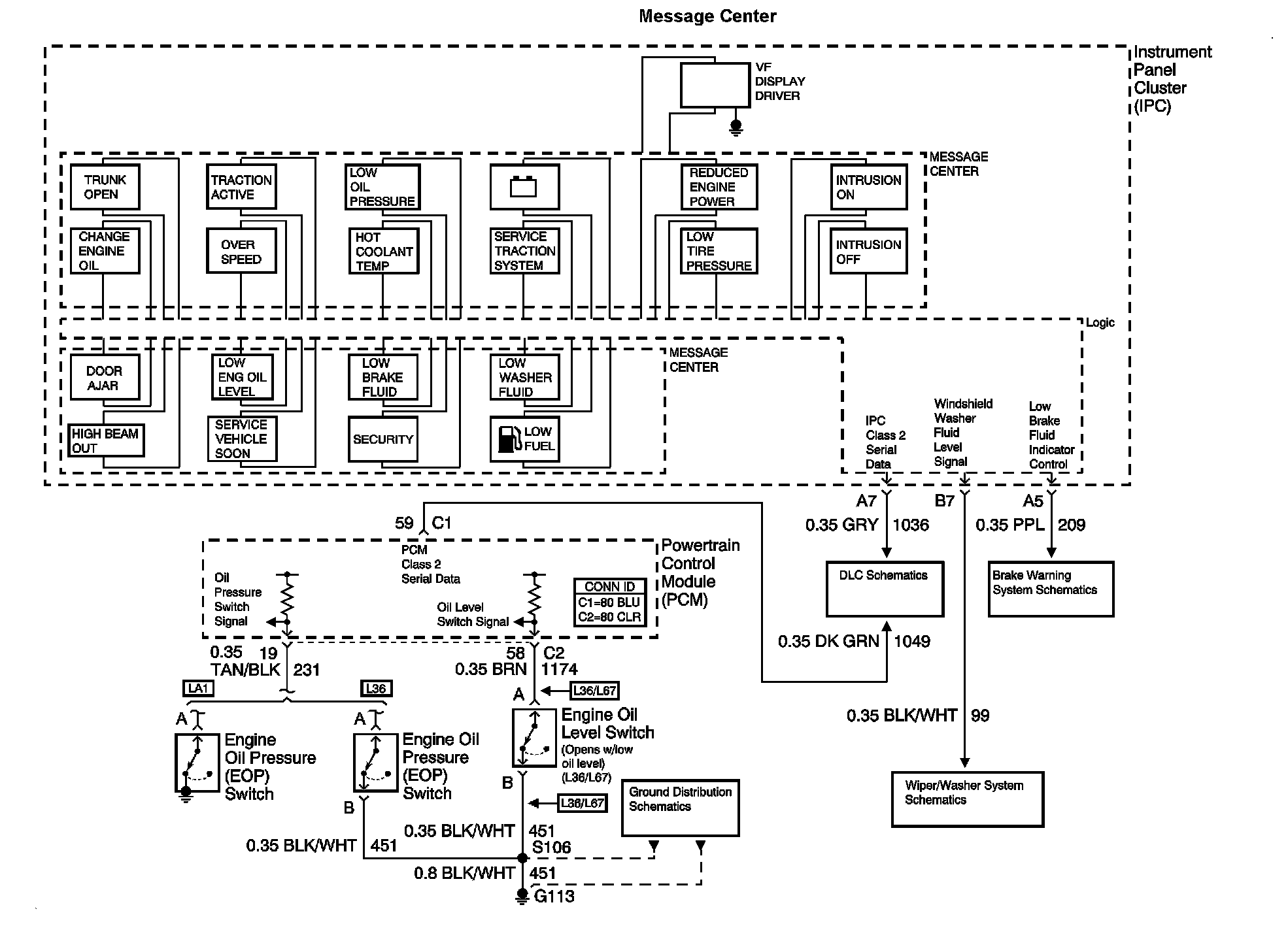

Instrument Cluster Diagram 1:




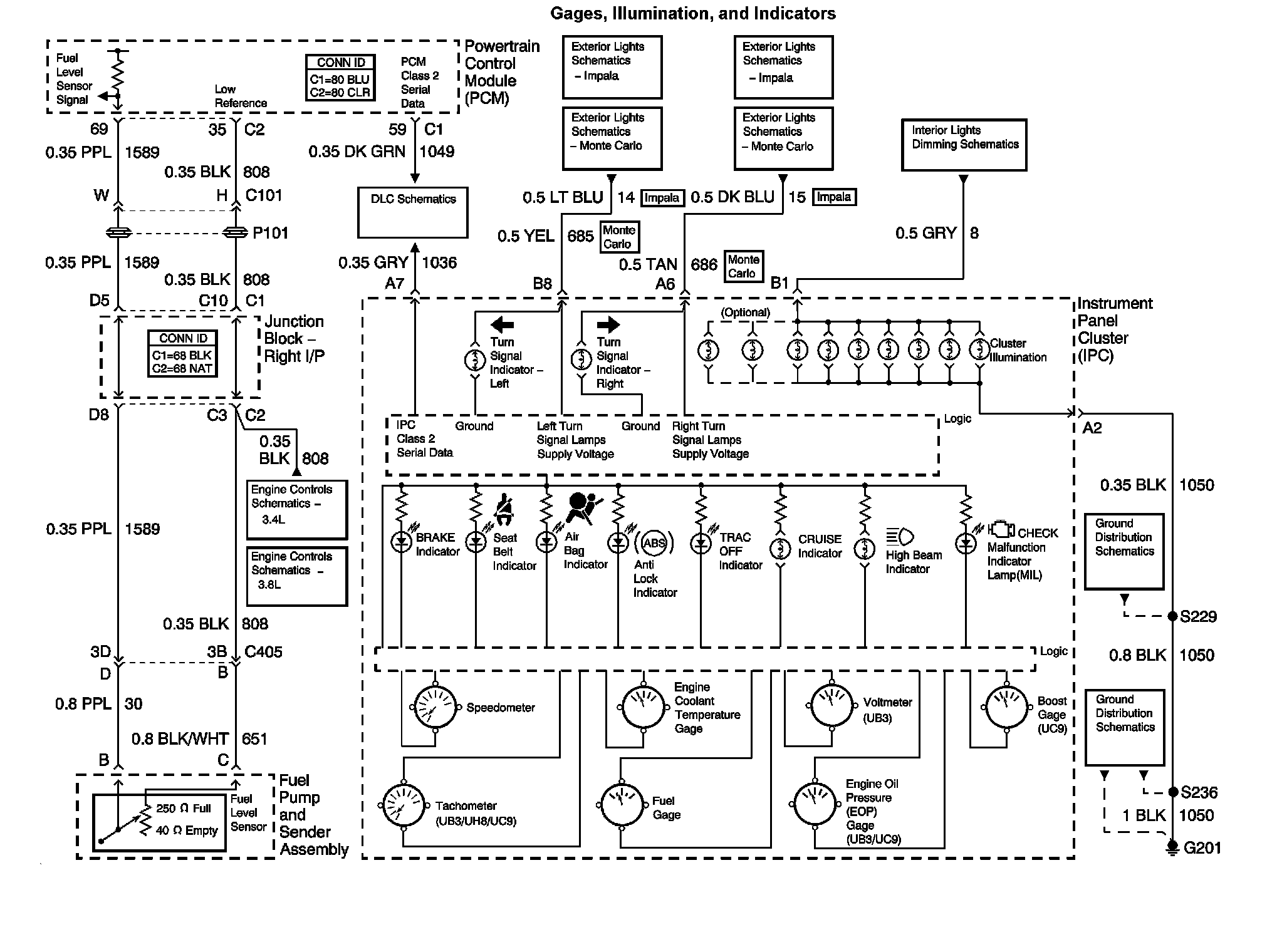

Instrument Cluster Diagram 2:

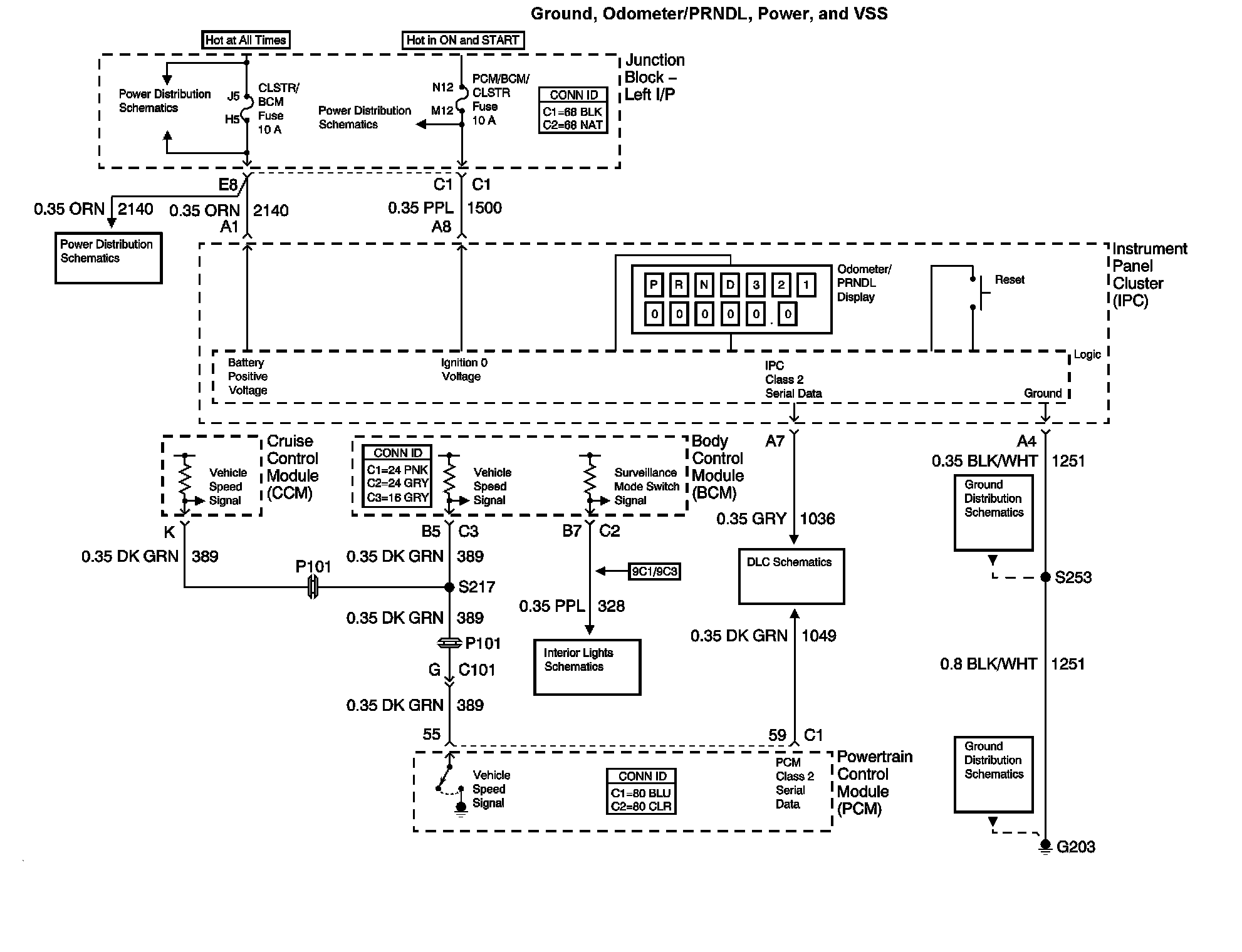

Instrument Cluster Diagram 3:
