Temperature Display Inaccurate or Inoperative

DRIVER INFORMATION CENTER (DIC) TEMPERATURE DISPLAY INACCURATE OR INOPERATIVE

TEST DESCRIPTION

Steps 1 - 2:

Steps 3 - 6:

Steps 7 - 10:

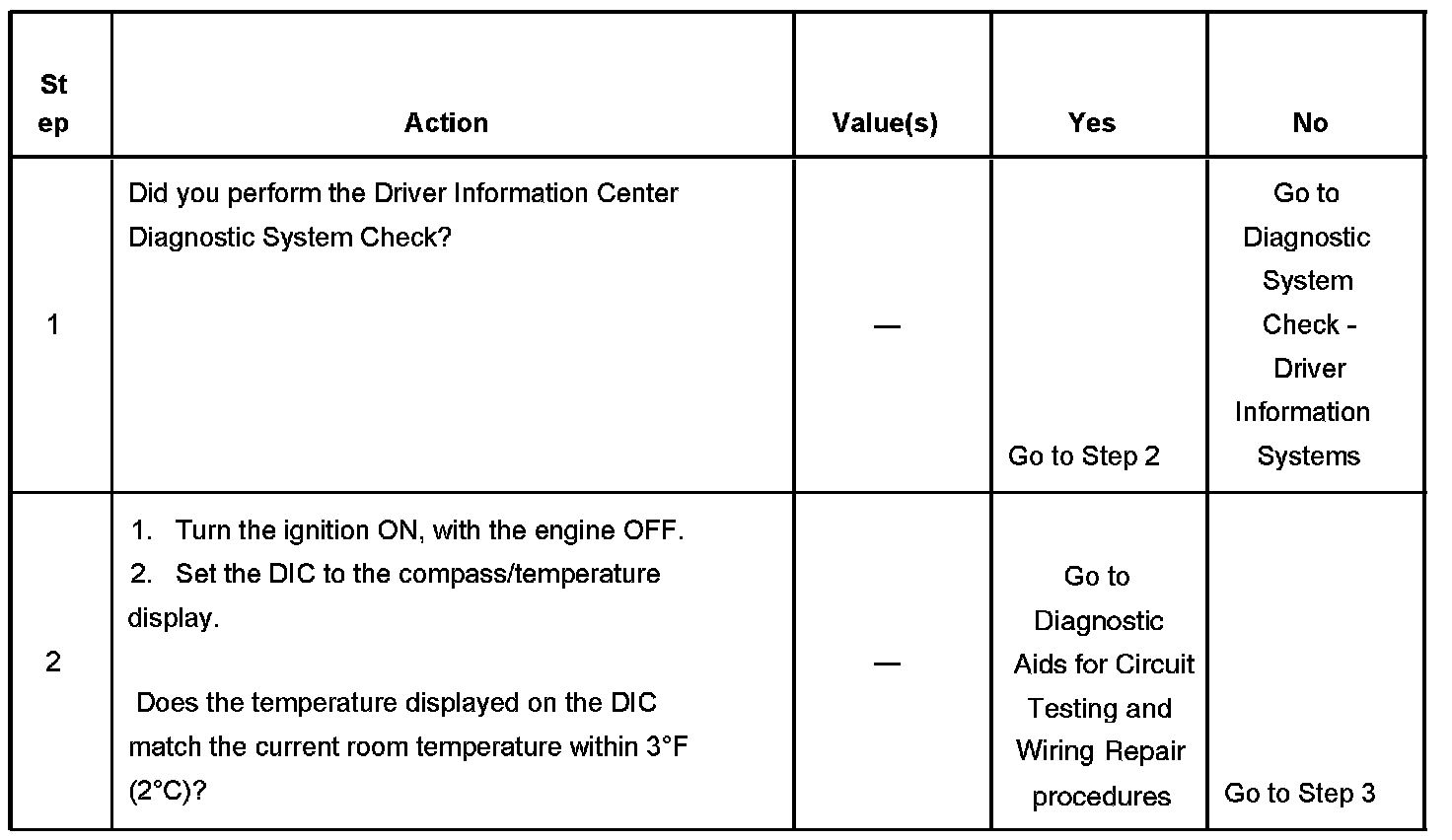

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a high resistance in the signal circuit and the ground circuit of the ambient air temperature sensor.
10. DTCs may be set in the DIC when you perform this diagnostic table.
