Courtesy Lamp: Service and Repair

COURTESY LAMP REPLACEMENT - INSTRUMENT PANEL

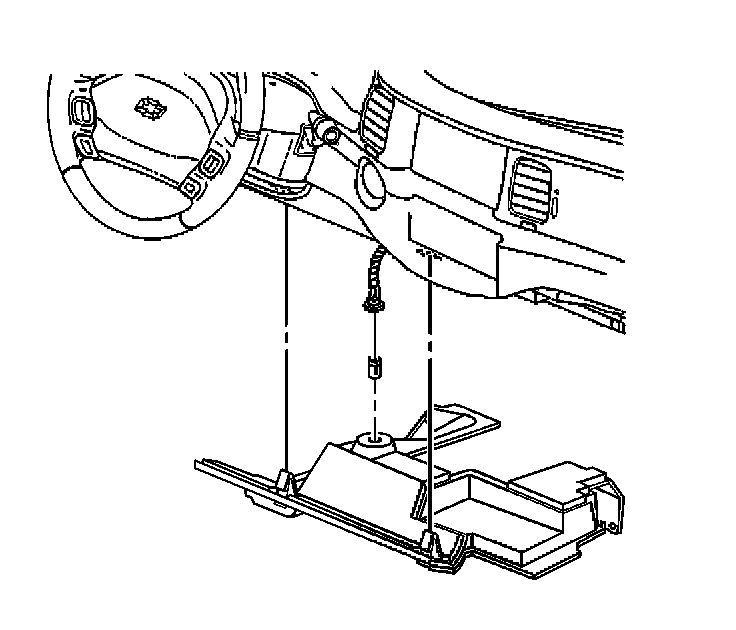

REMOVAL PROCEDURE




1. Remove the appropriate instrument panel insulator.
2. Remove the instrument panel courtesy lamp socket, turning counterclockwise.
3. Remove the bulb from the instrument panel courtesy lamp socket.

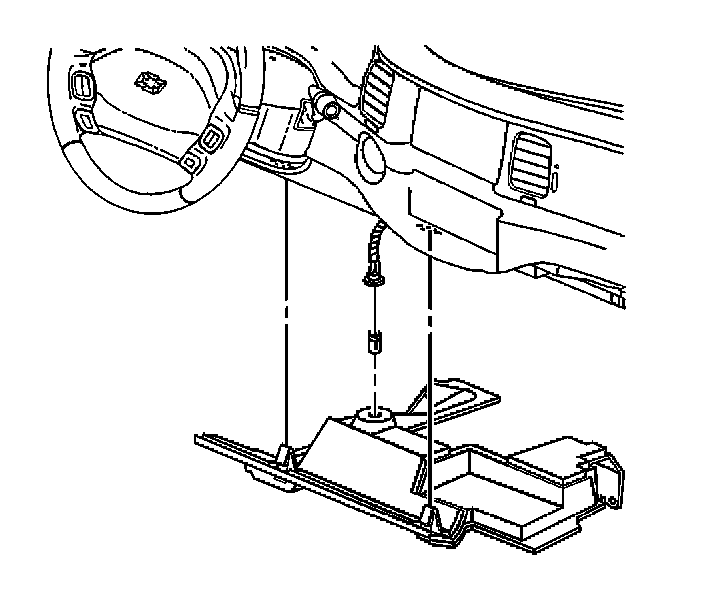

INSTALLATION PROCEDURE




1. Install the bulb to the instrument panel courtesy lamp socket.
2. Install the instrument panel courtesy lamp socket turning clockwise.
3. Install the instrument panel insulator.
