Horn: Service and Repair
HORN REPLACEMENTREMOVAL PROCEDURE
1. Open the hood.
2. Remove the right headlamp.
3. Disconnect the horn electrical connector.
4. Remove the horn bracket bolt.
5. Remove the horn from the frame rail extension.
INSTALLATION PROCEDURE

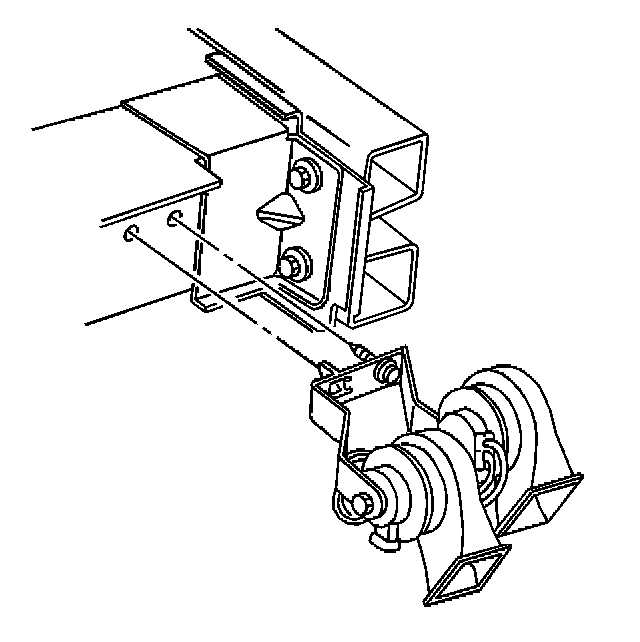

1. Position the horn to the frame rail extension; insert the horn anti-rotation tab into the slot on the frame rail.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the horn bracket bolt.
Tighten
Tighten the bolt to 15 N.m (11 lb ft).
3. Connect the horn electrical connector.
4. Install the right headlamp.
5. Close the hood.
