Home >> Chevrolet >> 2004 >> Monte Carlo V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

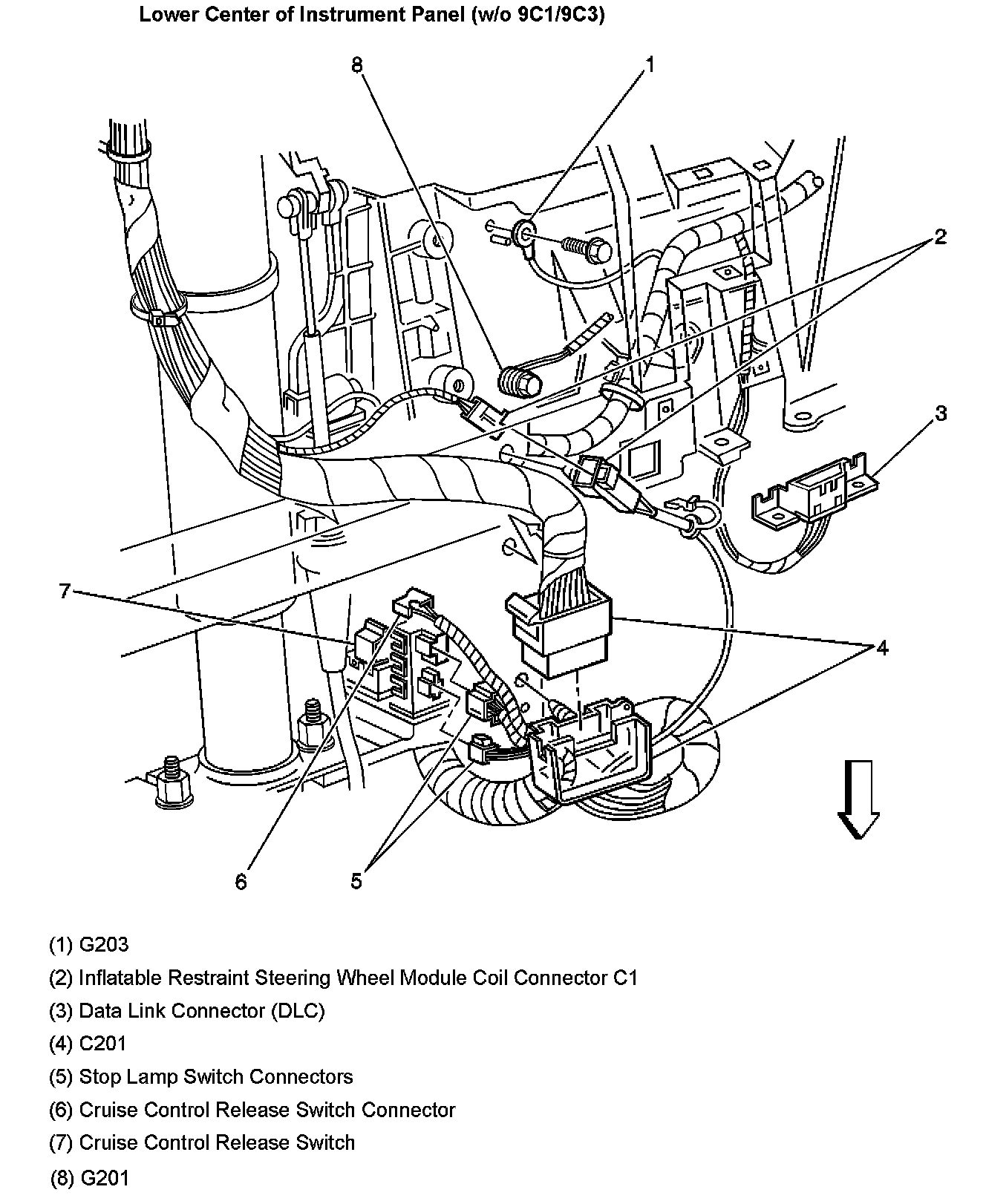

Lower Center Of Instrument Panel (Without RPO Code 9C1/9C3):
