Electrical - The Vehicle's Horn Is Inoperative
Bulletin No.: 06-08-54-001ADate: November 01, 2006
TECHNICAL
Subject:
Horn Inoperative Due To Water Ingestion (Install Splash Shield On Replacement Horn)
Models:
2004-2006 Chevrolet Impala, Monte Carlo
Supercede:
This bulletin is being revised to add the 2006 model year. Please discard Corporate Bulletin Number 06-08-54-001 (Section 08 - Body and Accessories).
Condition
Some customers may comment on an inoperative horn.
Cause
This condition may be caused by water ingestion into the horn.
Correction
Technicians are to install a new horn equipped with a splash shield using the following procedure:
Remove the inoperative horn. Refer to the Horn Replacement procedure in SI.
Install a splash shield, P/N 89046906, on the new horn.
Install the new horn so that it is turned approximately 90° from its original orientation. Position the opening of the new horn so that it faces toward the front of the vehicle. This will help prevent the water intrusion. Use the proper electrical connector that is supplied in the horn service kit.
Test the operation of the new horn.

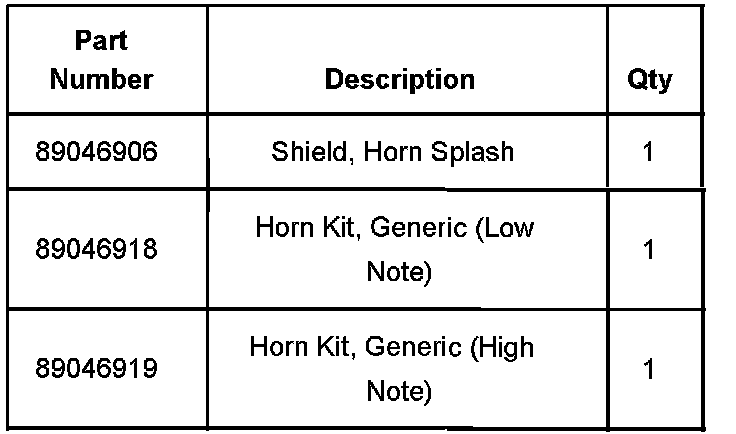

Parts Information

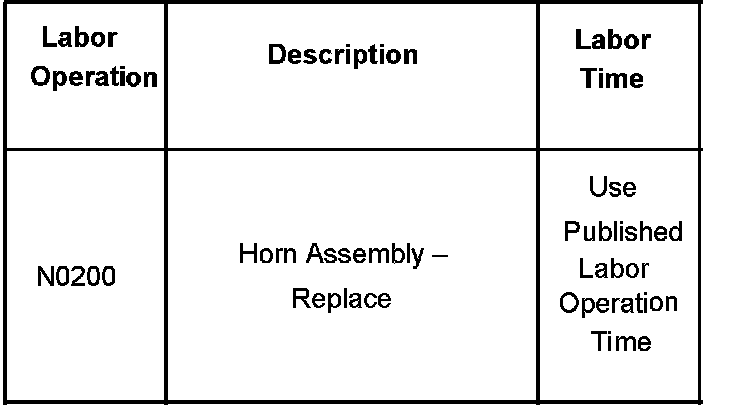

Warranty Information
For vehicles repaired under warranty, use the table.
