Recall - Front Brake Caliper Tightening Torque: Overview
File In Section: Product RecallsBulletin No.: 04049
Date: June, 2004
PRODUCT SAFETY RECALL
SUBJECT:
FRONT BRAKE CALIPER BOLT TORQUE
MODELS:
2004 CHEVROLET IMPALA, MONTE CARLO
2004 PONTIAC GRAND PRIX
CONDITION
General Motors has decided that a defect, which relates to motor vehicle safety, exists in certain 2004 model year Chevrolet Impala and Monte Carlo, and Pontiac Grand Prix vehicles. Some of these vehicles may have left and right front wheel assemblies in which the two bolts that attach the front brake caliper to the steering knuckle were not tightened adequately. If too much movement occurs between the caliper bracket and knuckle, the bolt(s) may back out or fracture. Depending on whether one or both bolts back out or fracture, the result can be 1) locking of the affected wheel during braking and an abrupt steering input in the direction of the locked wheel, 2) reduced braking and noise from the affected wheel, or 3) severing of a brake hose, increased brake pedal travel, and reduced steering control. If this were to occur, it could result in a vehicle crash without prior warning.
CORRECTION
Dealers are to tighten both bolts to the specified torque.
VEHICLES INVOLVED

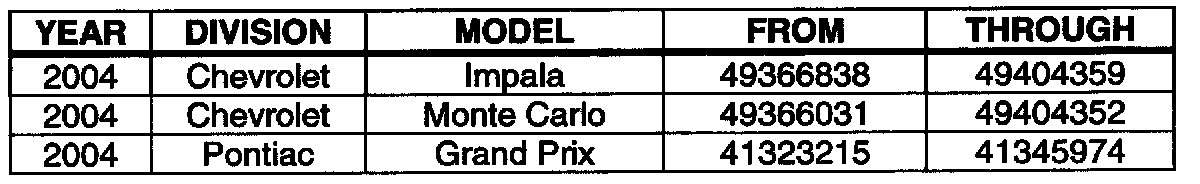

Involved are certain 2004 model year Chevrolet Impala and Monte Carlo, and Pontiac Grand Prix vehicles built within the VIN breakpoints shown.
IMPORTANT:
Dealers should confirm vehicle eligibility through GMVIS (GM Vehicle Inquiry System) prior to beginning recall repairs. [Not all vehicles within the above breakpoints may be involved.]
For US: For dealers with involved vehicles, a Campaign Initiation Detail Report containing the complete Vehicle Identification Number, customer name and address data has been prepared and will be loaded to the GM DealerWorld, Recall Information website. Dealers that have no involved vehicles currently assigned, will not have a report available in GM DealerWorld.
For Canada & IPC: For dealers with involved vehicles, a Campaign Initiation Detail Report containing the complete Vehicle Identification Number, customer name and address data has been prepared, and is being furnished to involved dealers. Dealers that have no involved vehicles currently assigned, will not receive a report with the recall bulletin.
The Campaign Initiation Detail Report may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this recall is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this report to the follow-up necessary to complete this recall.

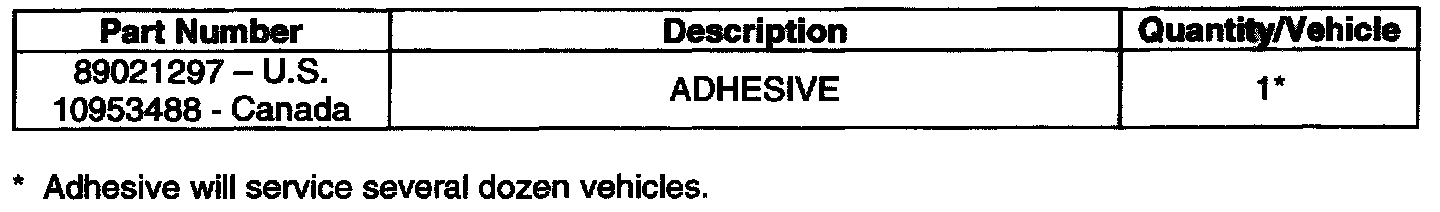

PARTS INFORMATION
Parts required to complete this recall are to be obtained from General Motors Service Parts Operations (GMSPO). Please refer to your "involved vehicles listing" before ordering parts.
Normal orders should be placed on a DRO = Daily Replenishment Order. In an emergency situation, parts should be ordered on a CSO Customer Special Order.
COURTESY TRANSPORTATION
The General Motors Courtesy Transportation program is intended to minimize customer inconvenience when a vehicle requires a repair that is covered by the New Vehicle Limited Warranty. The availability of courtesy transportation to customers whose vehicles are within the warranty coverage period and involved in a product recall is very important in maintaining customer satisfaction. Dealers are to ensure that these customers understand that shuttle service or some other form of courtesy transportation is available and will be provided at no charge. Dealers should refer to the General Motors Service Policies and Procedures Manual for Courtesy Transportation guidelines.
CLAIM INFORMATION
Submit a Product Recall Claim with the information shown.
CUSTOMER NOTIFICATION - For US and CANADA
General Motors will notify customers of this recall on their vehicle (see copy of customer letter shown in this bulletin).
CUSTOMER NOTIFICATION - For IPC
Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the sample letter.
DEALER RECALL RESPONSIBILITY - For US and IPC (US States, Territories, and Possessions)
The US National Traffic and Motor Vehicle Safety Act provides that each vehicle that is subject to a recall of this type must be adequately repaired within a reasonable time after the customer has tendered it for repair. A failure to repair within sixty days after tender of a vehicle is prima facie evidence of failure to repair within a reasonable time. If the condition is not adequately repaired within a reasonable time, the customer may be entitled to an identical or reasonably equivalent vehicle at no charge or to a refund of the purchase price less a reasonable allowance for depreciation. To avoid having to provide these burdensome remedies, every effort must be made to promptly schedule an appointment with each customer and to repair their vehicle as soon as possible. In the recall notification letters, customers are told how to contact the US National Highway Traffic Safety Administration if the recall is not completed within a reasonable time.
DEALER RECALL RESPONSIBILITY - ALL
All unsold new vehicles in dealers' possession and subject to this recall must be held and inspected/repaired per the service procedure of this recall bulletin before customers take possession of these vehicles.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is shown in this bulletin for your use in contacting customers. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this recall enters your vehicle inventory, or is in your dealership for service in the future, you must take the steps necessary to be sure the recall correction has been made before selling or releasing the vehicle.
