Home >> Chevrolet >> 2004 >> Monte Carlo V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - All Modes

Wipers Inoperative - All Modes

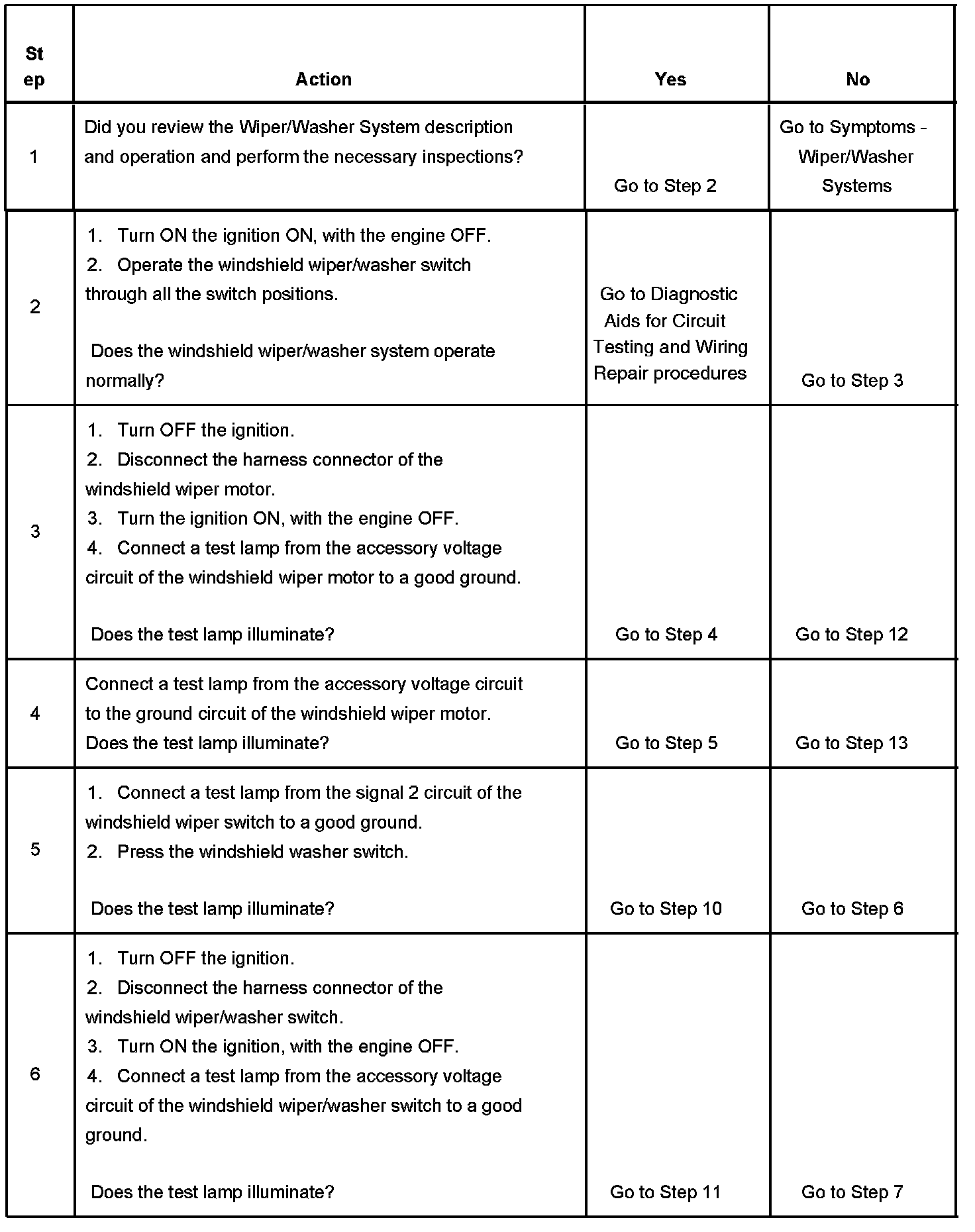

Steps 1 - 6:



Steps 7 - 13:

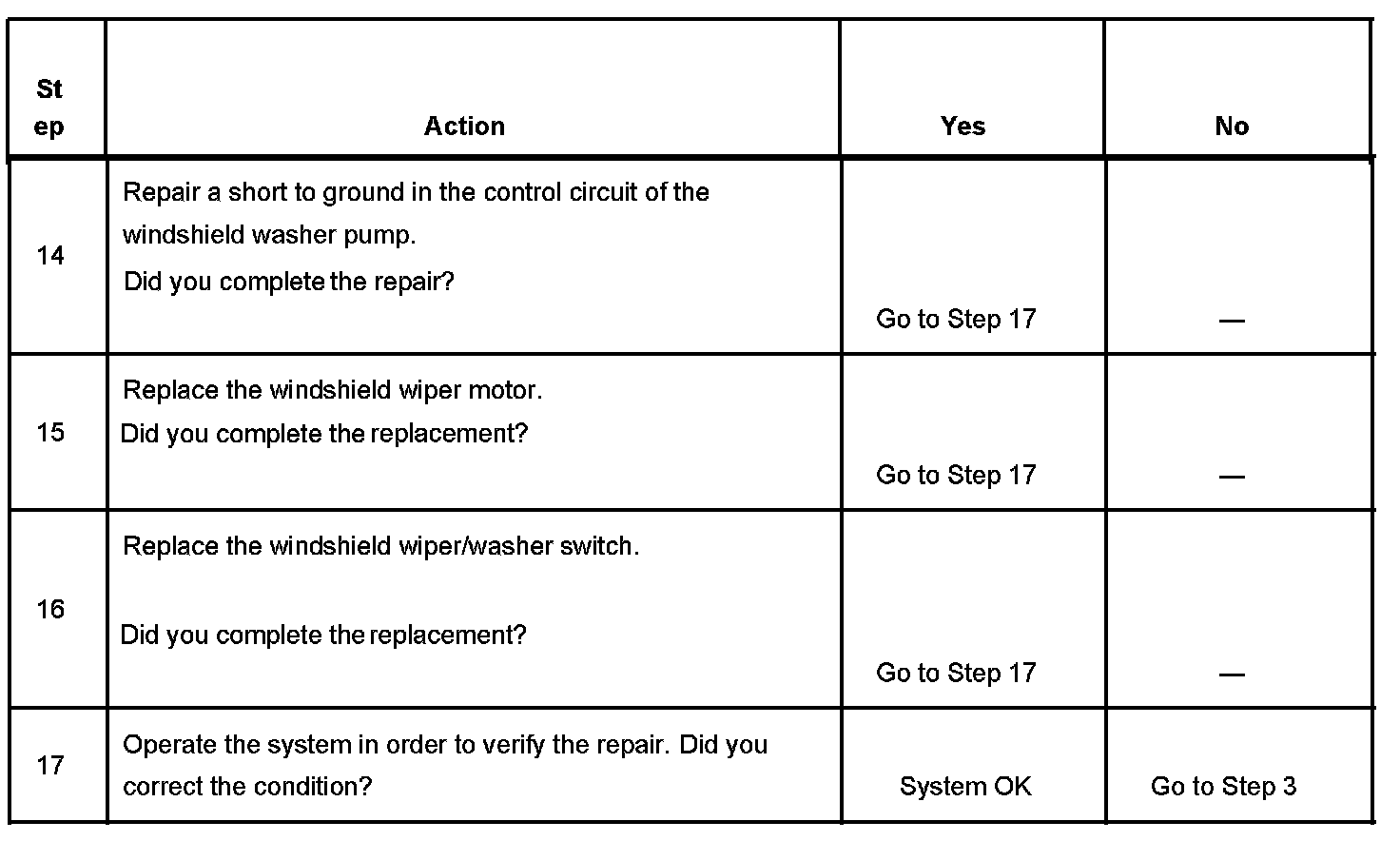

Steps 14 - 17:
