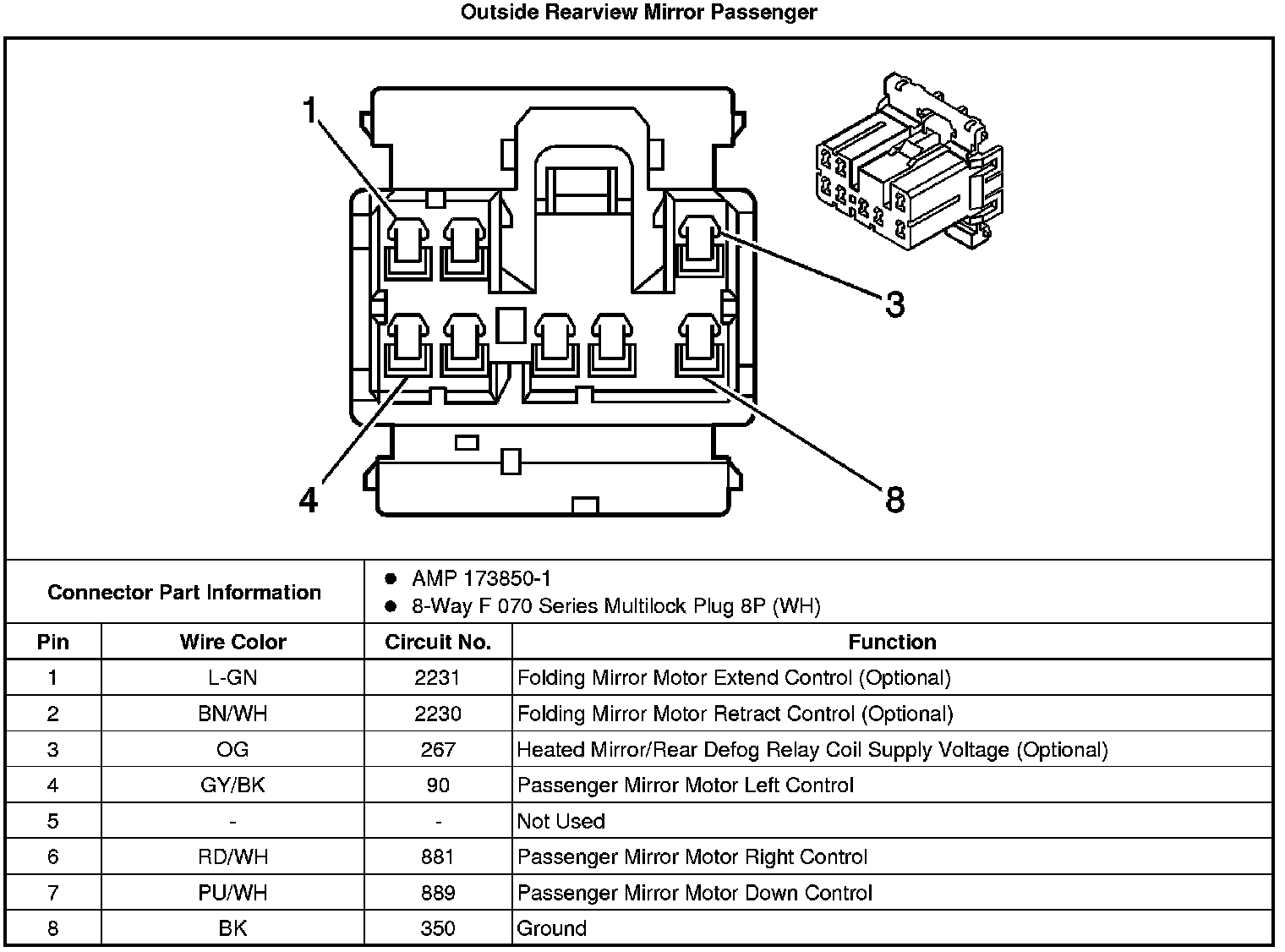

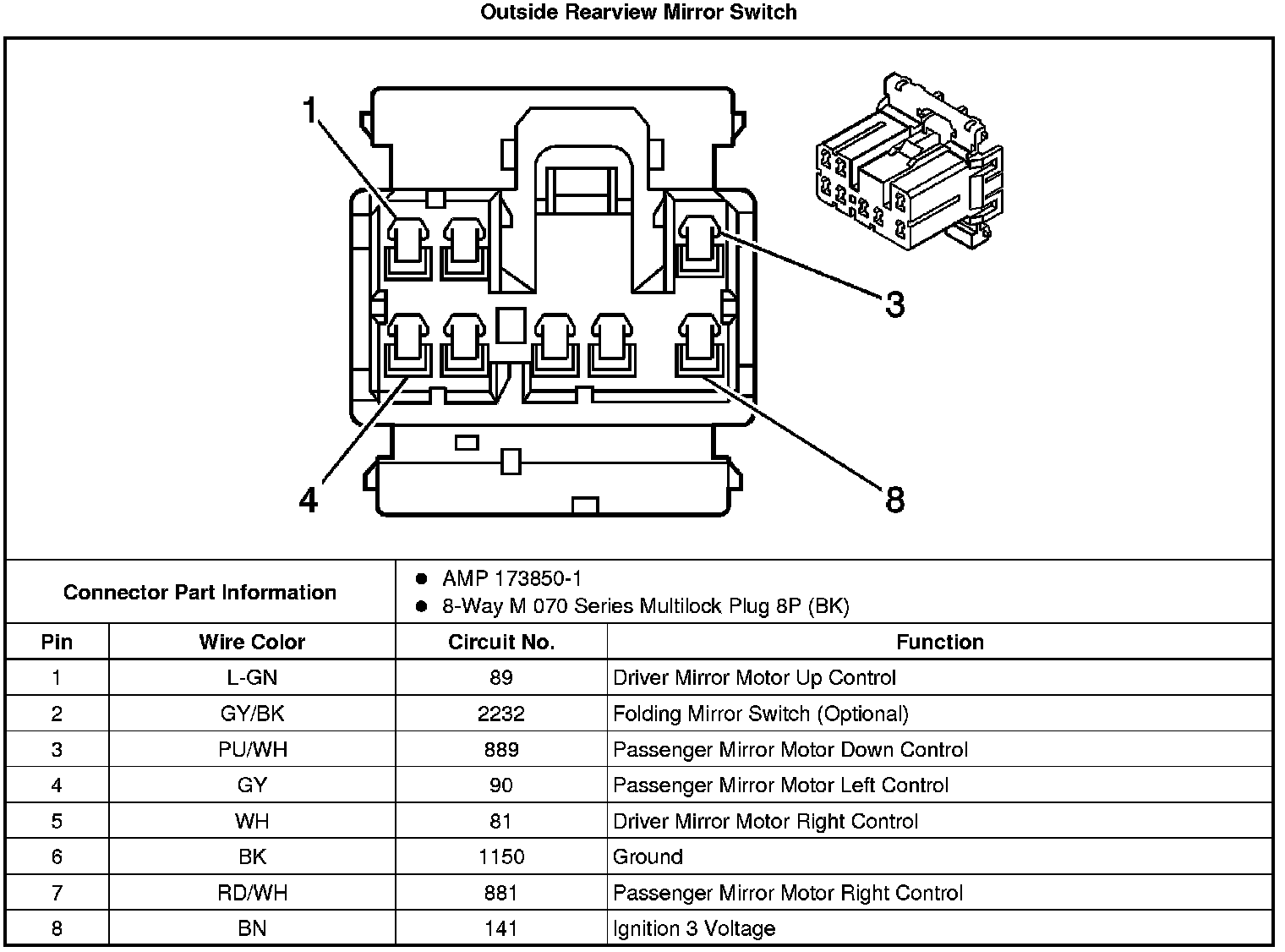

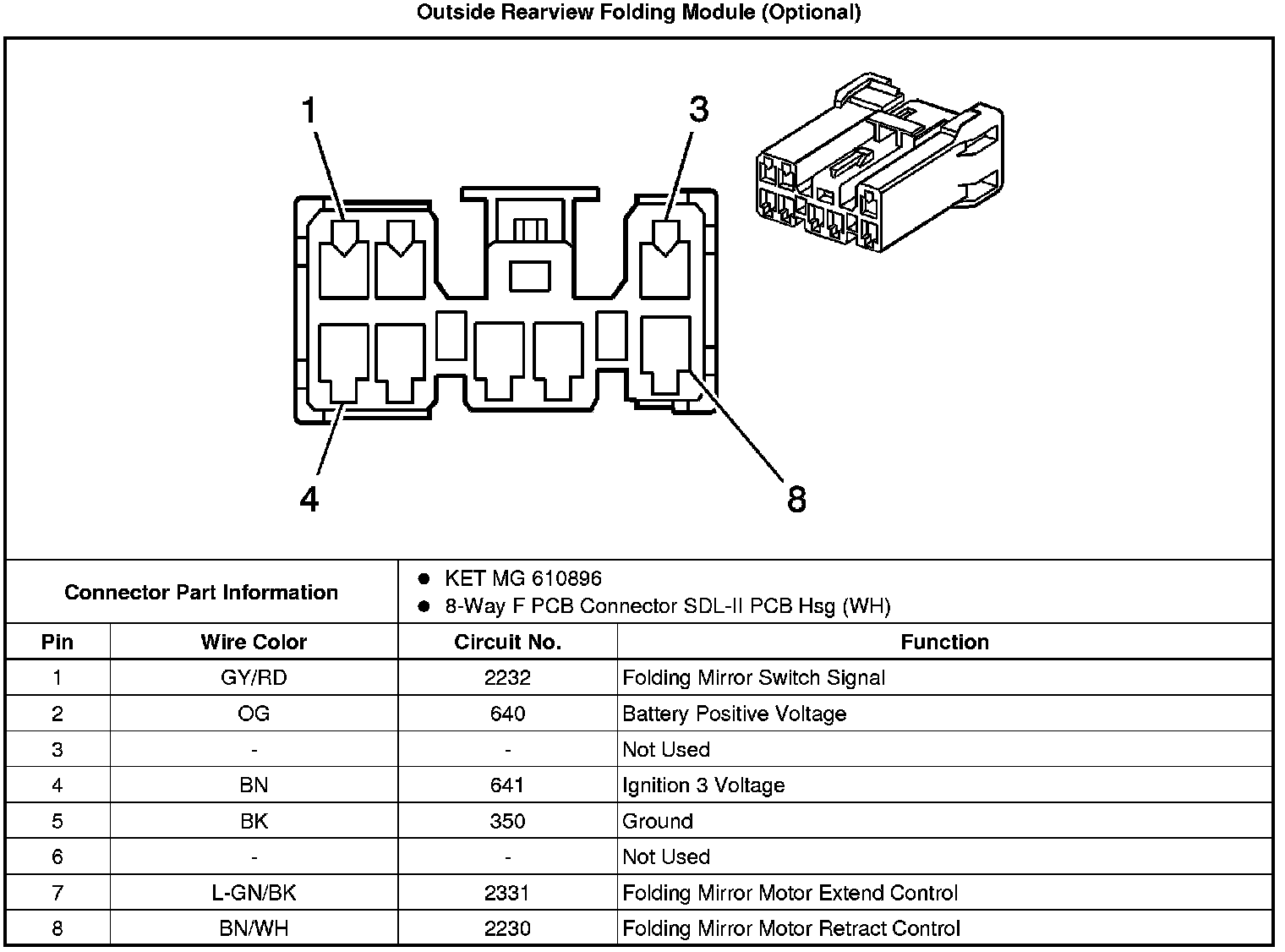

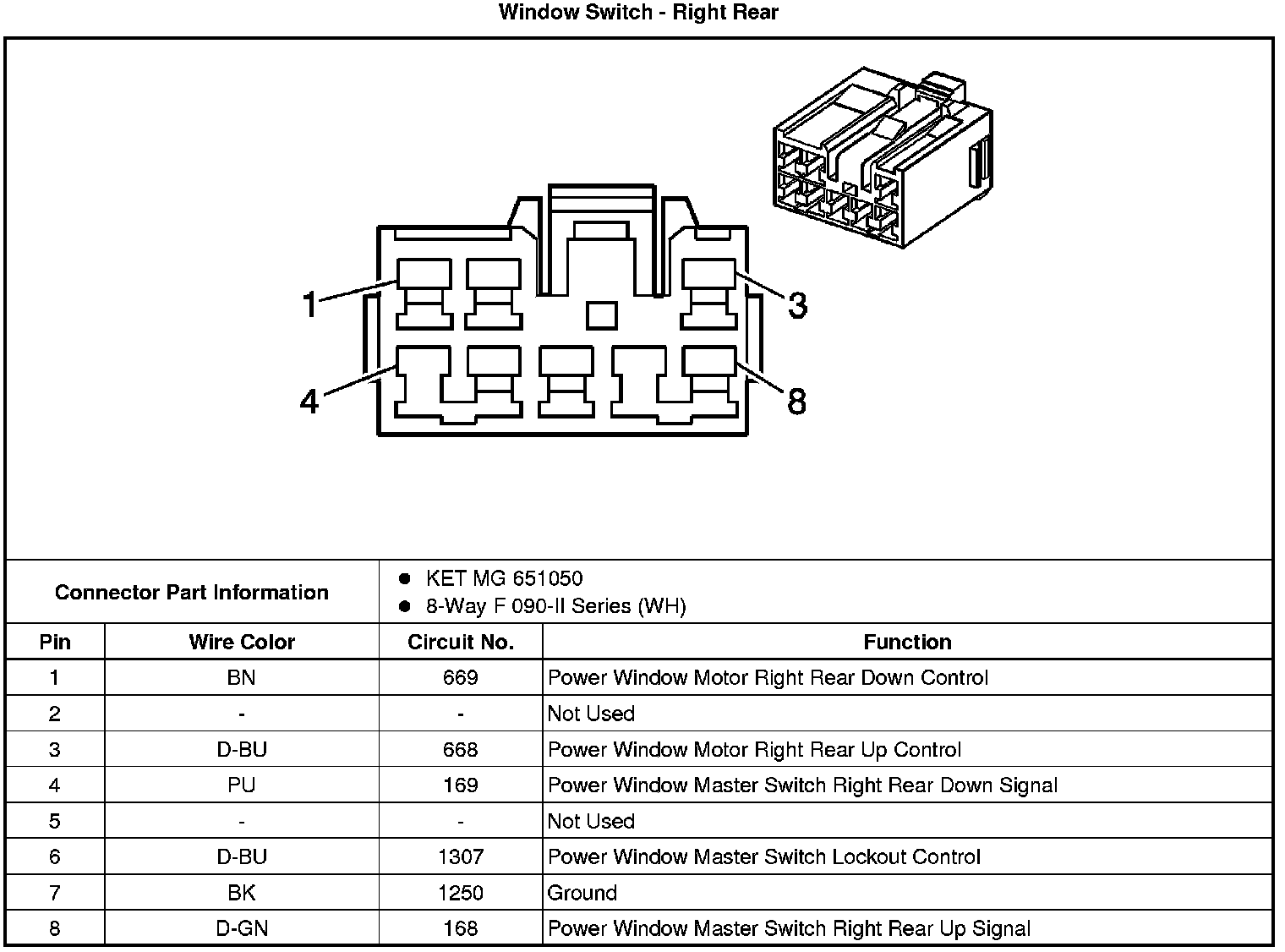

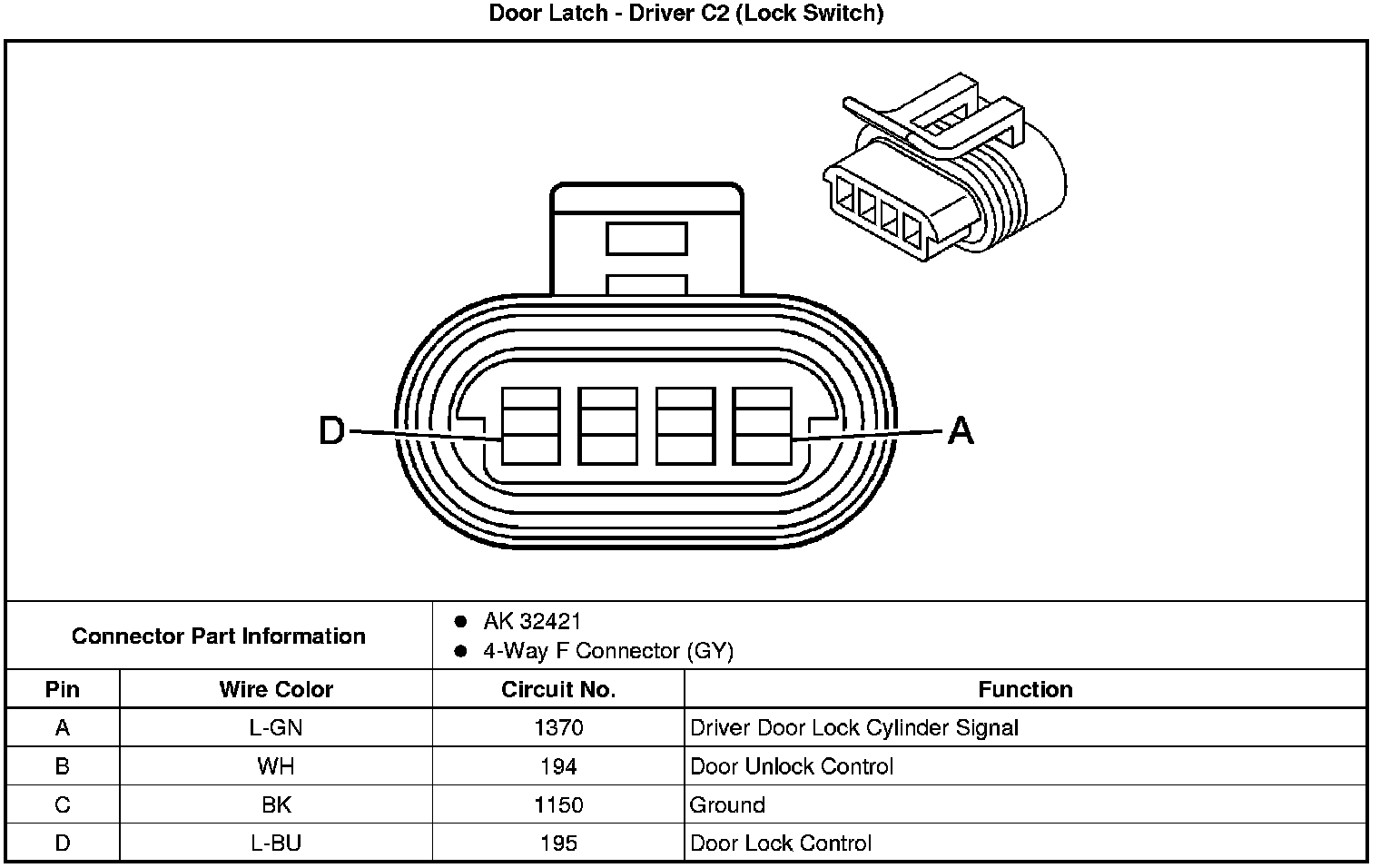

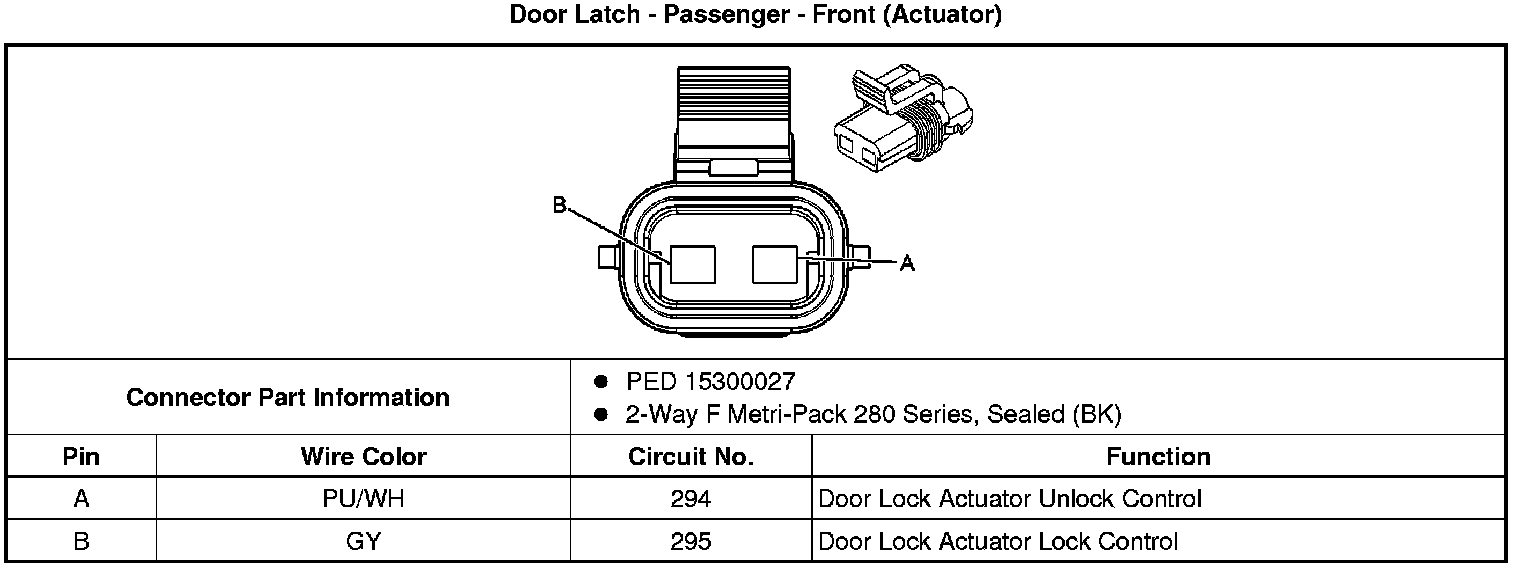

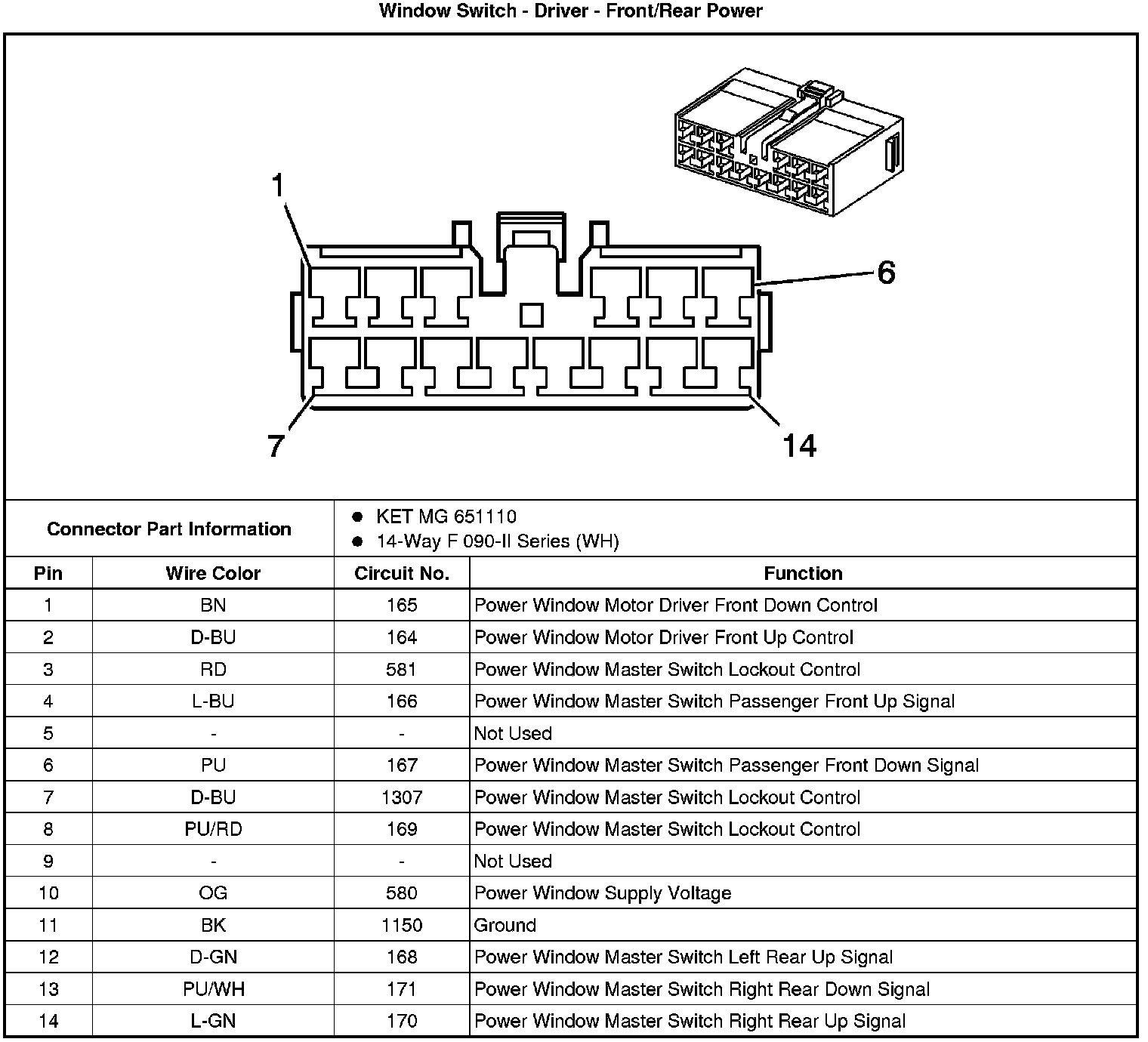

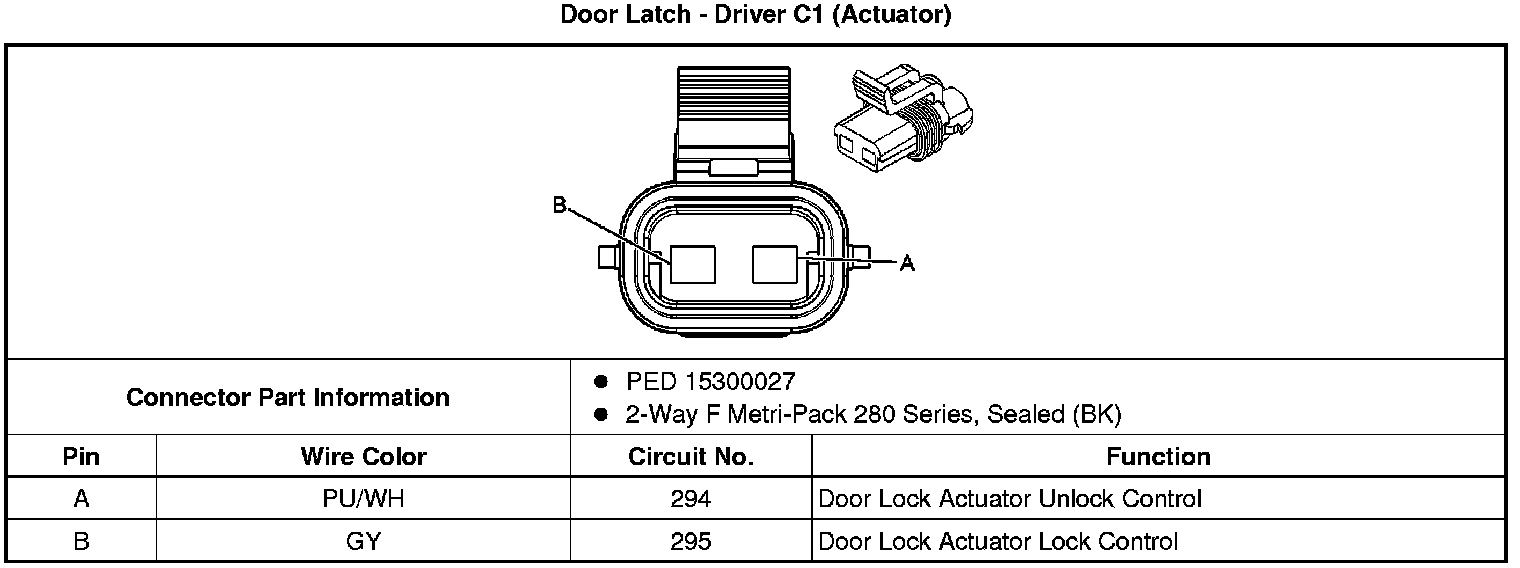

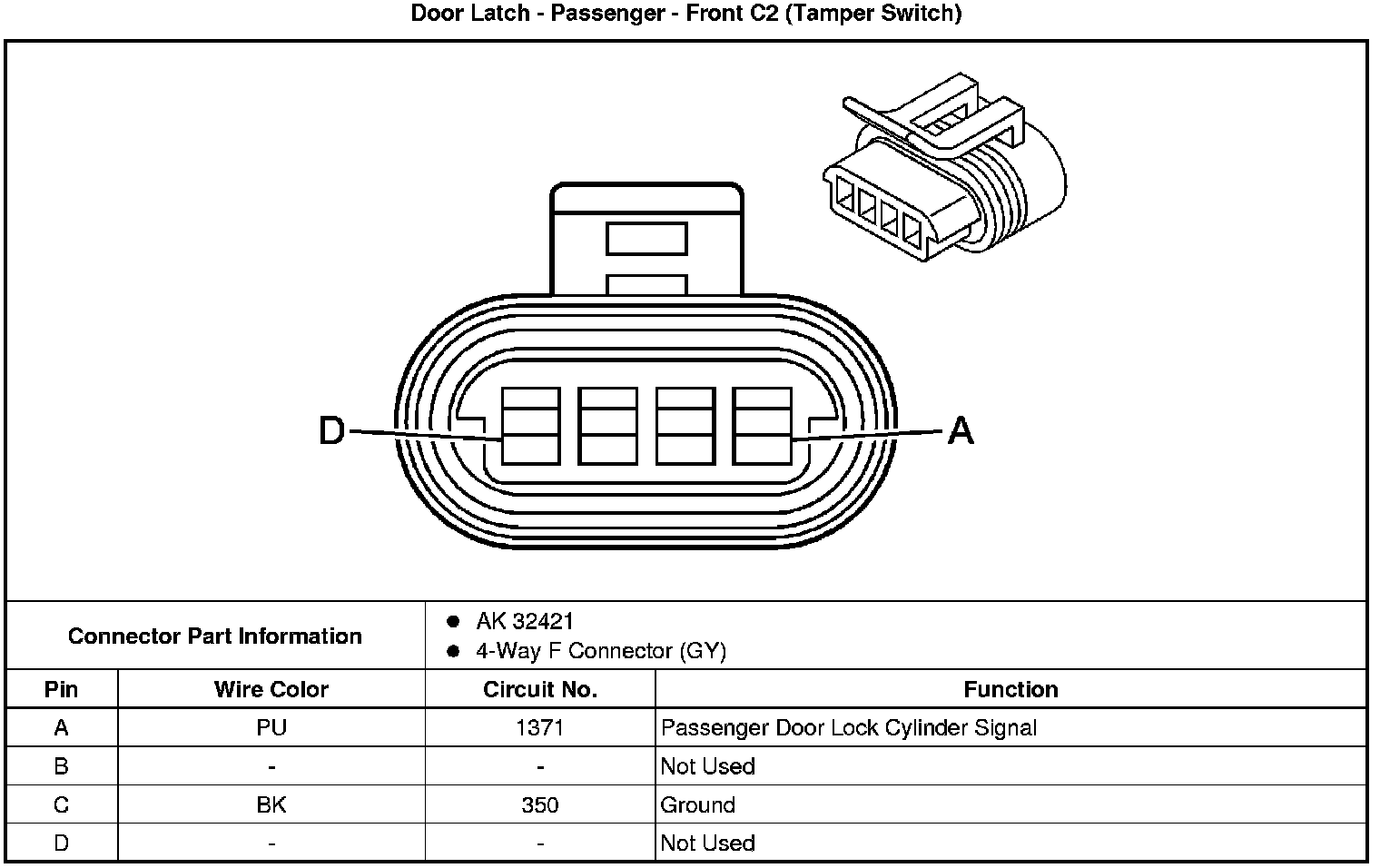

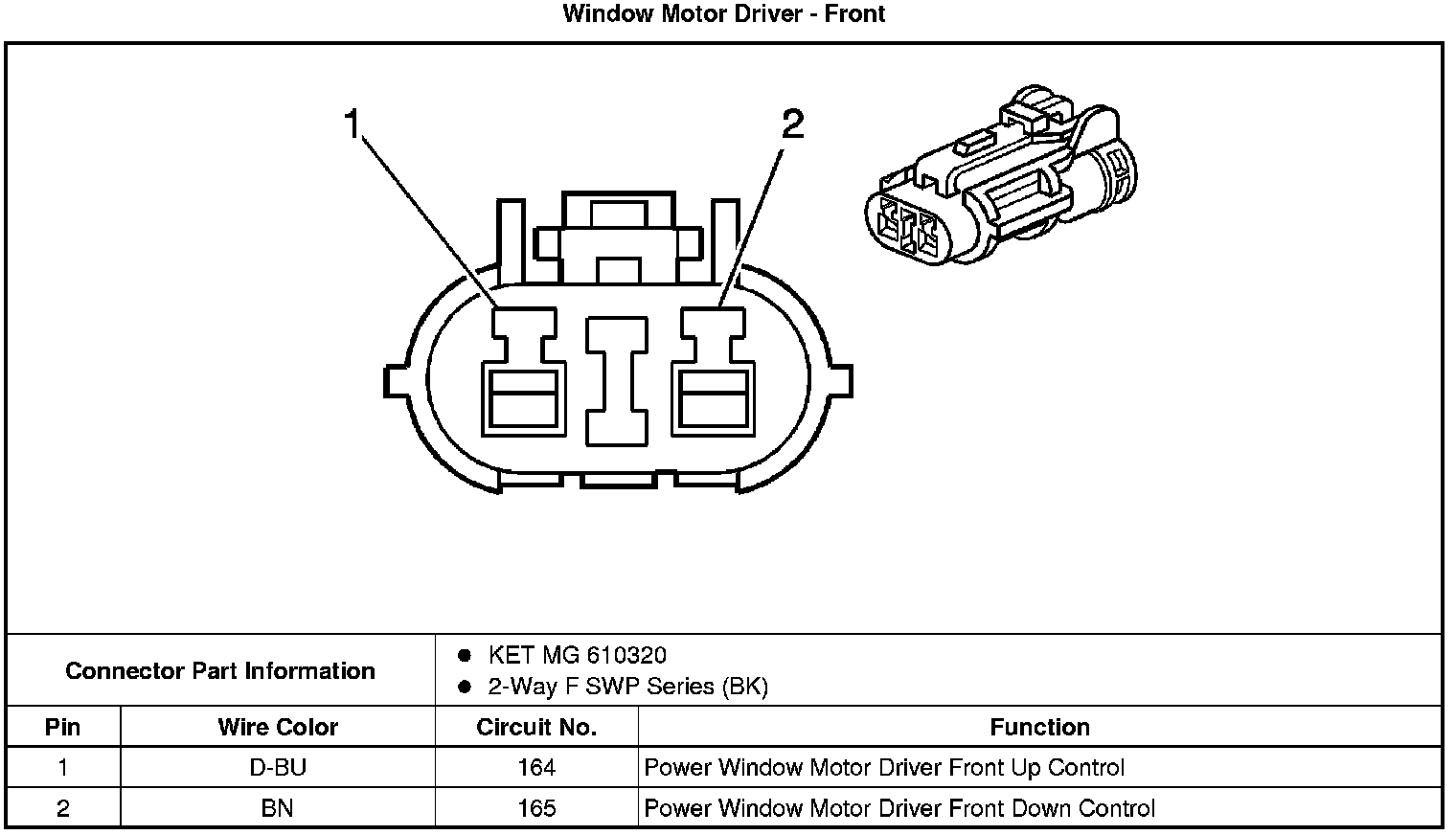

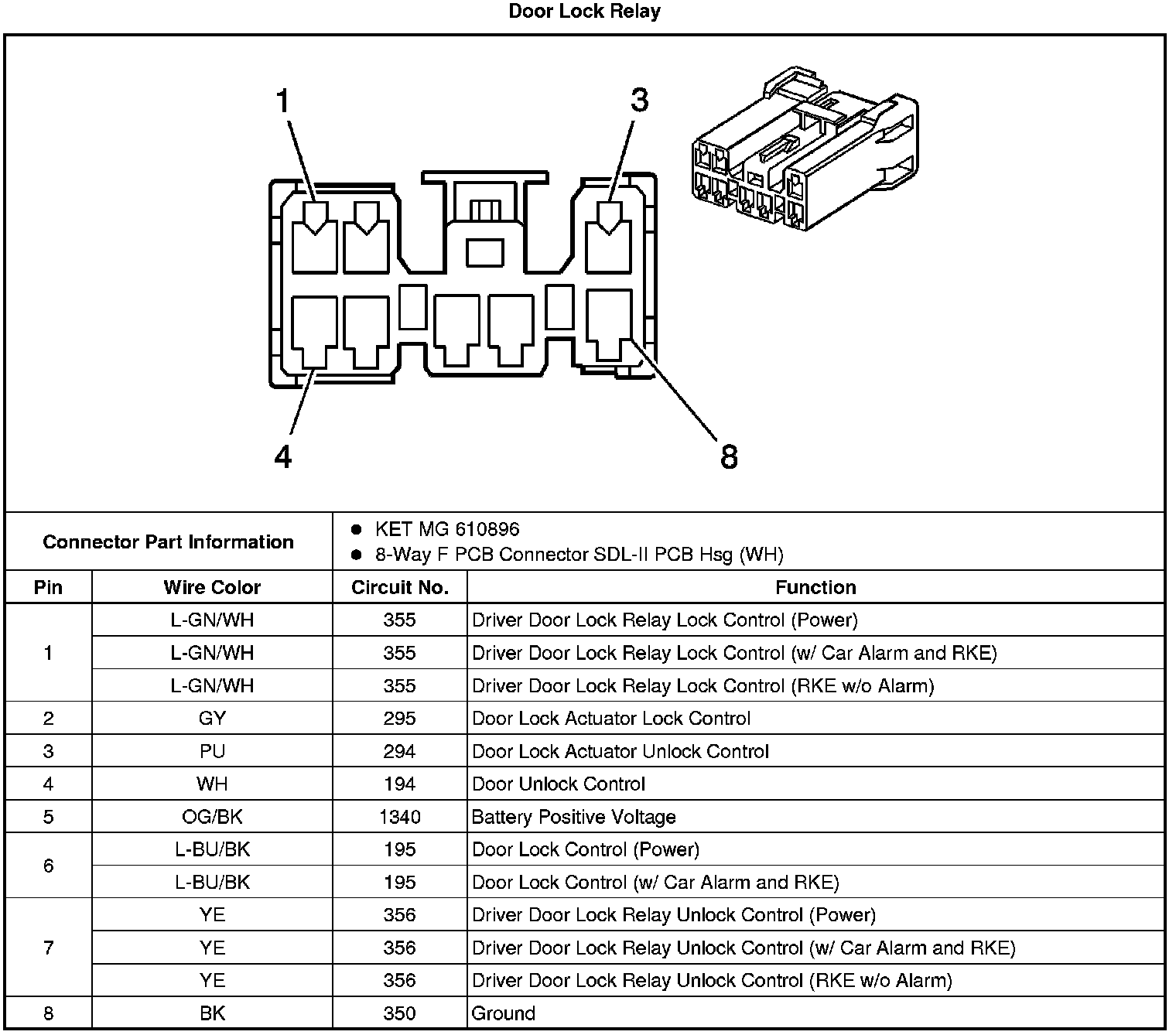

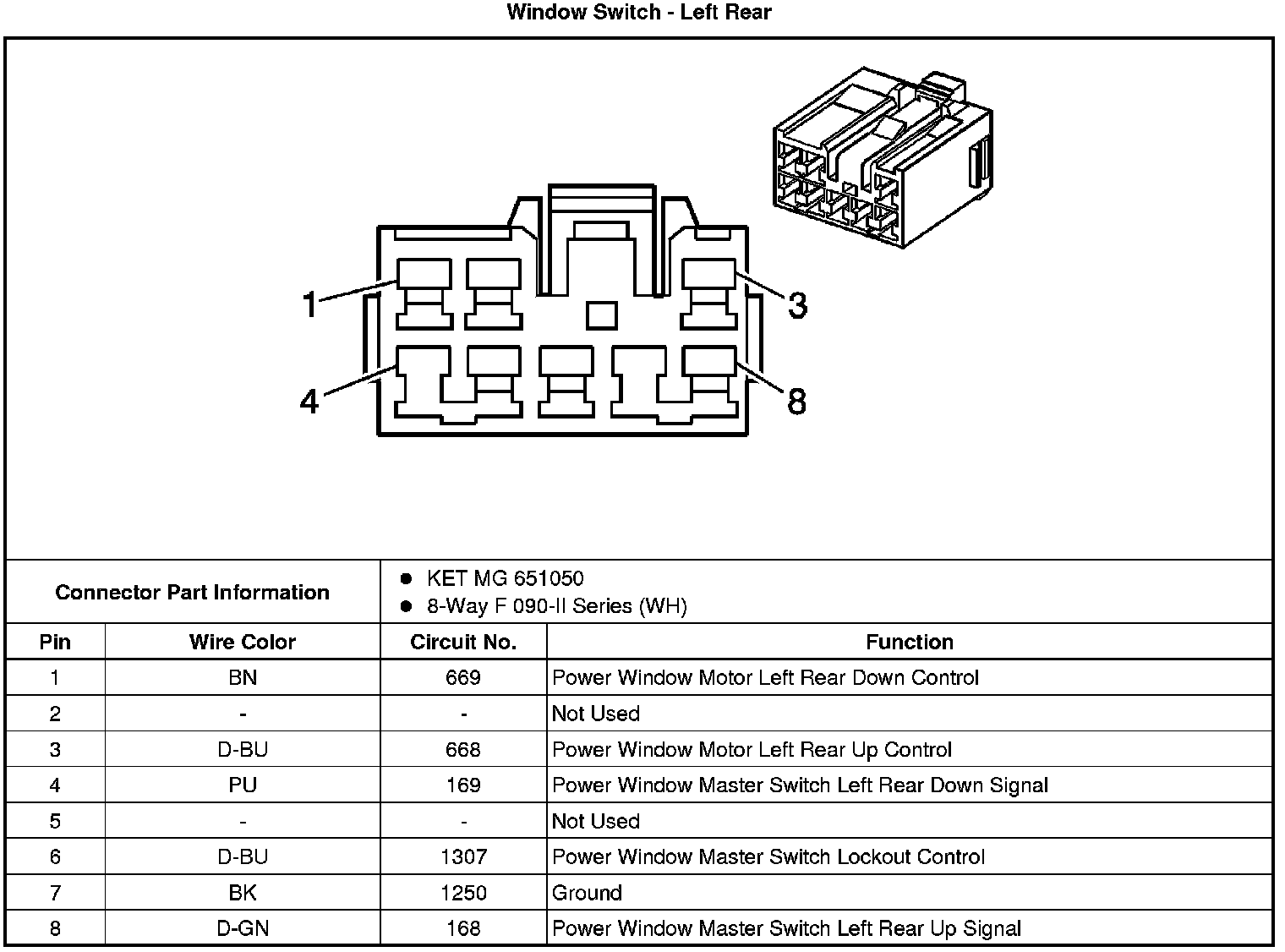

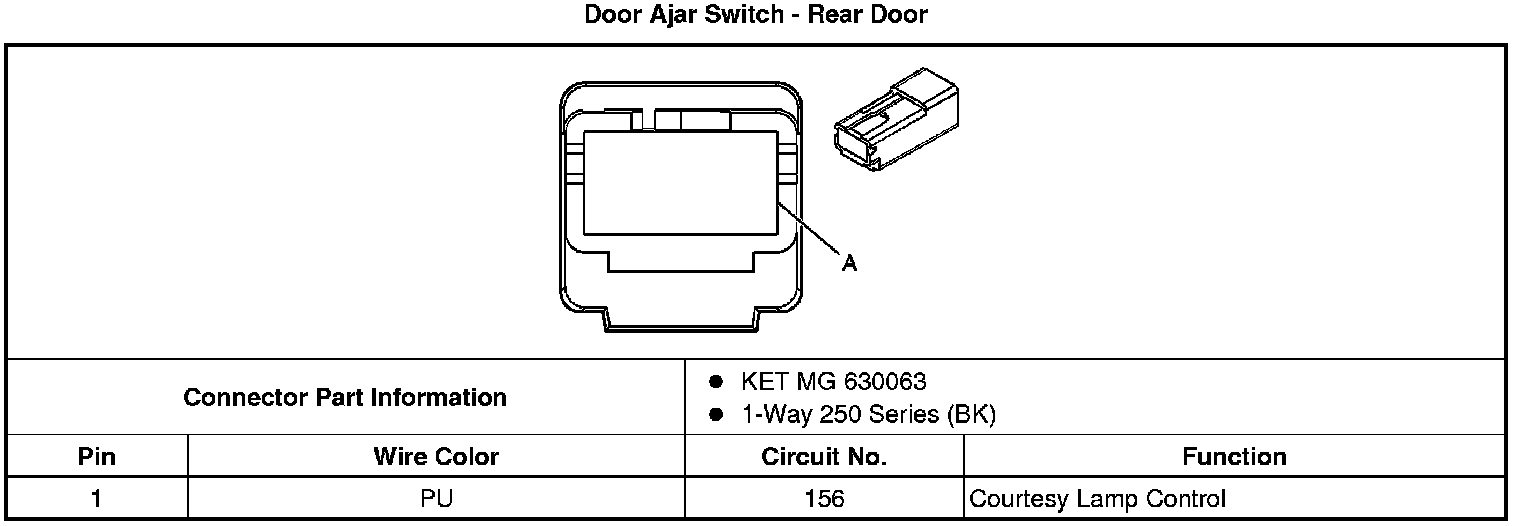

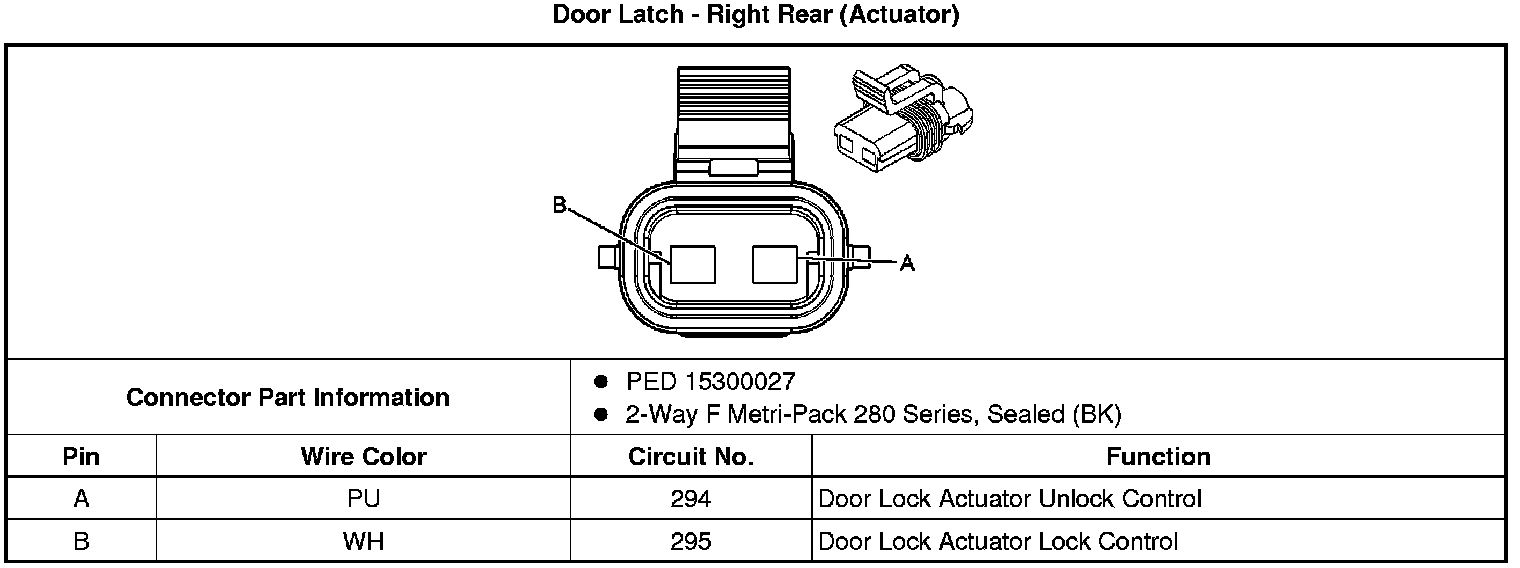

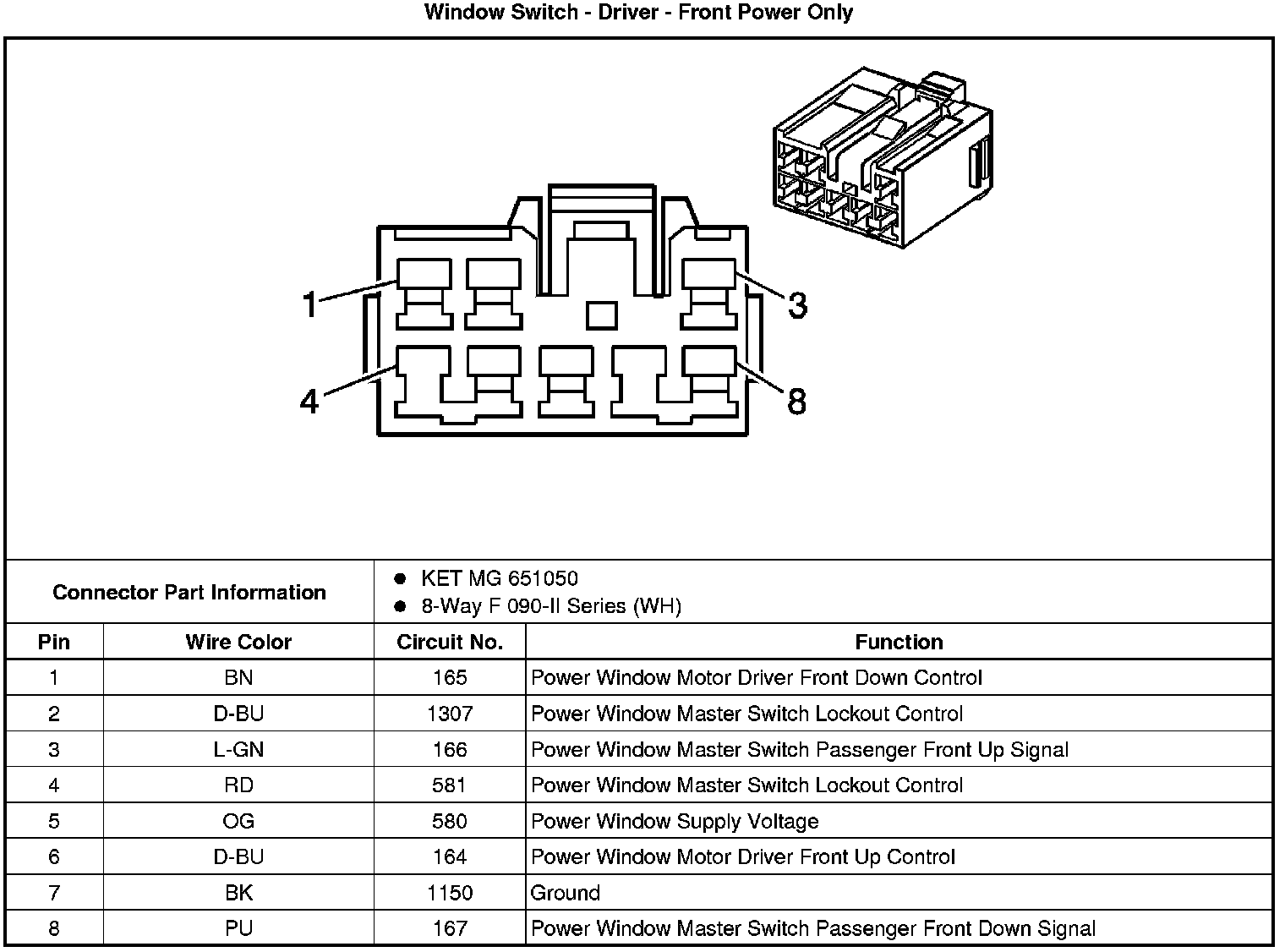

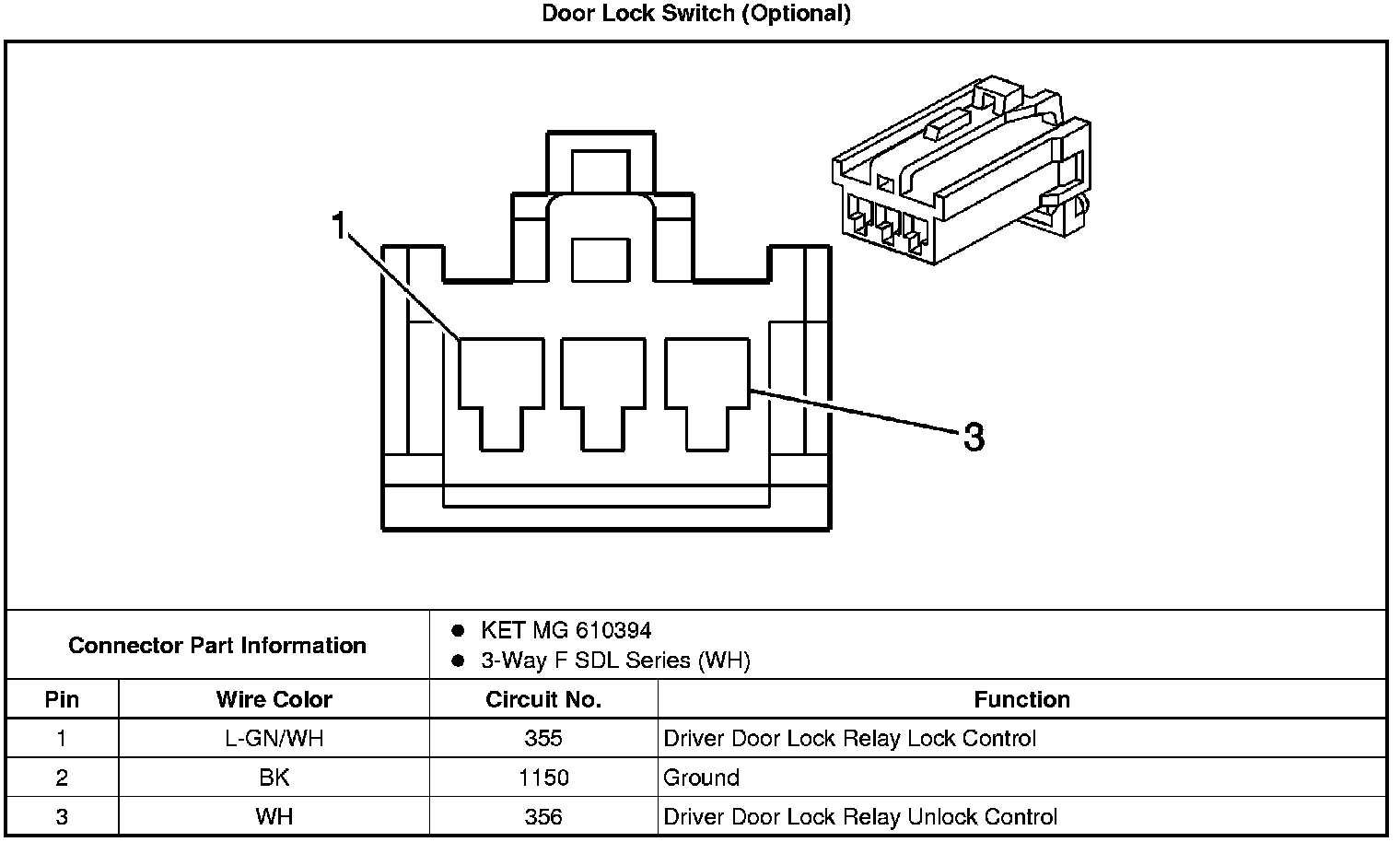

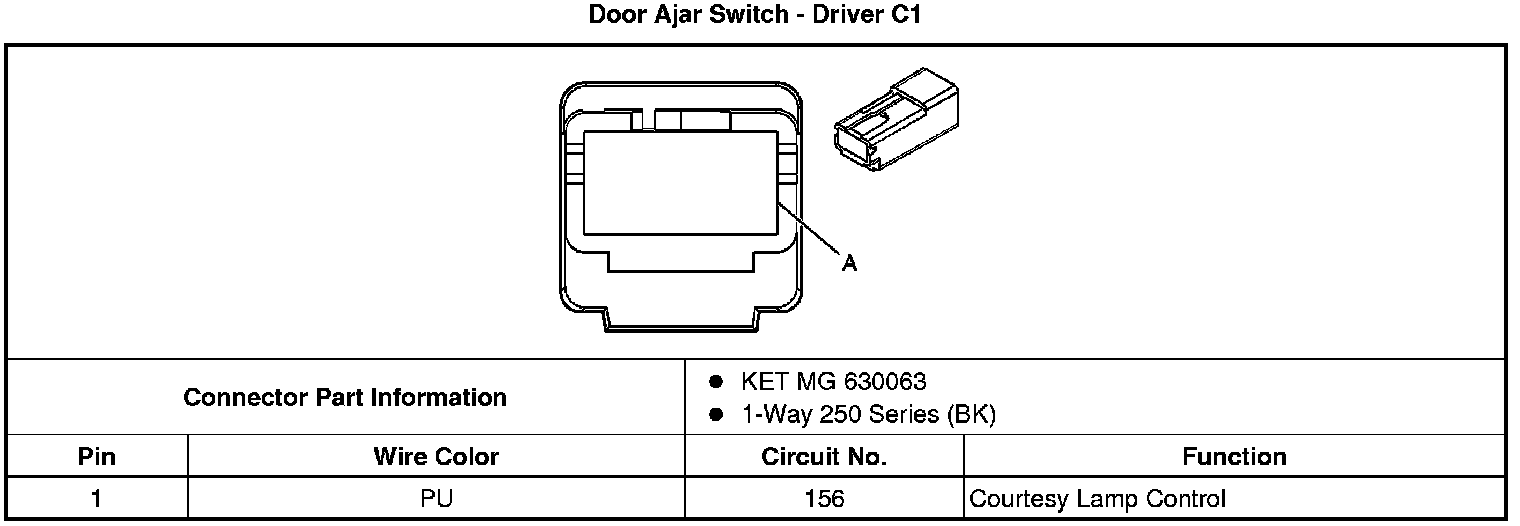

Power Door Systems Connector End Views

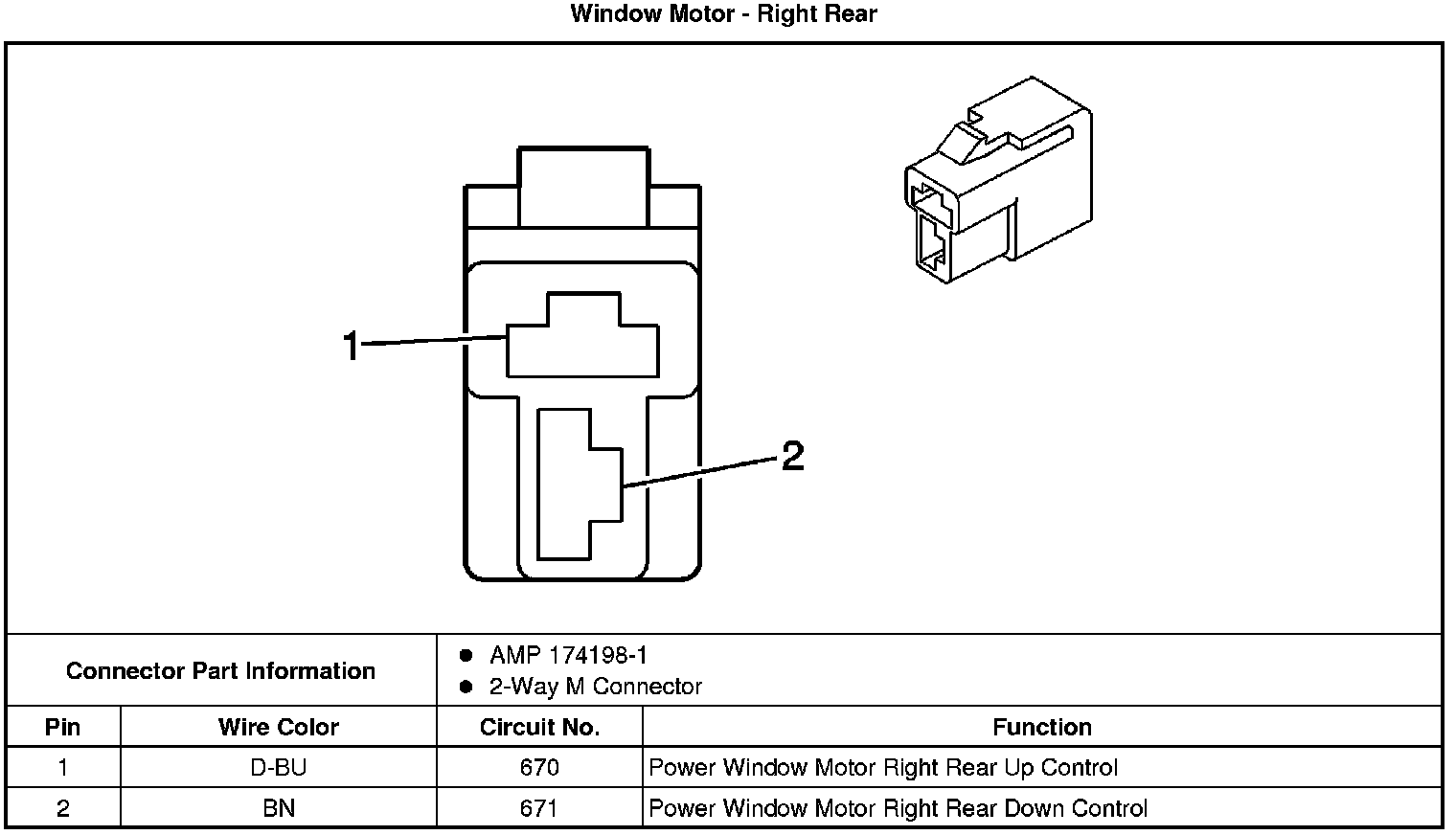

Power Door Systems Connector End Views

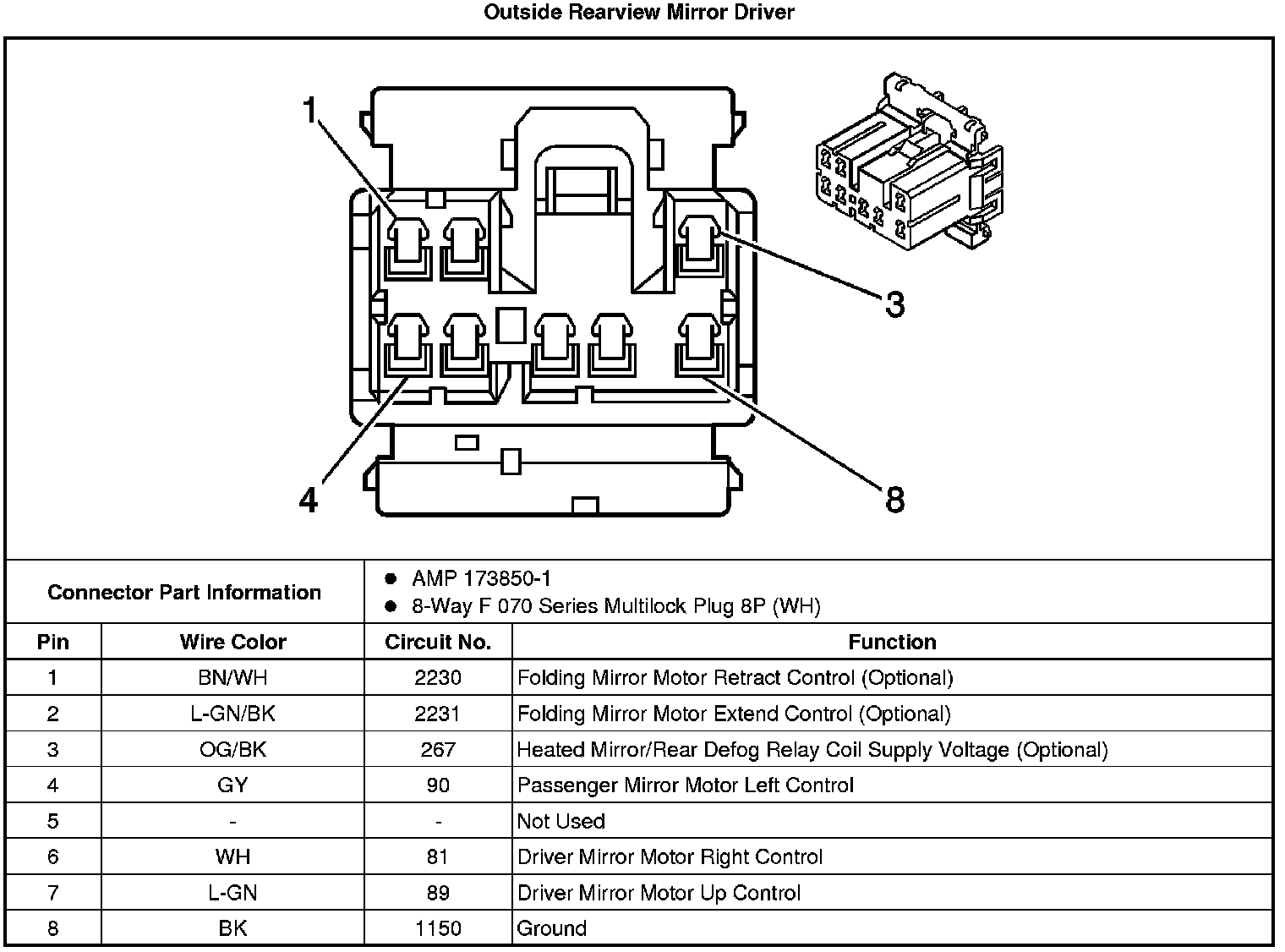

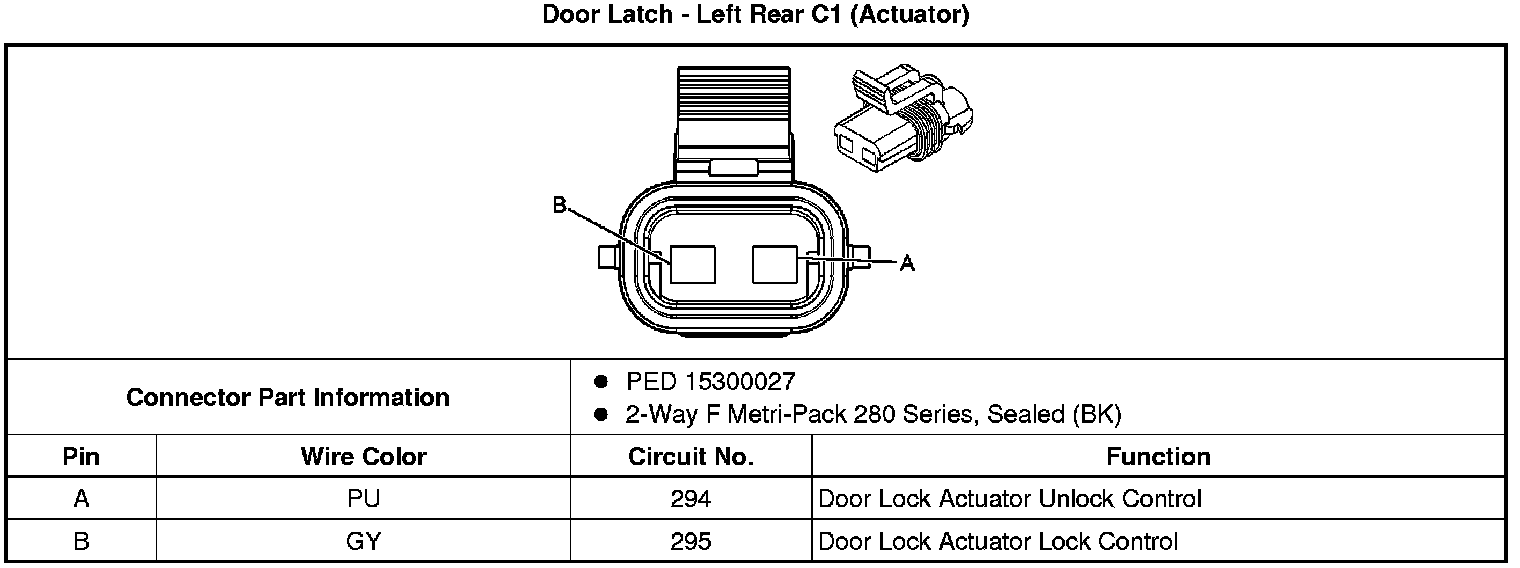

Power Door Systems Connector End Views
