Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

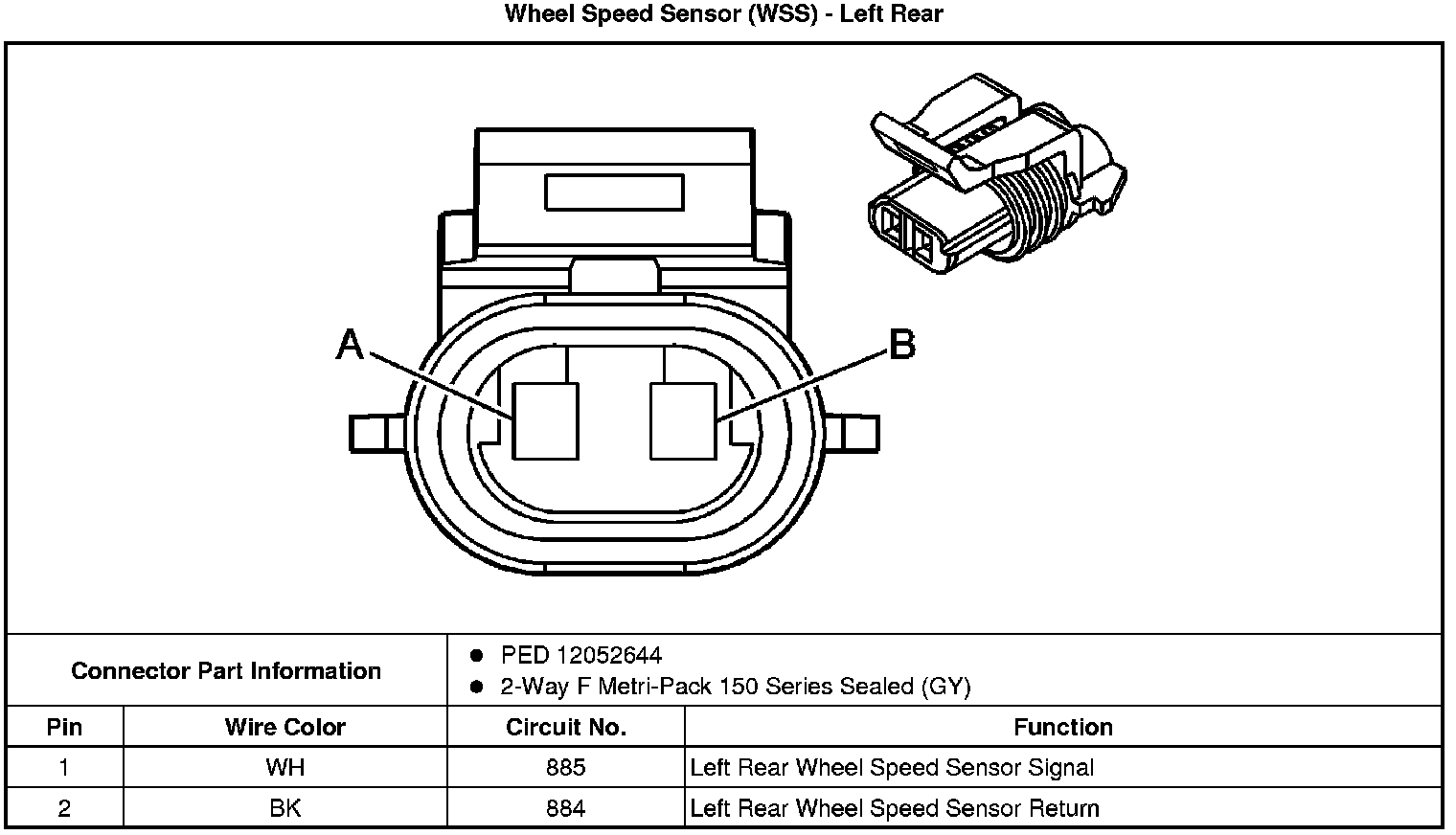

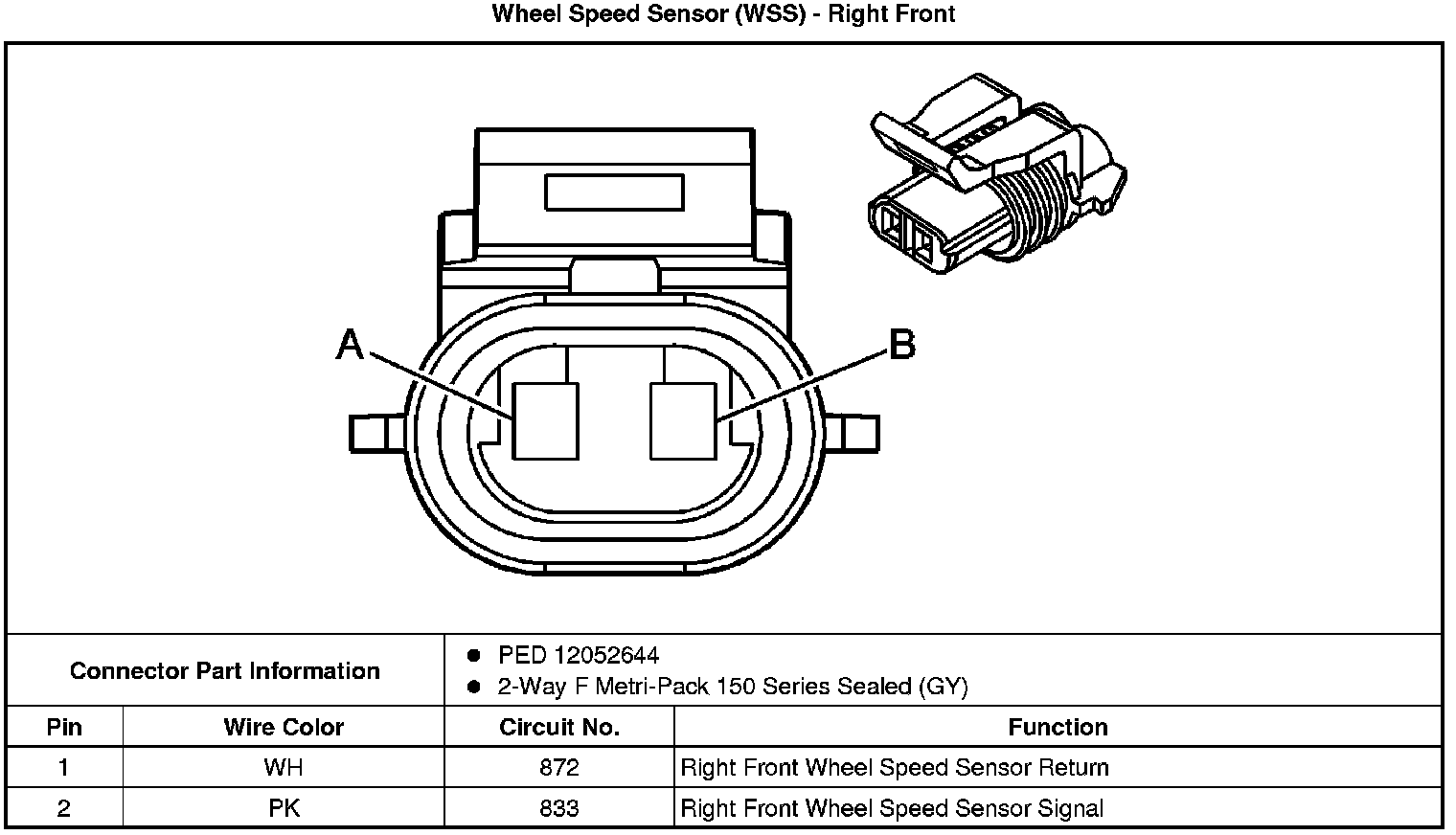

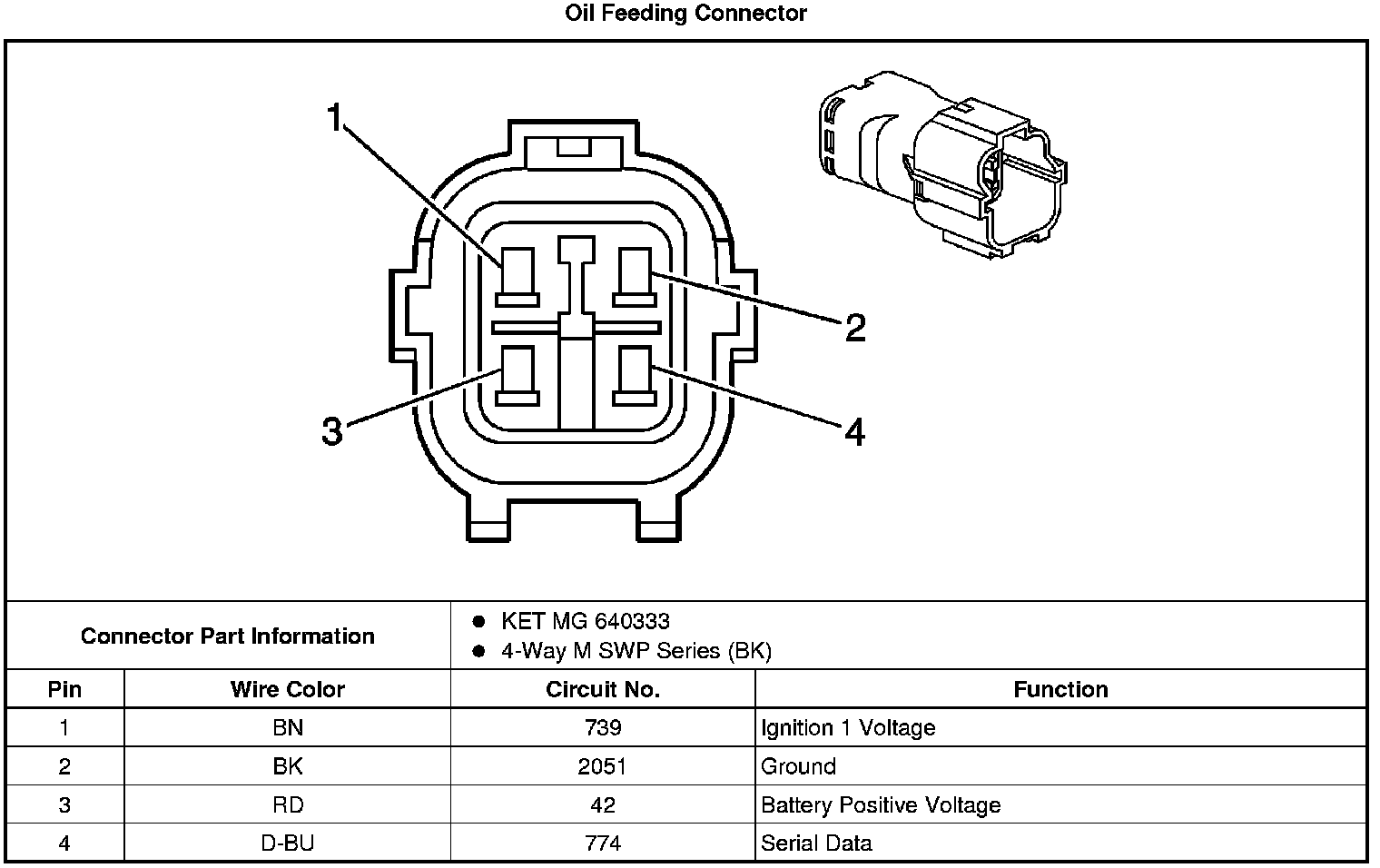

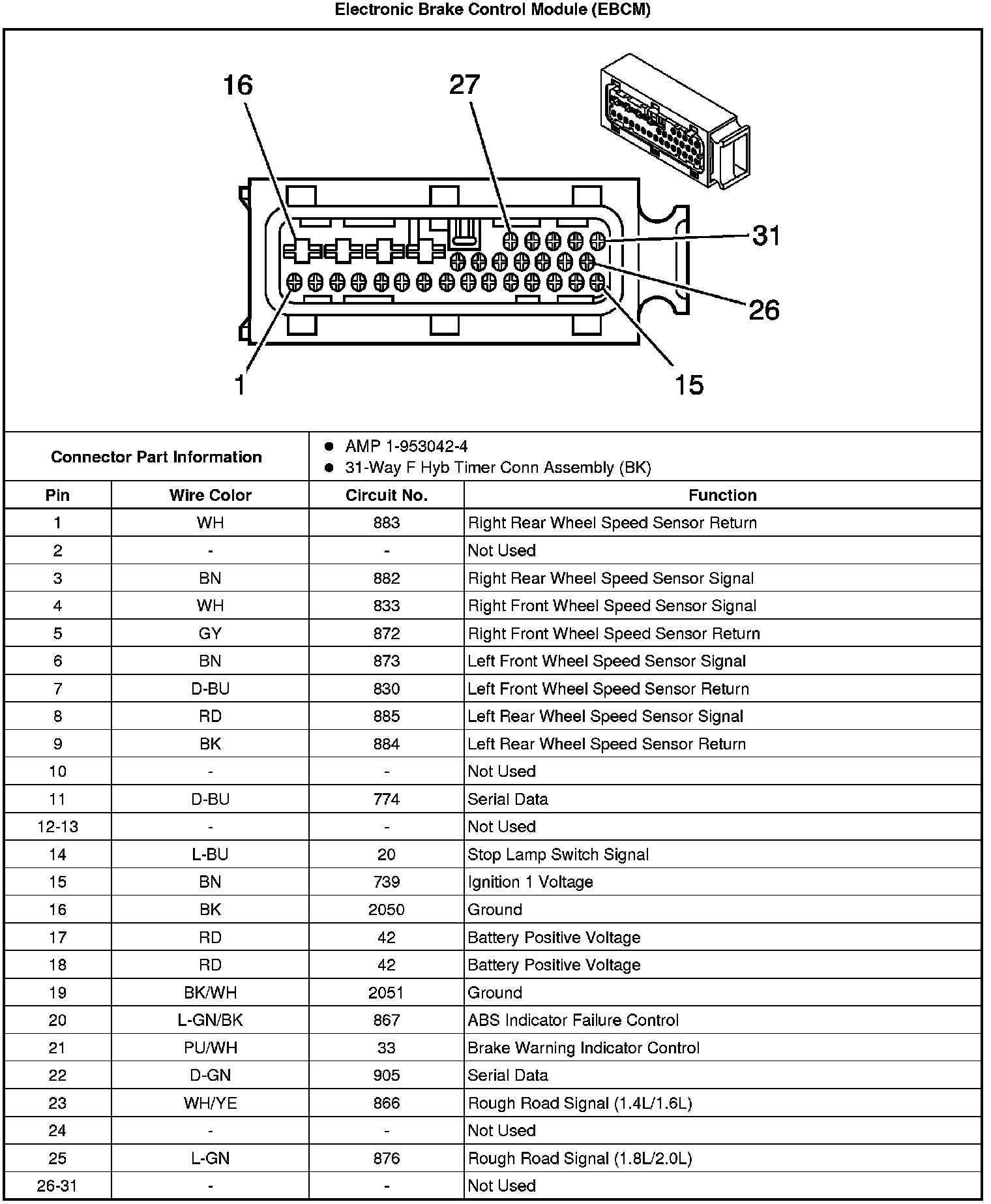

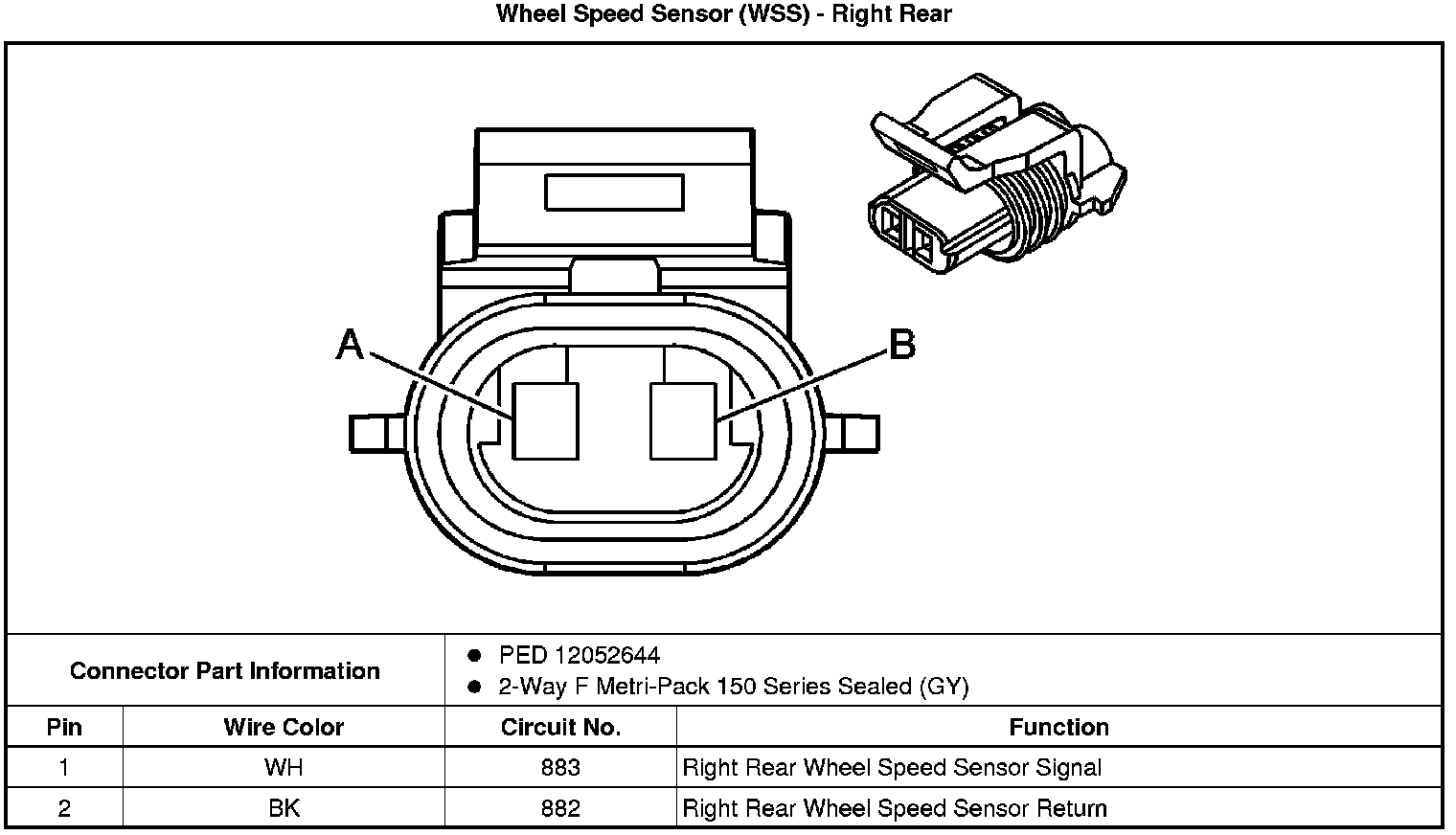

Antilock Brake System Connector End Views
