Antitheft and Alarm Systems

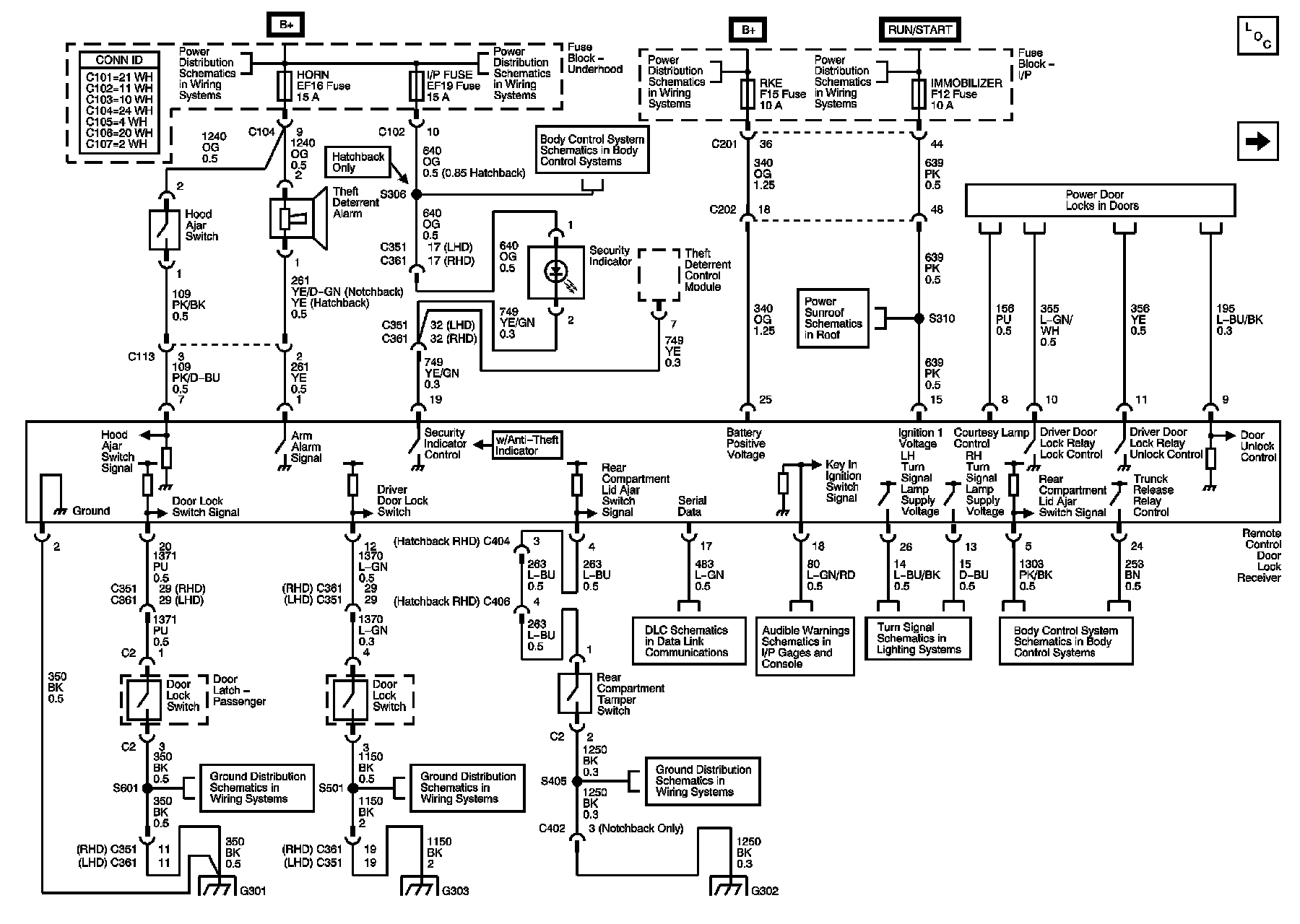

Theft Deterrent System Schematics

Remote Keyless Entry w/ Alarm





Remote Keyless Entry w/o Alarm

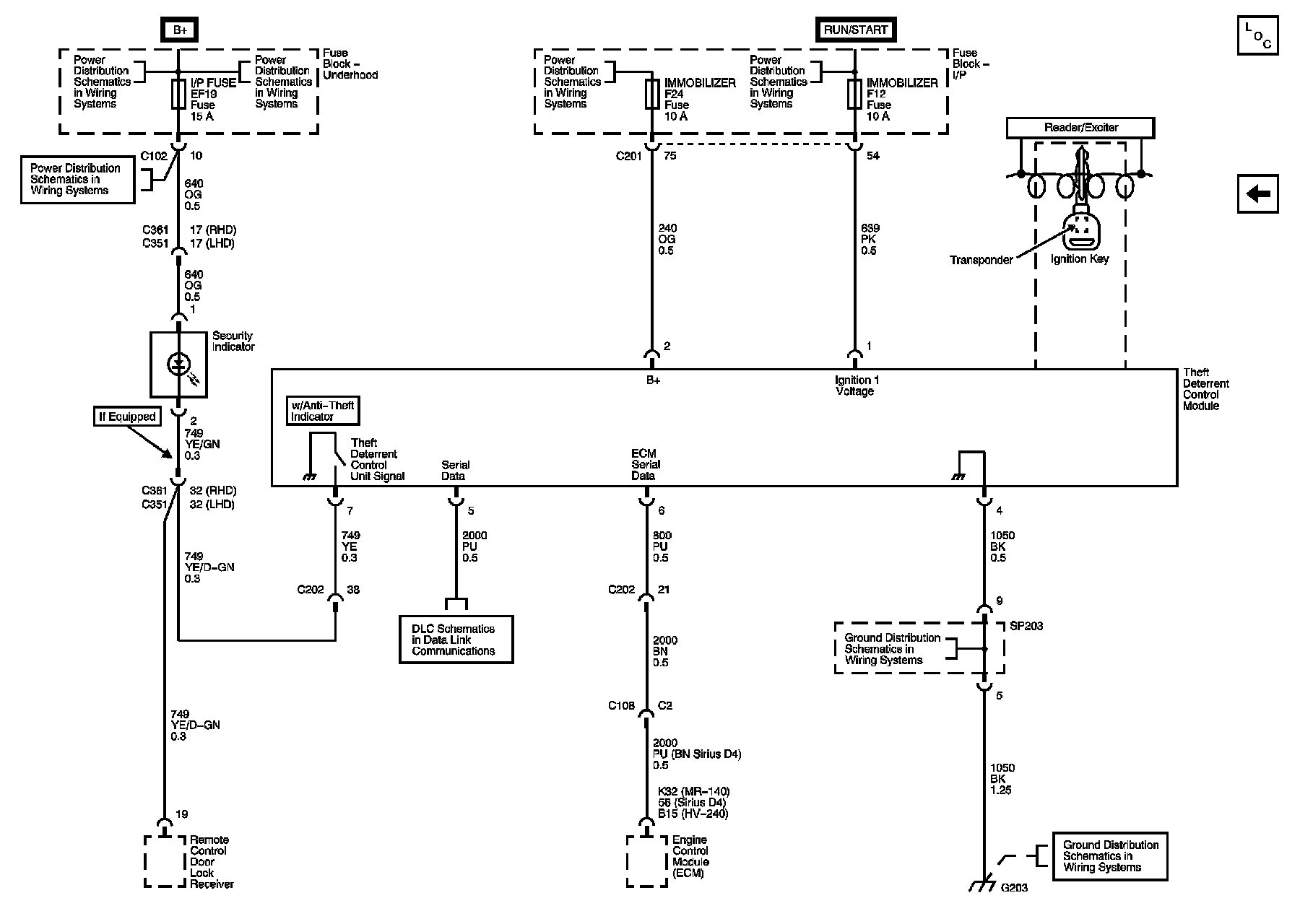

Theft Deterrent Control Module
