Headlights Schematics




Headlights Schematics

Headlamps (w/o Daytime Running Lamps (DRL))

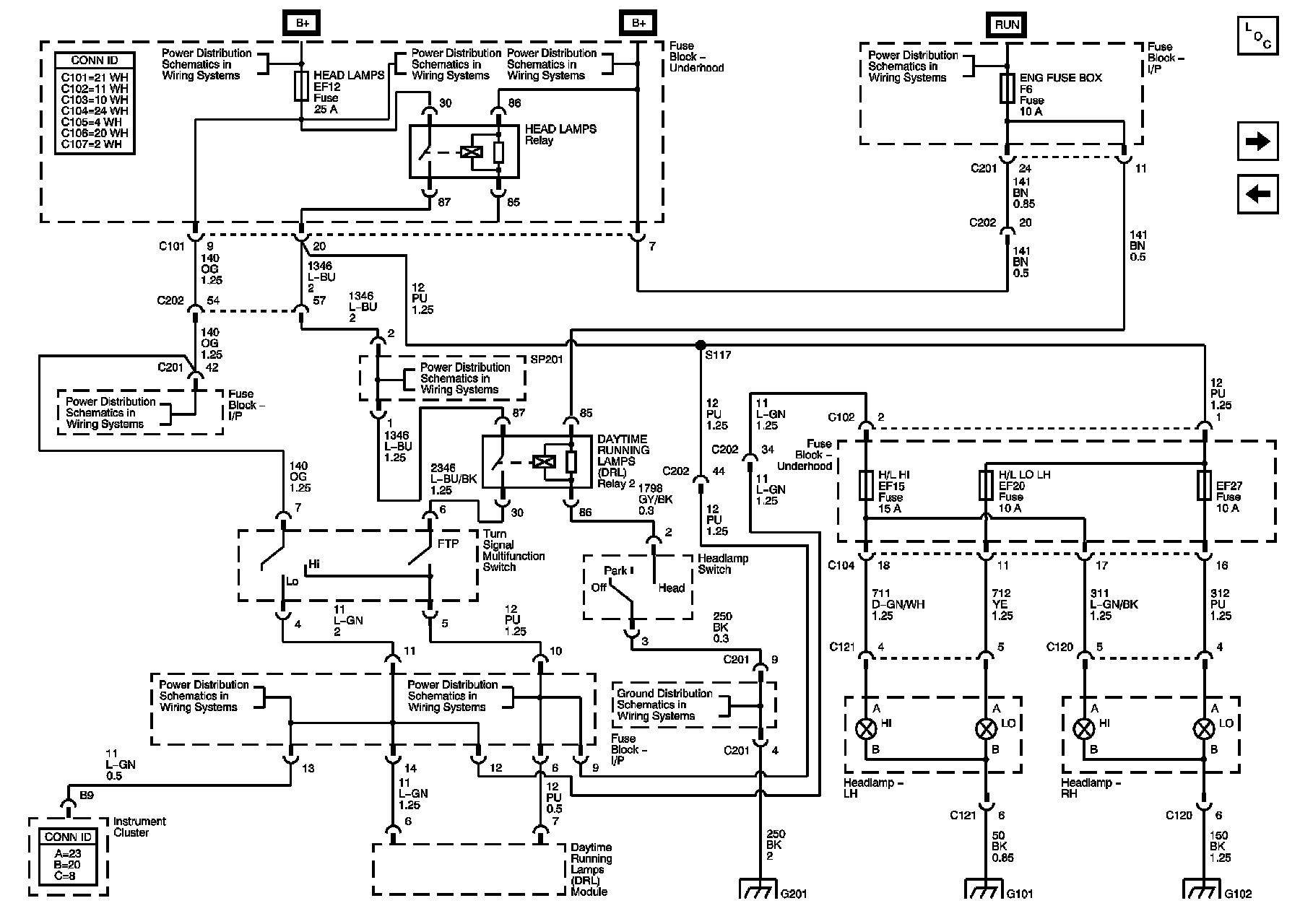

Headlamps (w/ Scandanavia Daytime Running Lamps (DRL))

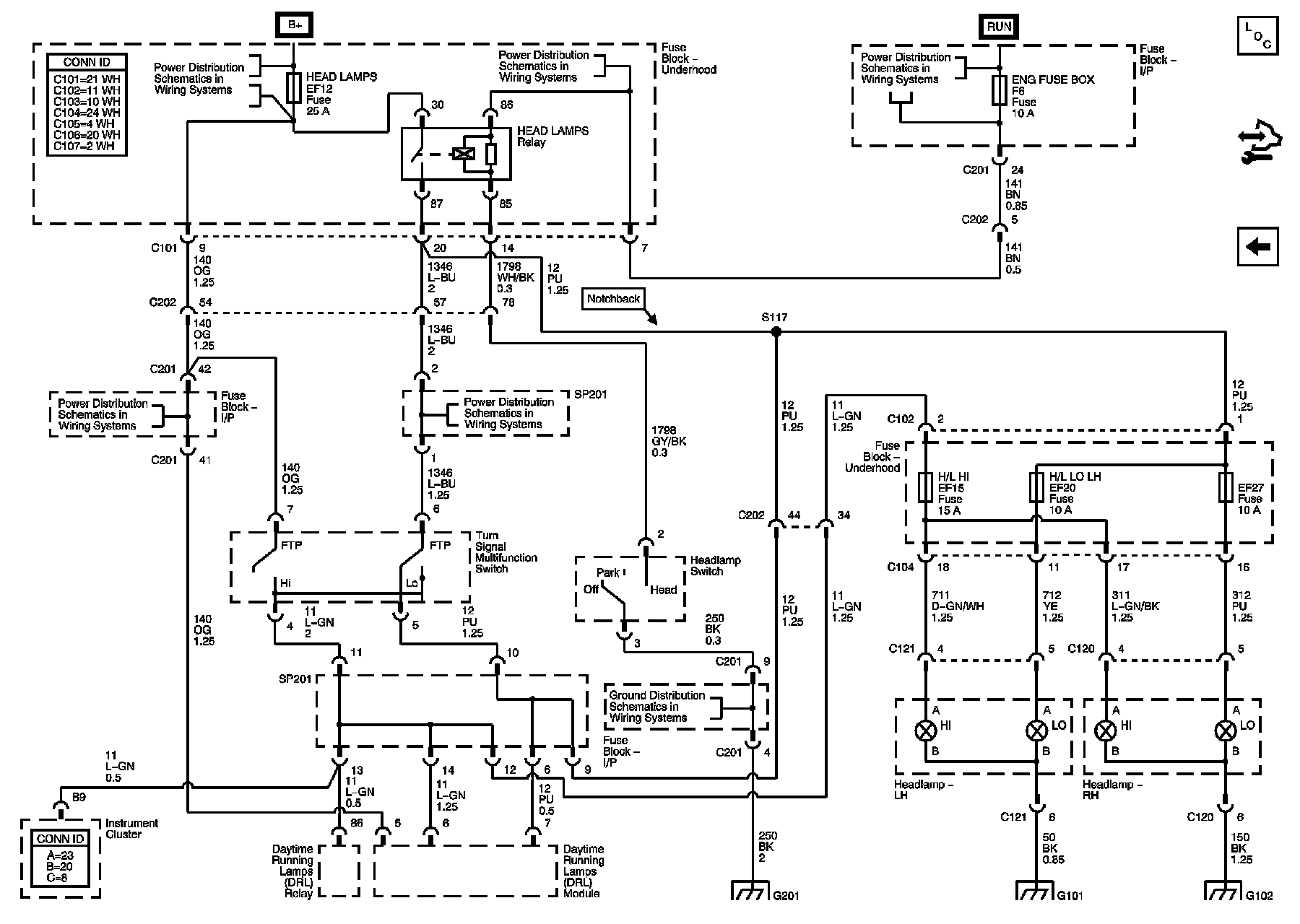

Headlamps (w/ North American Daytime Running Lamps (DRL))
