Headlights/Daytime Running Lights (DRL) Schematics




Headlights/Daytime Running Lights (DRL) Schematics

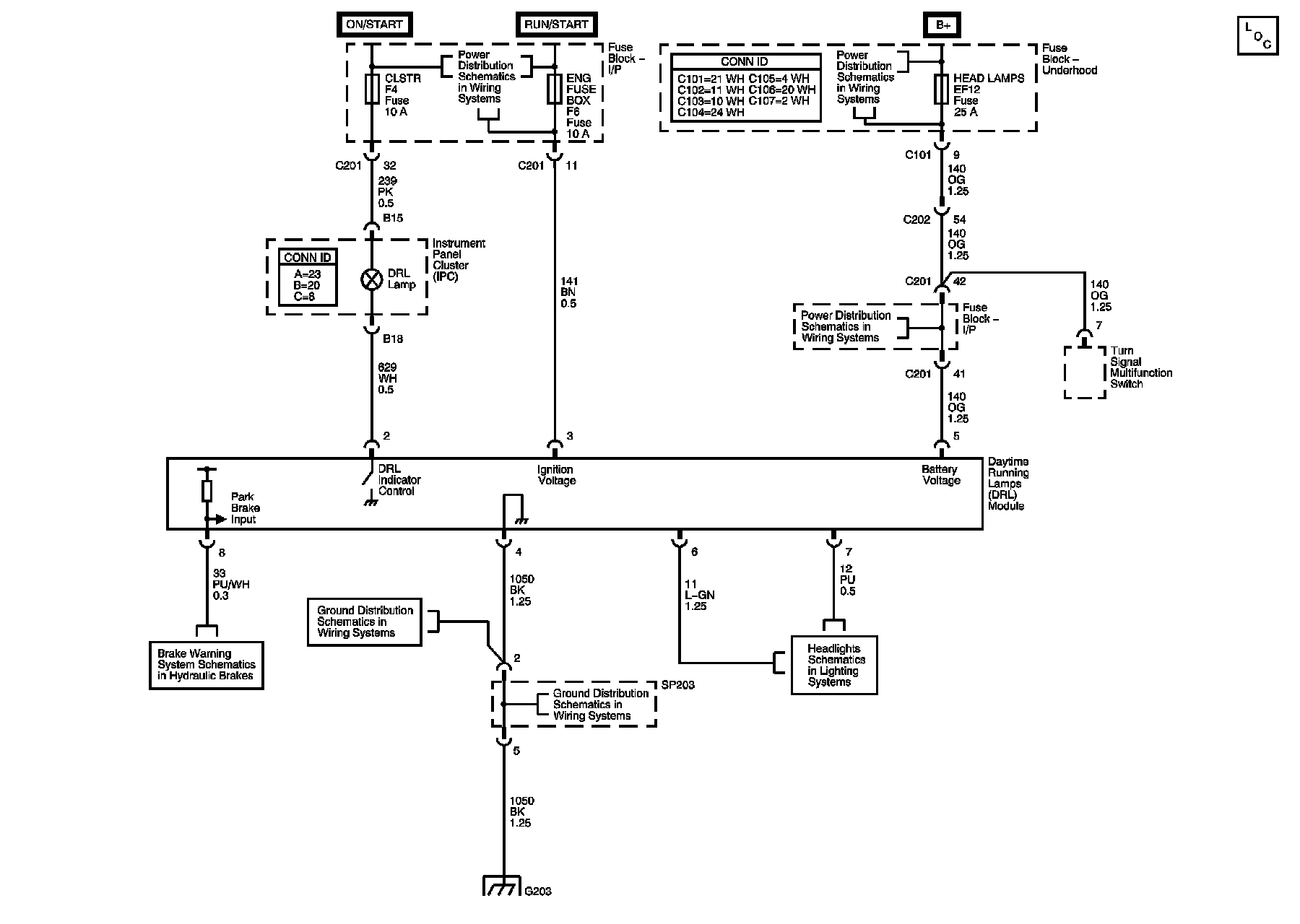

Daytime Running Lamp (DRL (North America))

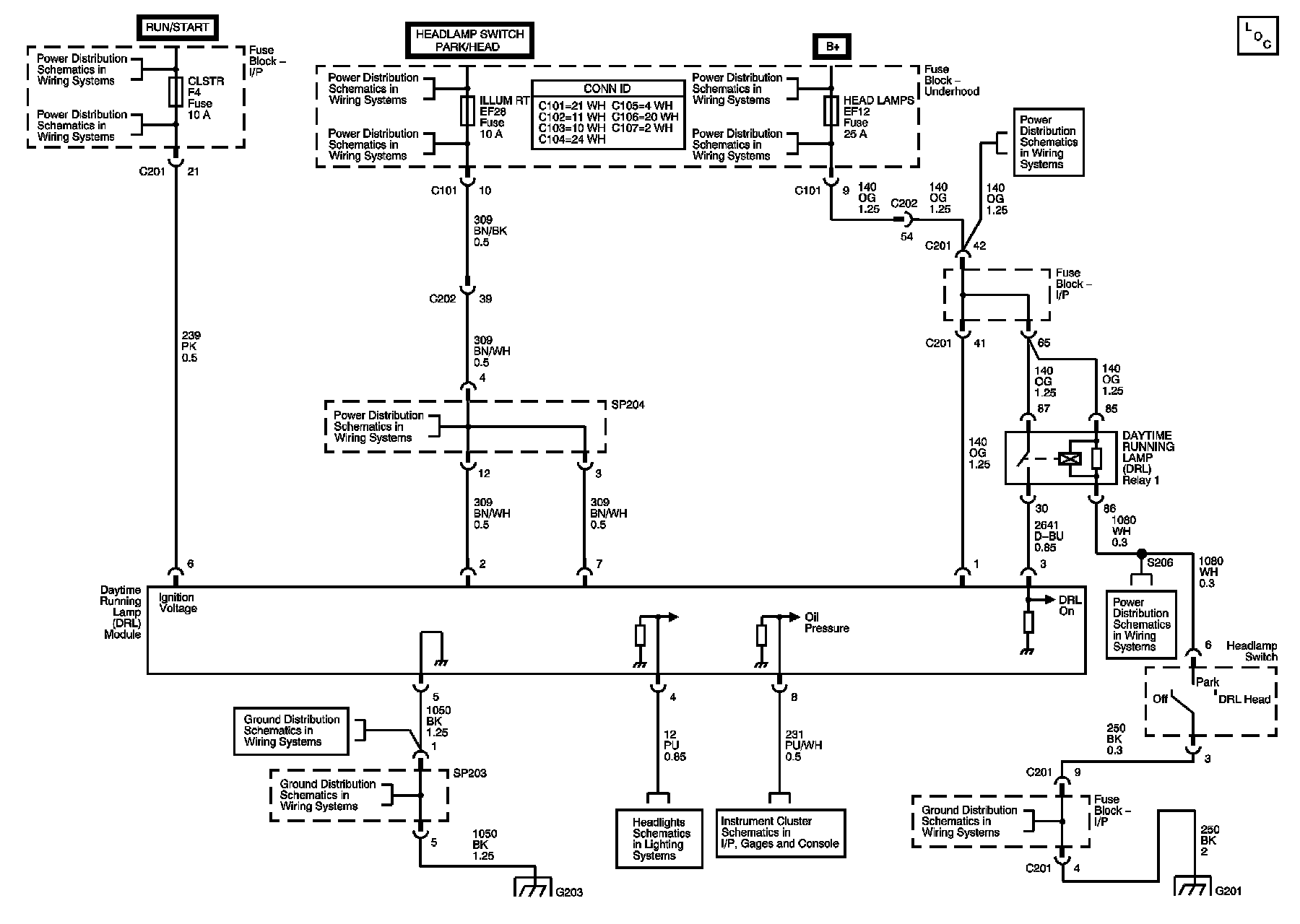

Daytime Running Lamp (DRL (Scandinavia))
