Manual Transmission/Transaxle
>>
D16 - Manual Transmission
D16 - Manual Transmission

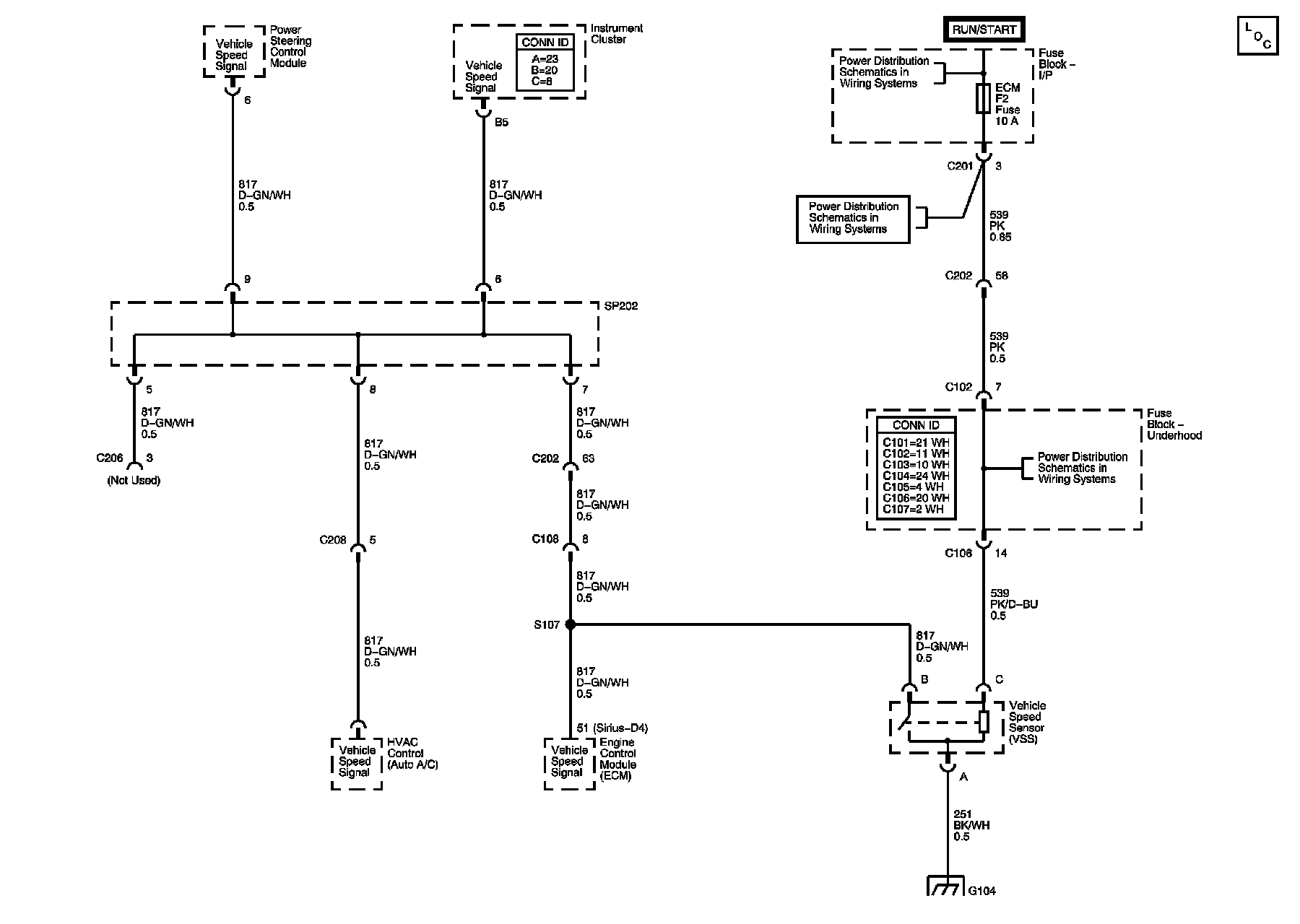

Manual Transmission Schematics
Vehicle Speed Sensor (VSS)
