Chevrolet
>>
2004
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Radio/Audio System Schematics
Radio/Audio System Schematics
Radio/Audio System Schematics

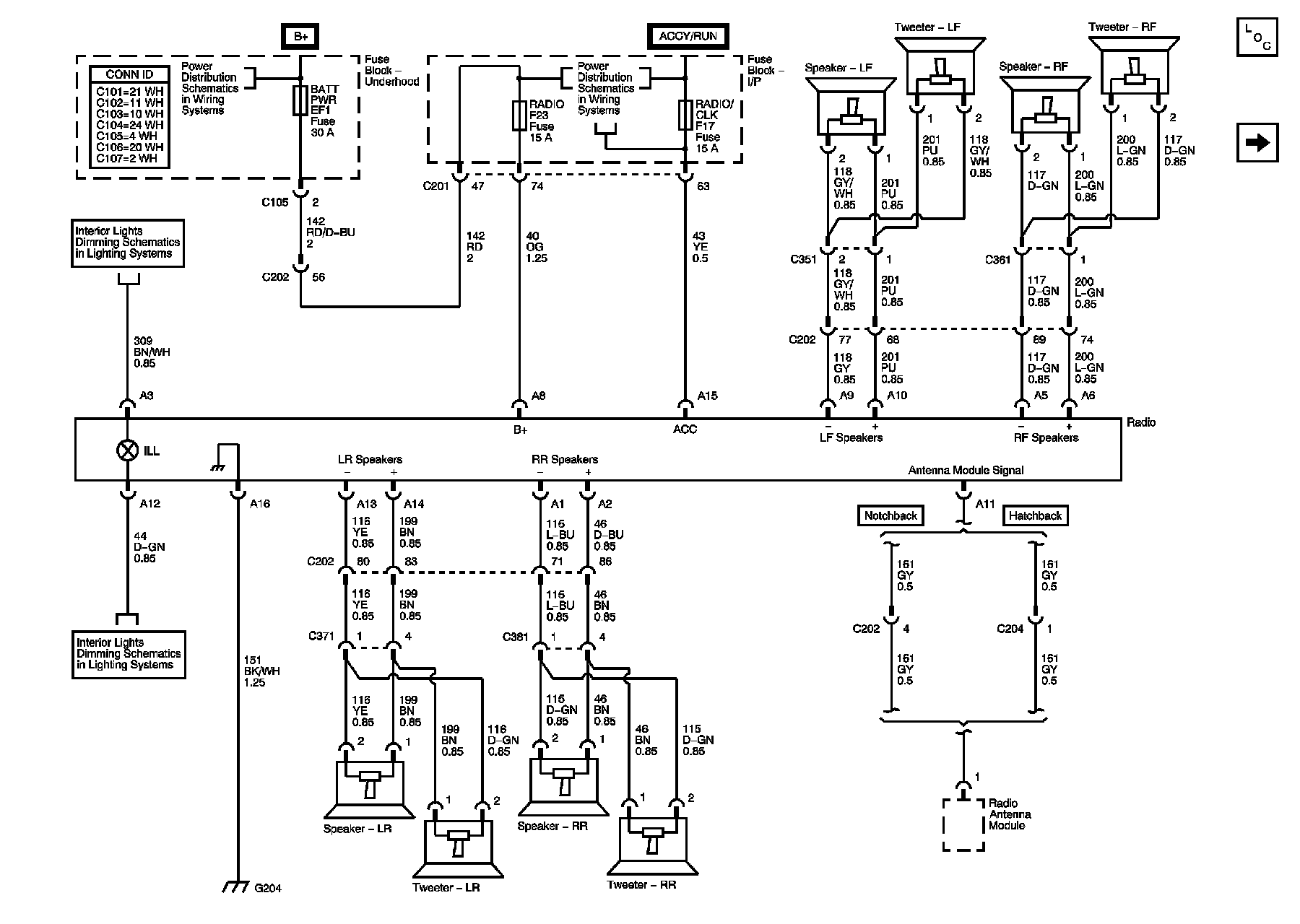

Radio (w/ RDS)

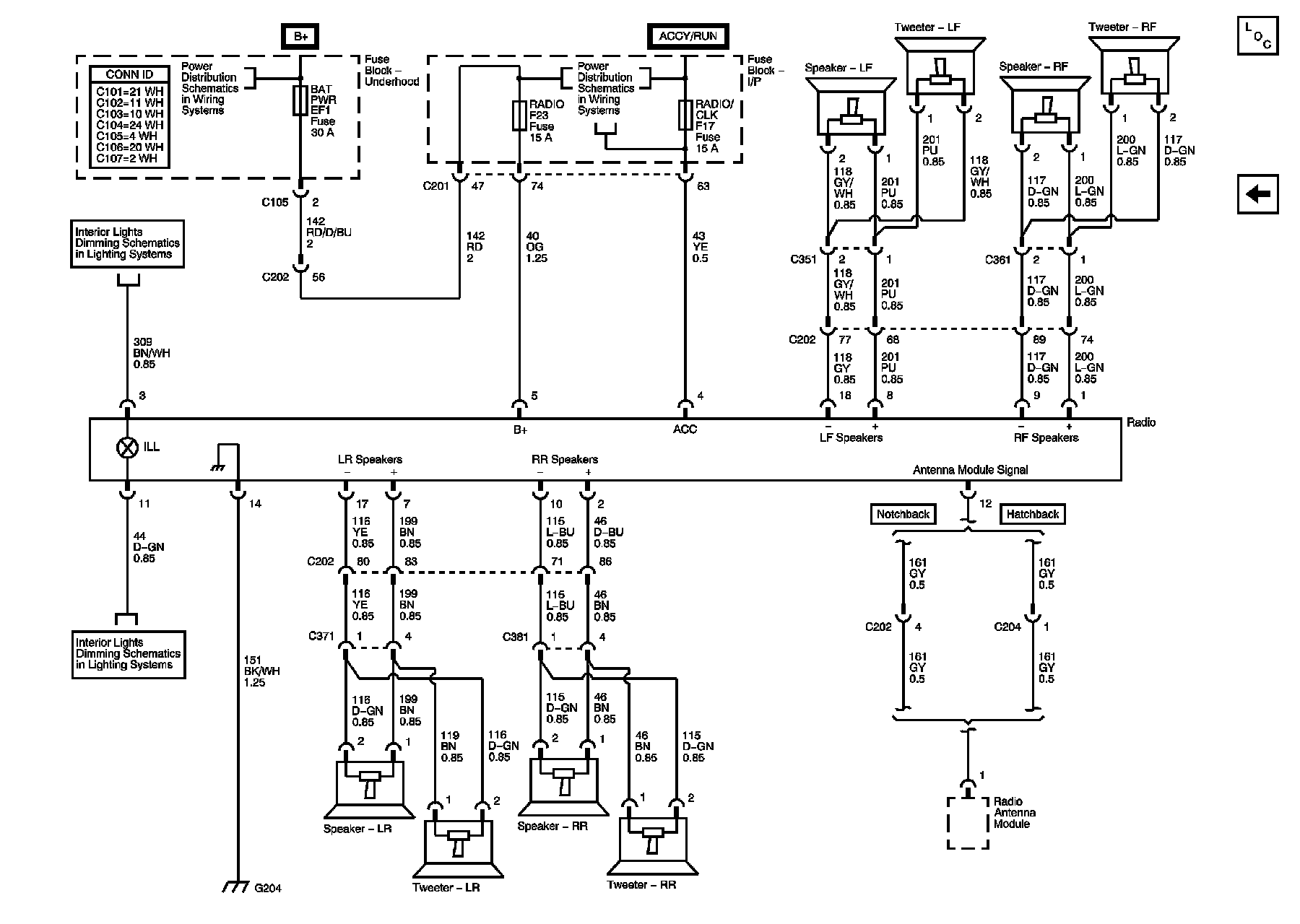

Radio (w/o RDS)
