Harness Routing Views
Harness Routing Views

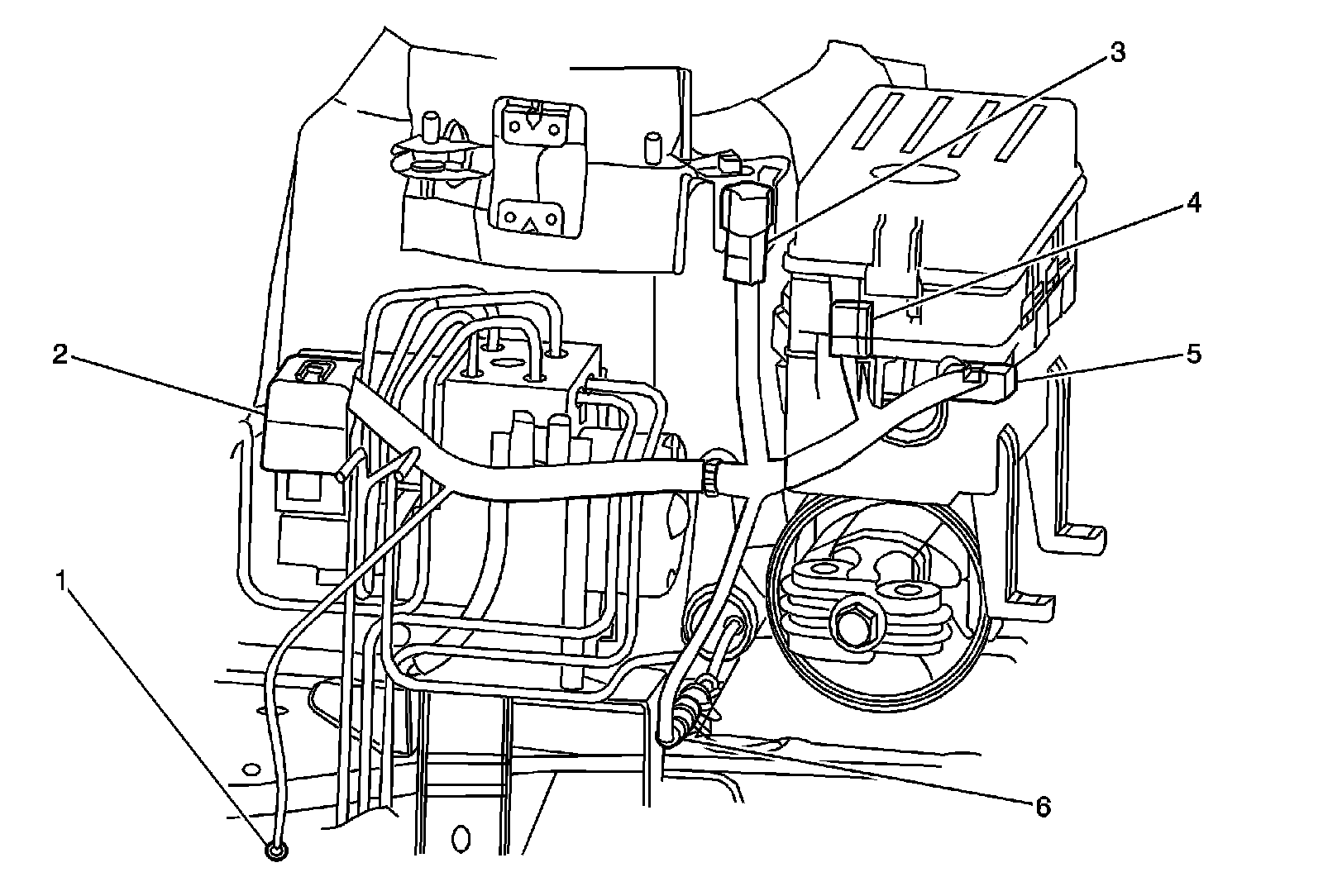

ABS Harness Routing
1 - G106
2 - Electronic Brake Control Module (EBCM)
3 - Oil Feeding Connector
4 - C111
5 - C110
6 - Wheel Speed Sensor

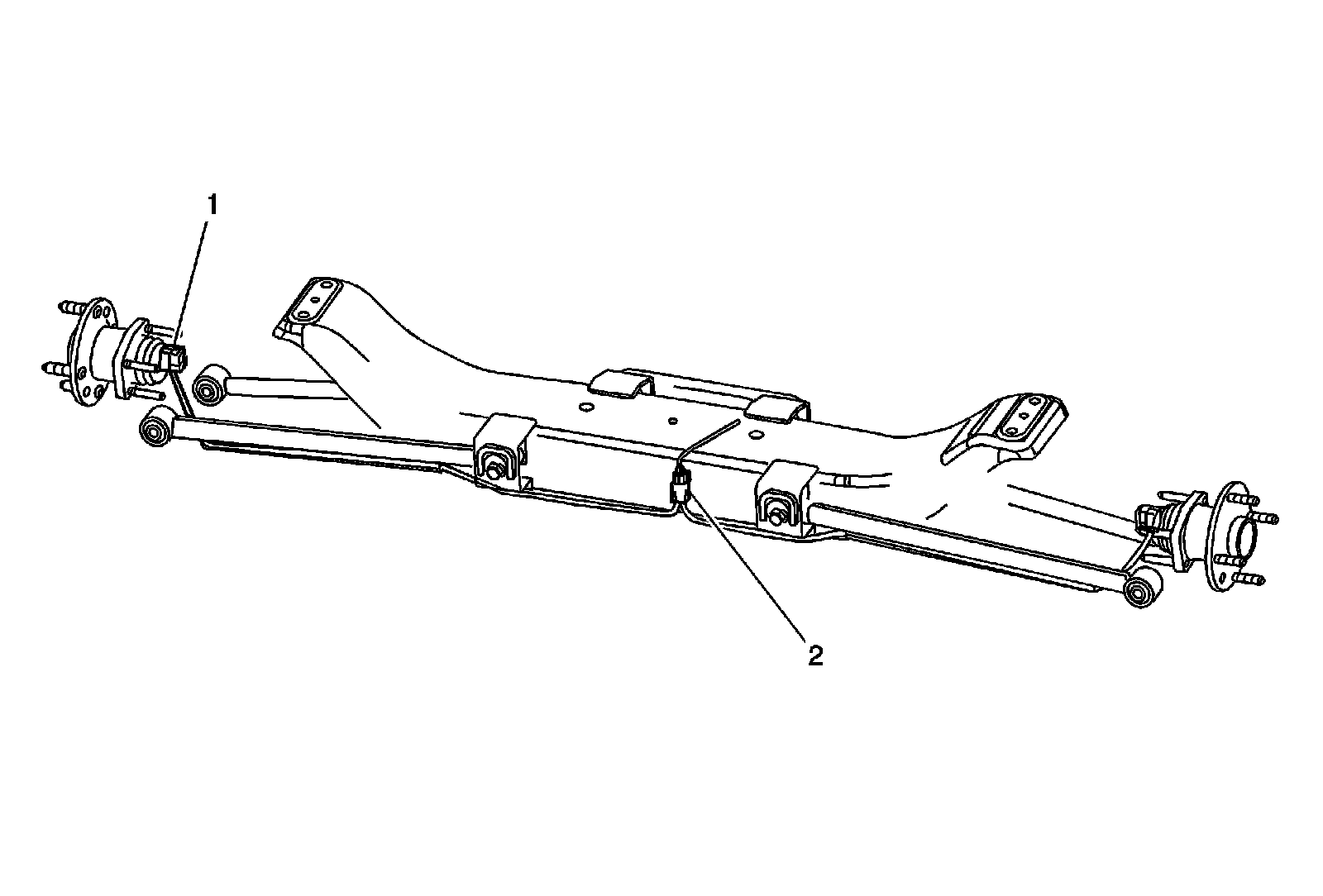

Rear ABS Harness Routing
1 - Rear Wheel Speed Sensor
2 - C901

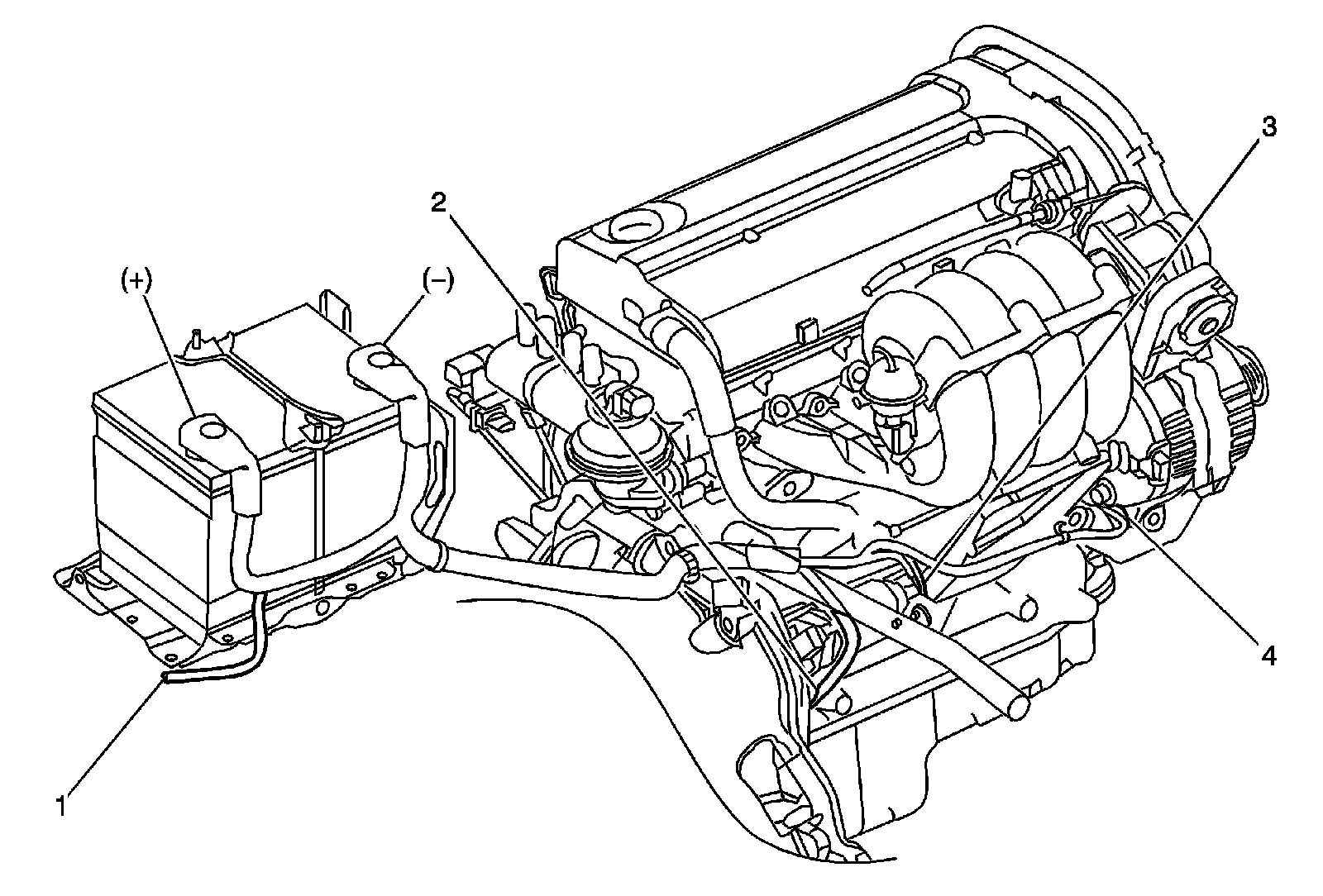

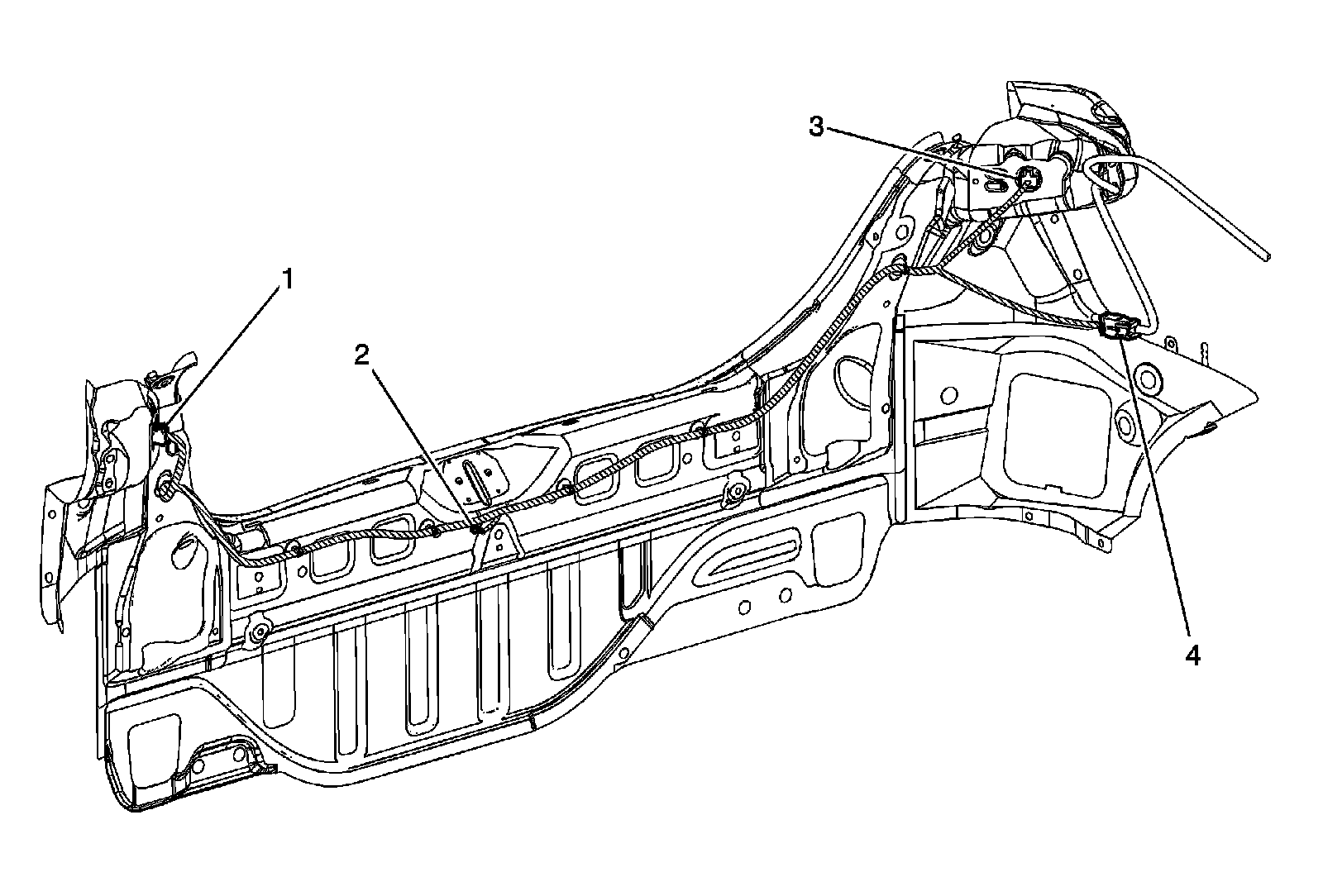

Battery Harness Routing
1 - G103
2 - G105
3 - Starter
4 - Generator
Body Harness Routing - Bulkhead
1 - Wiper Motor
2 - Brake Fluid Level Switch
3 - C101, C102, C105
4 - C108
5 - C103

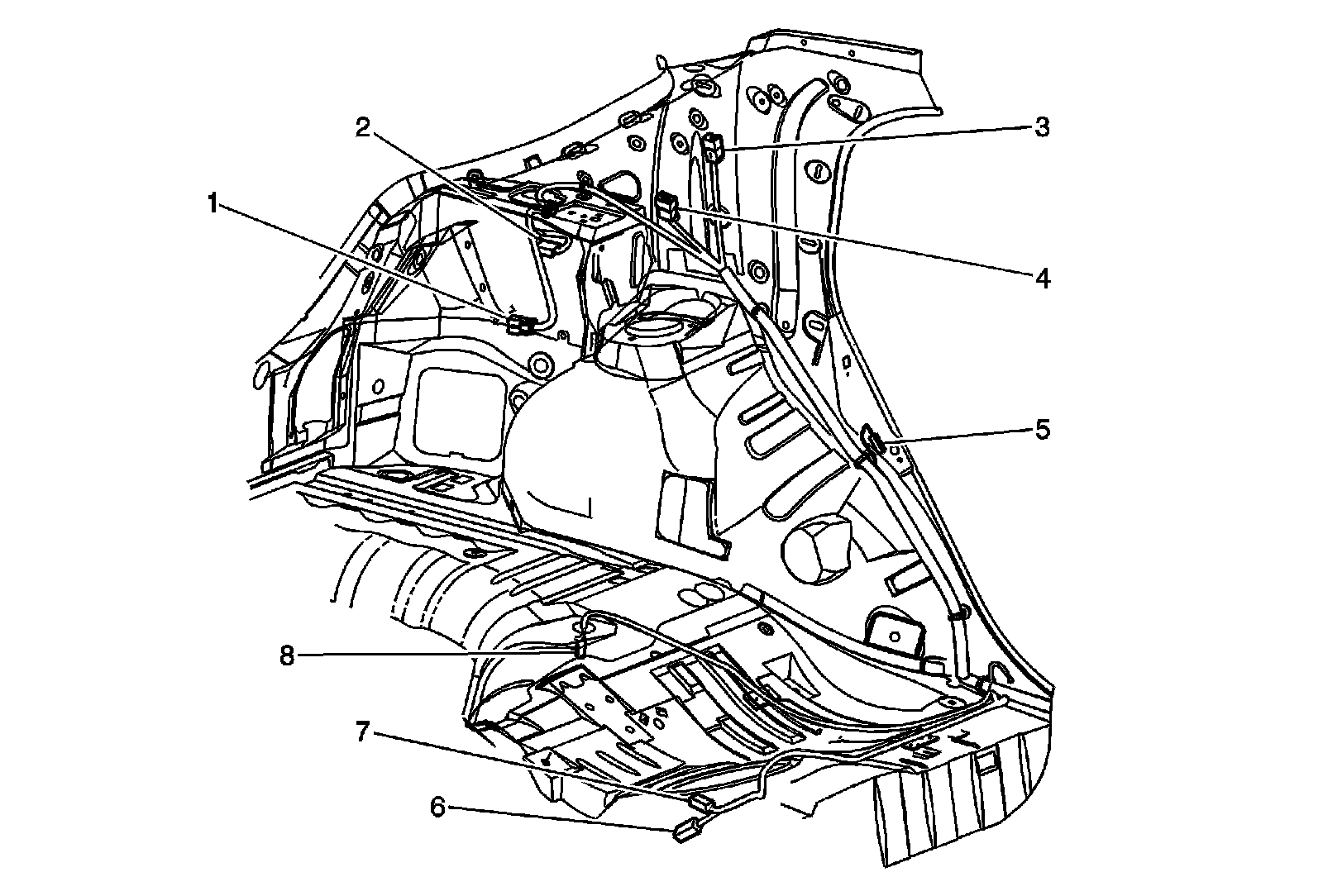

Body Harness Routing - Rear
1 - C401
2 - Rear Compartment Lamp
3 - C403
4 - C404
5 - Door Ajar switch - LR
6 - Fuel Pump
7 - Fuel Tank Pressure Sensor
8 - C901

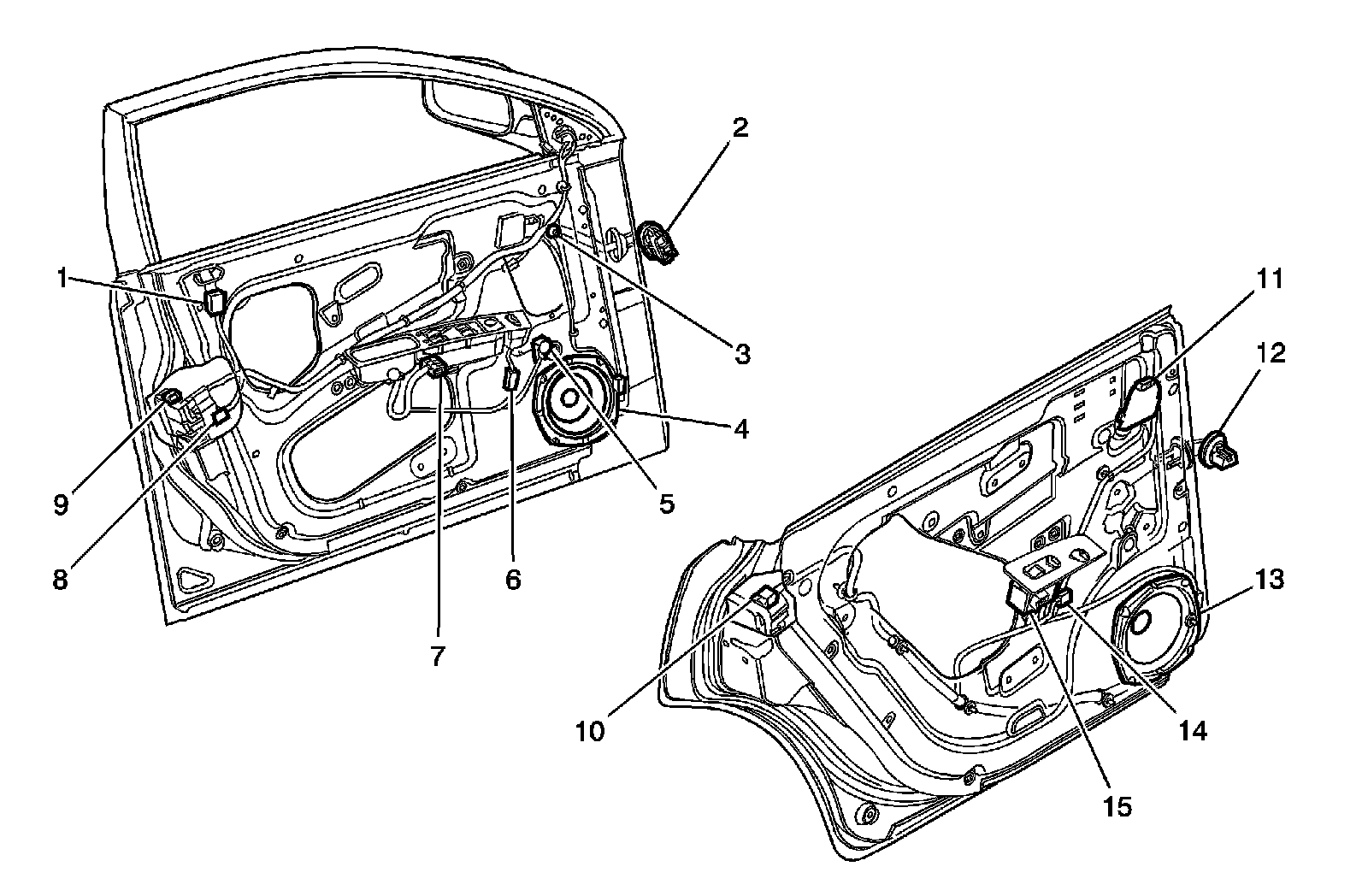

Door Harness Routing
1 - Status Display
2 - C351
3 - Tweeter
4 - Door Speaker
5 - Trunk Open Switch
6 - Door Lock Switch
7 - Power Window Switch
8 - Door Lock Actuator
9 - Central Locking and Theft Deterrent
10 - Rear Door Lock Actuator
11 - Tweeter
12 - C371/C381
13 - Rear Door Speaker
14 - Rear Door Power Window Motor
15 - Rear Door Power Window Switch

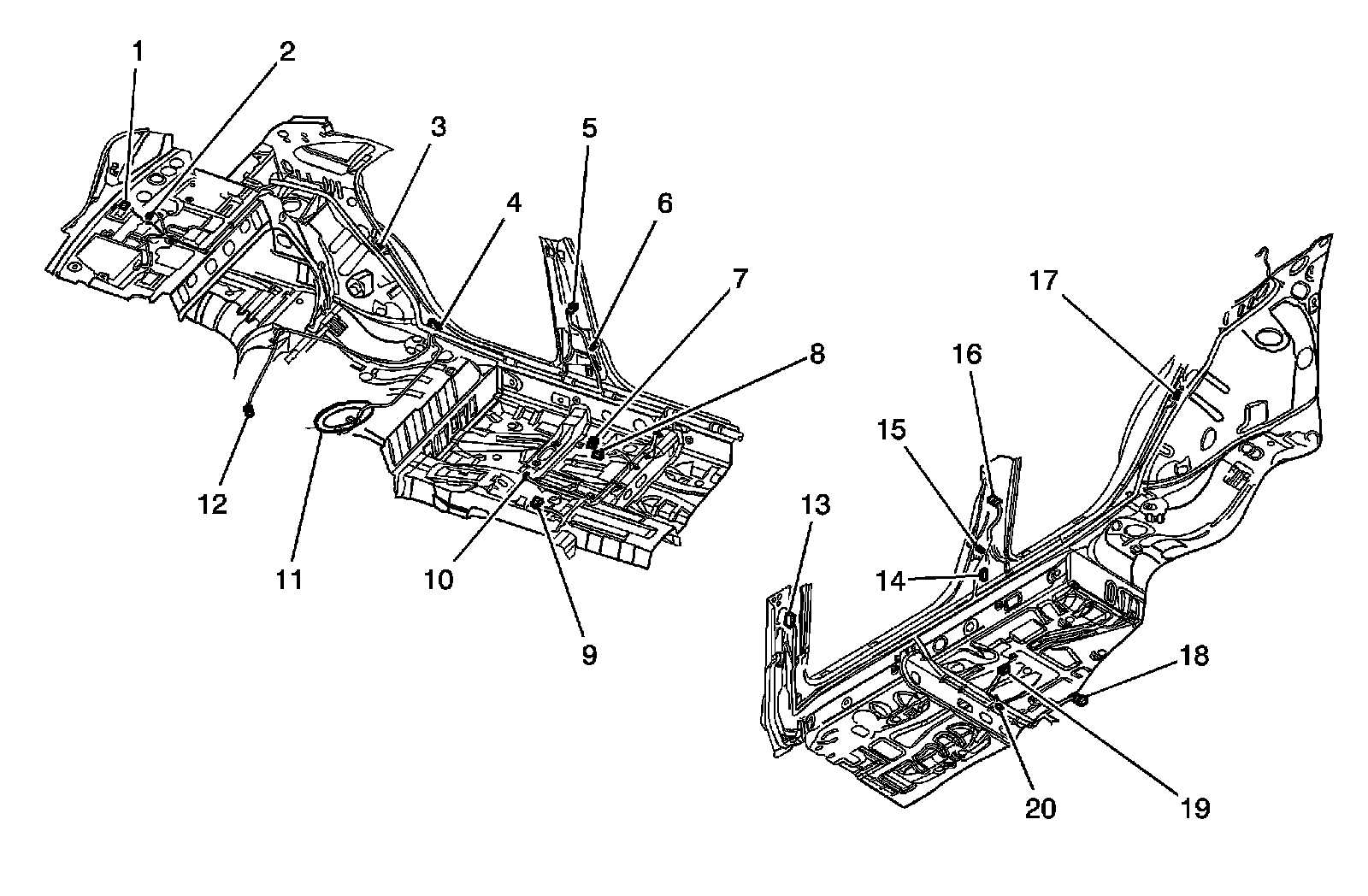

Floor Harness Routing
1 - Trunk Room Lamp
2 - CHMSL
3 - Rear Door Contact Switch
4 - G302
5 - C351
6 - Front Door Contact Switch
7 - Side Air Bag
8 - Side Air Bag Sensor
9 - C301
10 - Parking Brake Switch
11 - Fuel Pump
12 - C302
13 - C351
14 - Side Air Bag Sensor
15 - Front Door Contact Switch
16 - C371
17 - Rear Door Contact Switch
18 - C207
19 - Side Air Bag
20 - G301

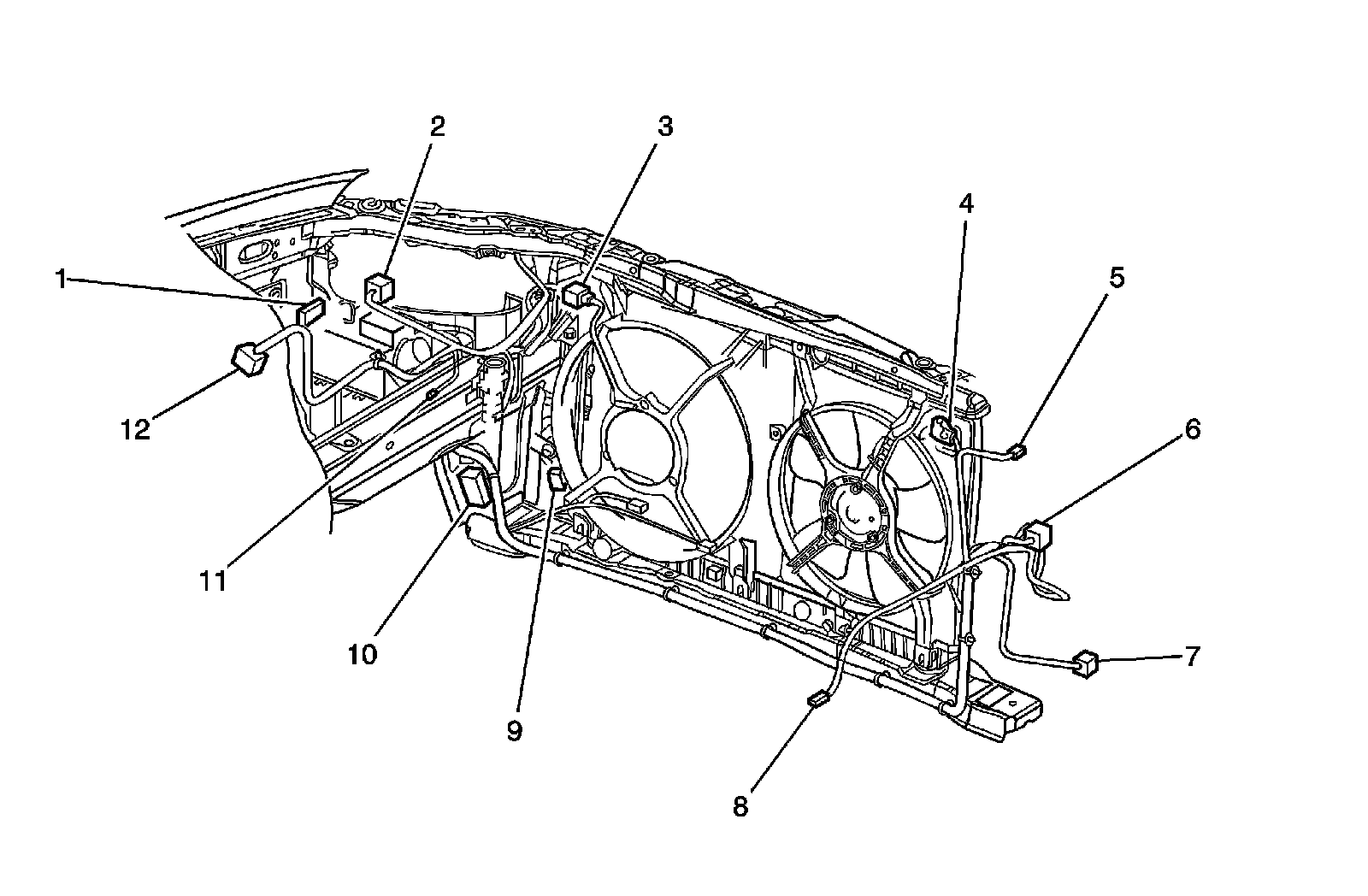

Front Harness Routing
1 - C109
2 - Left Hand Headlamp
3 - Main Cooling Fan
4 - Auxiliary Cooling Fan
5 - Right Hand Turn Signal Lamp
6 - Right Hand Headlamp
7 - Right Hand Fog Lamp
8 - Side Turn Signal Lamp
9 - Horn
10 - Cooling Fan Resistor
11 - G101
12 - C104

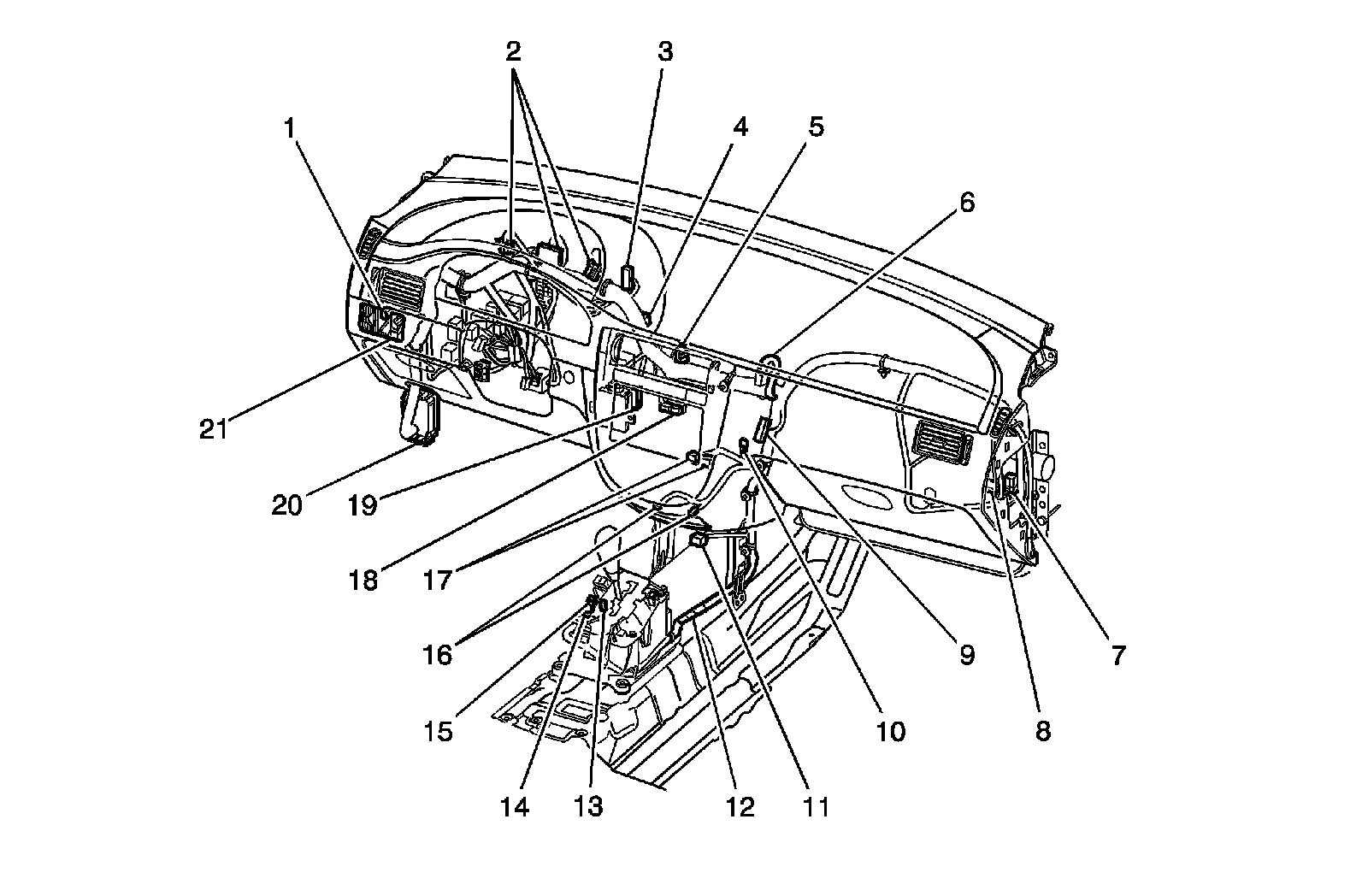

Instrument Panel Harness Routing - LHD
1 - Headlamp Leveling Switch
2 - Instrument Cluster
3 - SP202
4 - C207
5 - Hazard Switch
6 - Clock
7 - Outside Rearview Mirror
8 - C208
9 - SP204
10 - G204
11 - Auxiliary Power Outlet
12 - C210
13 - PRNDL Illumination
14 - BTSI Solenoid
15 - Hold Switch
16 - Cigar Lighter and Ash Tray
17 - A/C Control Switch
18 - Radio
19 - SP203
20 - C202
21 - Dimmer Control Unit

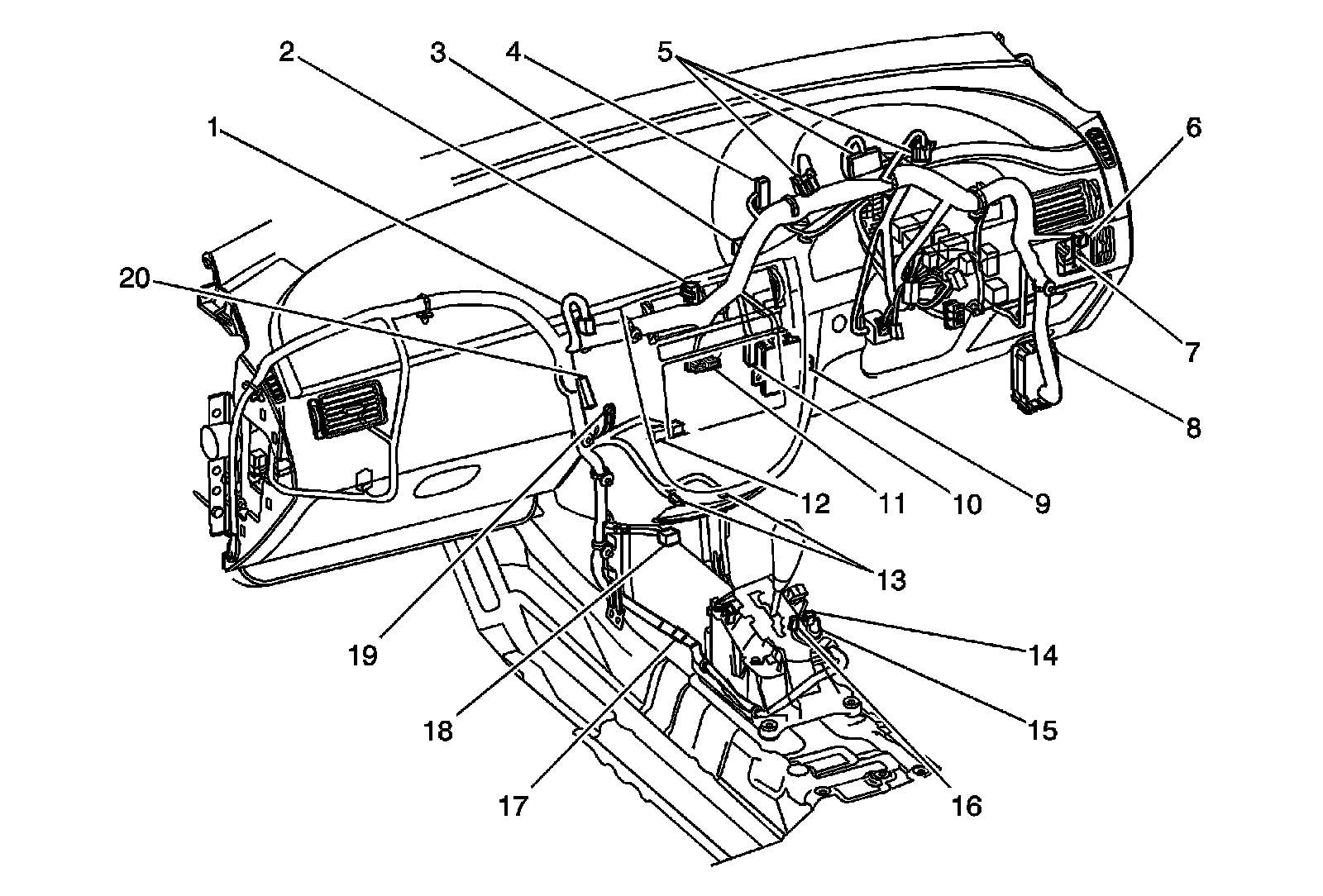

Instrument Panel Harness Routing - RHD
1 - Clock
2 - Hazard Switch
3 - C207
4 - S202
5 - Cluster
6 - Headlamp Leveling Switch
7 - Dimmer Control Switch
8 - C202
9 - Multifunction Alarm Module
10 - S203
11 - Radio
12 - A/C Control Switch
13 - Cigar and Ash Tray
14 - Hold Mode Switch
15 - Shiftlock Control Solenoid
16 - PRNDL Illumination
17 - C302
18 - Auxiliary Power Outlet
19 - G203
20 - S204

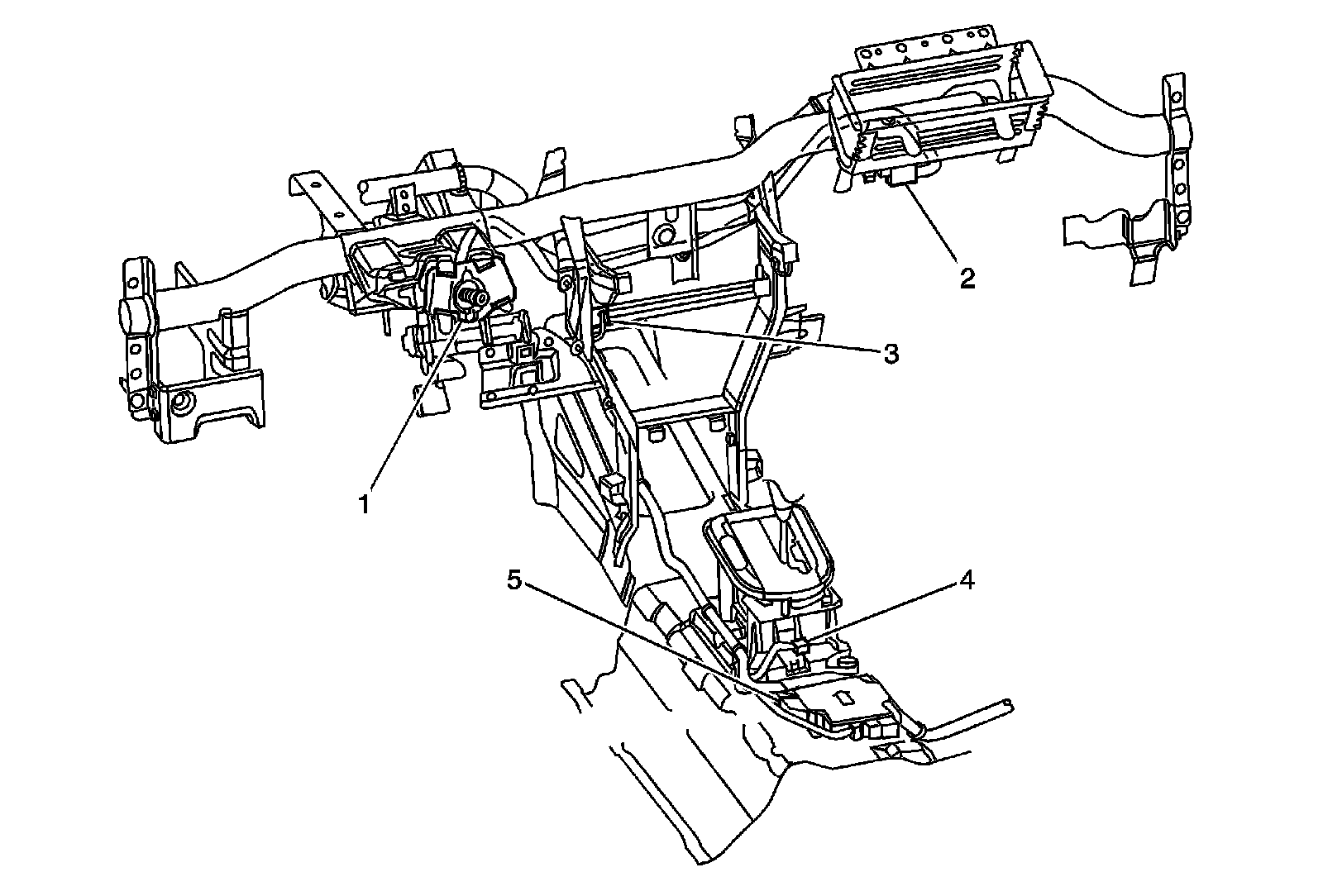

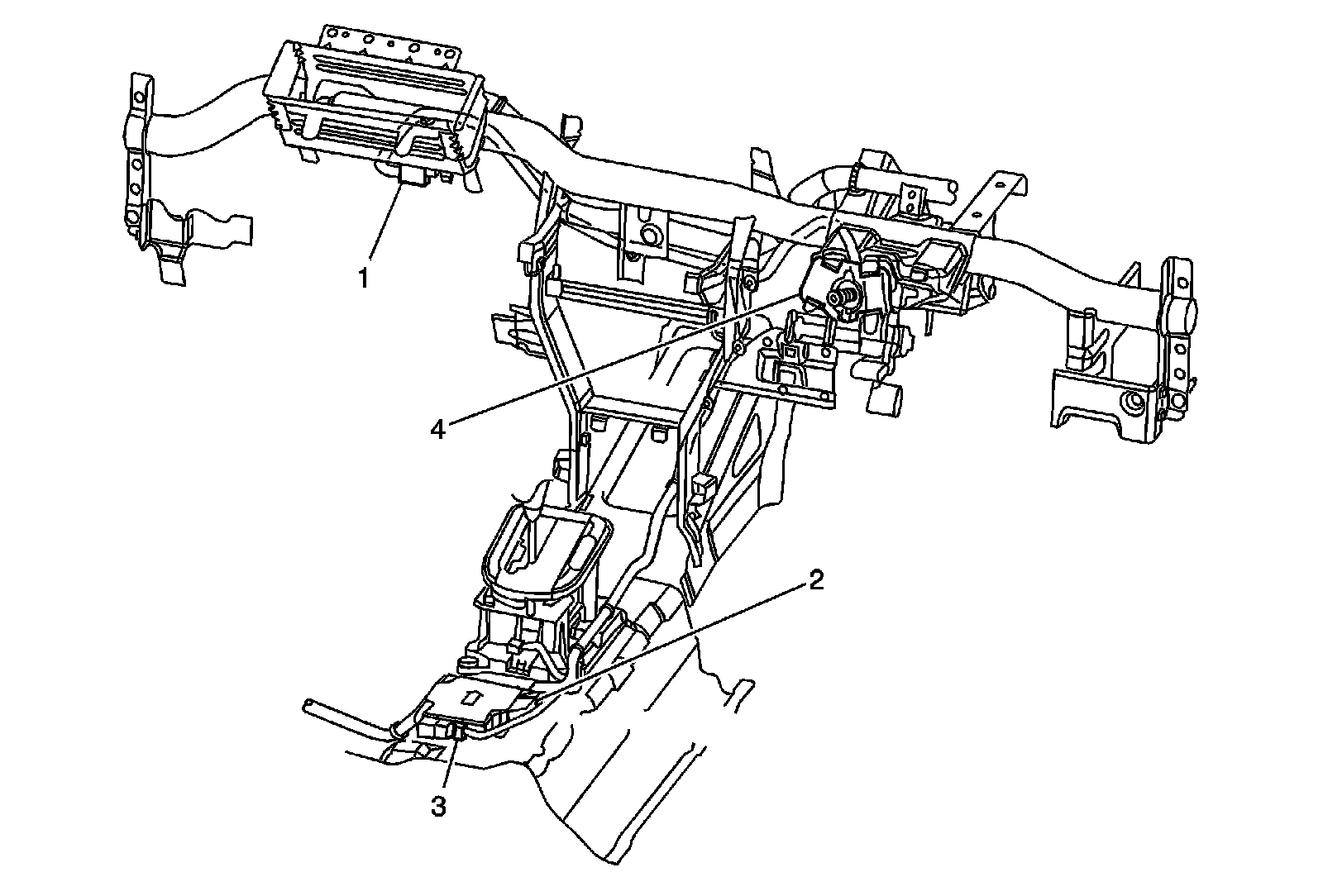

Instrument Panel Harness Routing - Below Steering Column
1 - S202
2 - Cluster
3 - S201
4 - C201
5 - C202
6 - C206
7 - Data Link Connector
8 - Multifunction Alarm Module
9 - Stop Lamp Switch
10 - C207

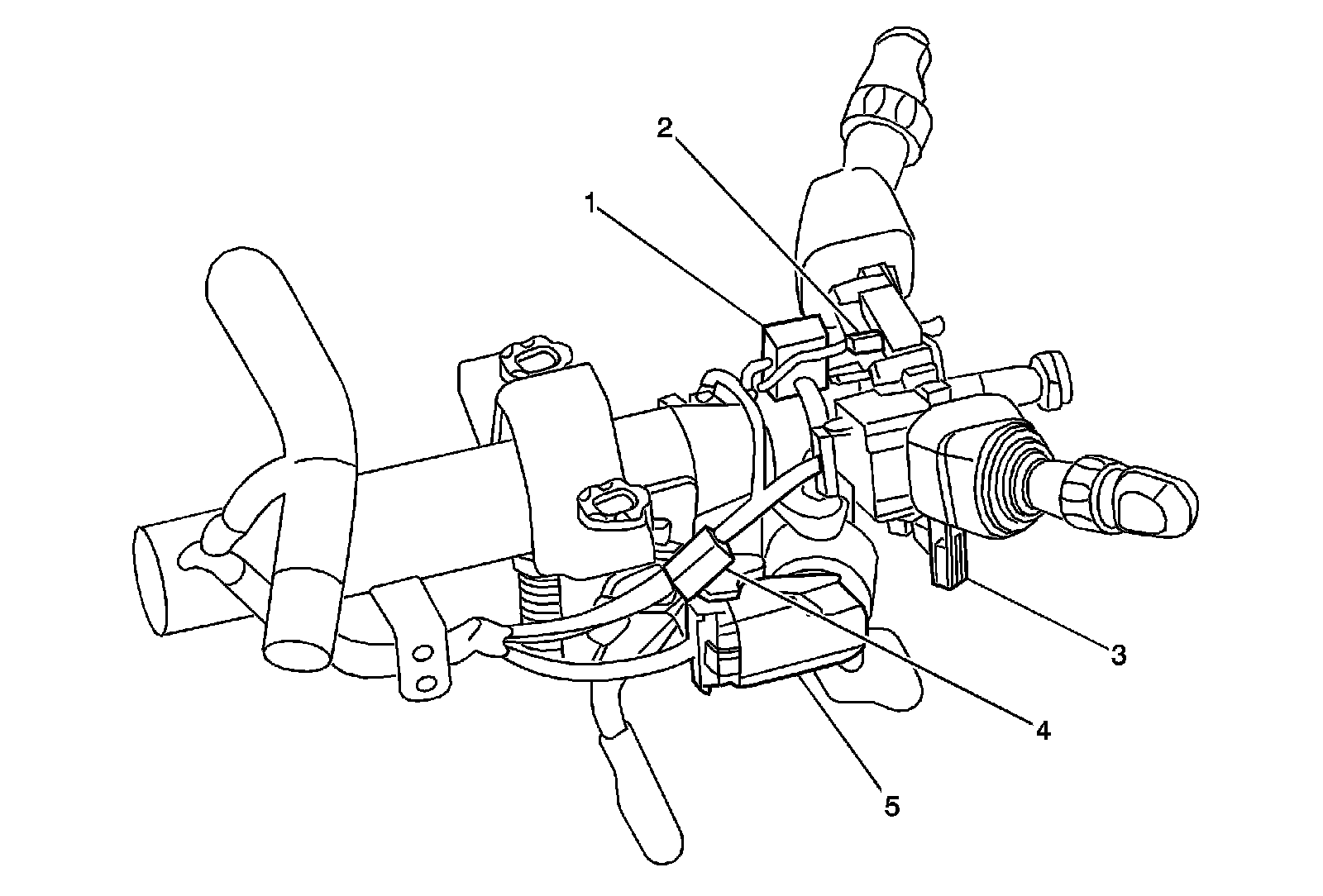

Instrument Panel Harness Routing - Steering Column
1 - Wiper Switch
2 - Horn Switch
3 - Headlamp Switch
4 - Light Switch
5 - Ignition Switch

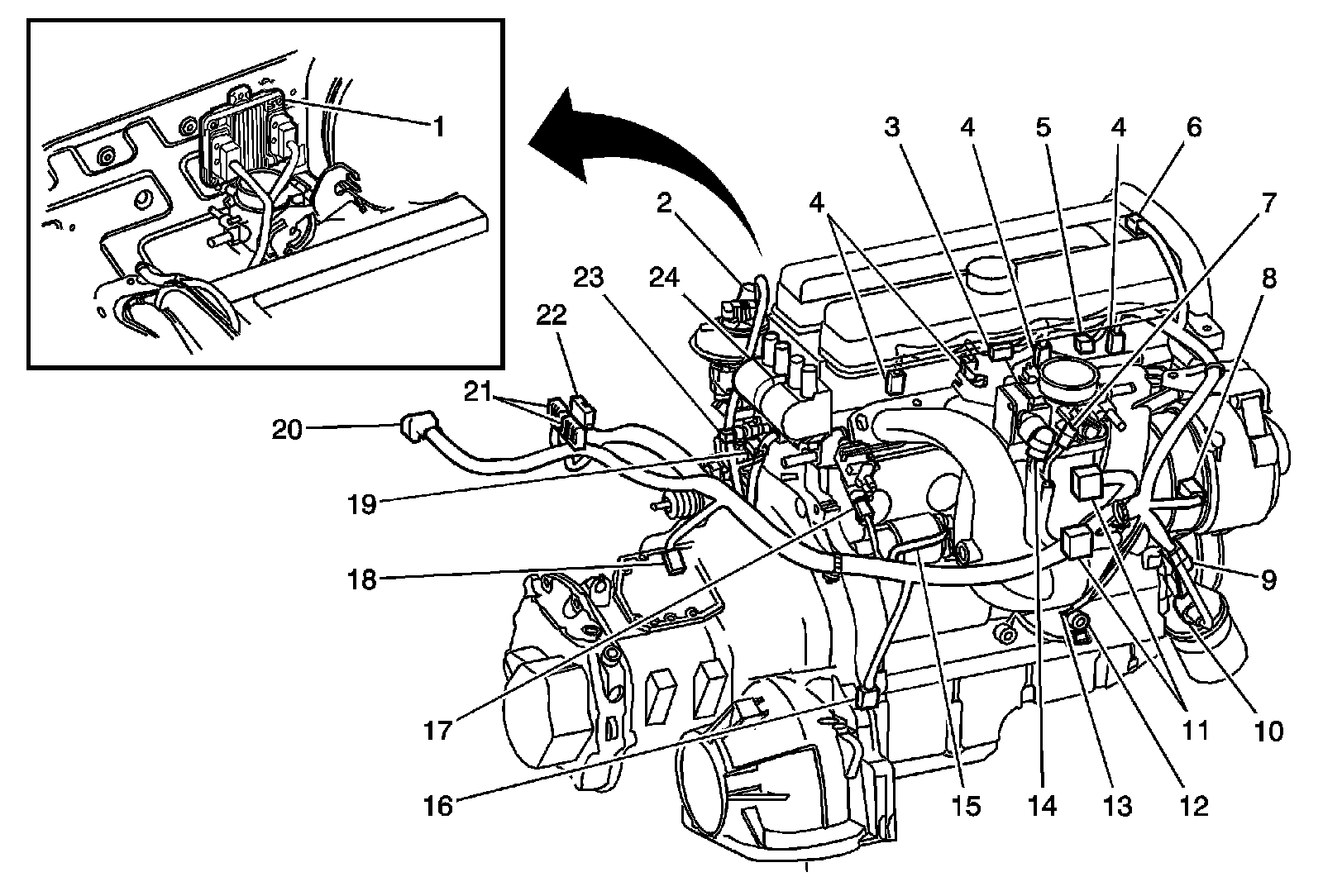

Engine Harness Routing - MR140/HV240
1 - Engine Control Module (ECM)
2 - Linear Exhaust Gas Recirculation (EGR) Valve
3 - Manifold Absolute Pressure (MAP) Sensor
4 - Fuel Injectors
4 - Fuel Injector
4 - Fuel Injector
5 - Crankshaft Position (CKP) Sensor
6 - Camshaft Position (CMP) Sensor
7 - Throttle Position (TP) Sensor
8 - Generator
9 - Knock Sensor (KS)
10 - Oil Pressure Switch
11 - Engine Control Module (ECM)
12 - G104
13 - G107
14 - Idle Air Control (IAC) Valve
15 - Starter
16 - Vehicle Speed Sensor (VSS)
17 - Evaporative Emissions (EVAP) Purge Solenoid Valve
18 - Back Up Lamp Switch
19 - Heated Oxygen Sensor 1 (HO2S1)
20 - C108
21 - C103, C106
22 - C109
23 - Engine Coolant Temperature (ECT) Sensor
24 - Ignition Coil Module
Engine Harness Routing - MT34
1 - C103, C106
2 - C109
3 - Ignition Coil Module
4 - Linear Exhaust Gas Recirculation (EGR) Valve
5 - Engine Control Module (ECM)
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Fuel Injectors
7 - Fuel Injector
7 - Fuel Injector
8 - Crankshaft Position (CKP) Sensor
9 - Camshaft Position (CMP) Sensor
10 - Throttle Position (TP) Sensor
11 - Generator
12 - Knock Sensor (KS)
13 - Oil Pressure Switch
14 - Engine Control Module (ECM)
15 - G104
16 - G107
17 - Starter
18 - Vehicle Speed Sensor (VSS)
19 - Evaporative Emissions (EVAP) Purge Solenoid Valve
20 - Back Up Lamp Switch
21 - Heated Oxygen Sensor 1 (HO2S1)
22 - C108

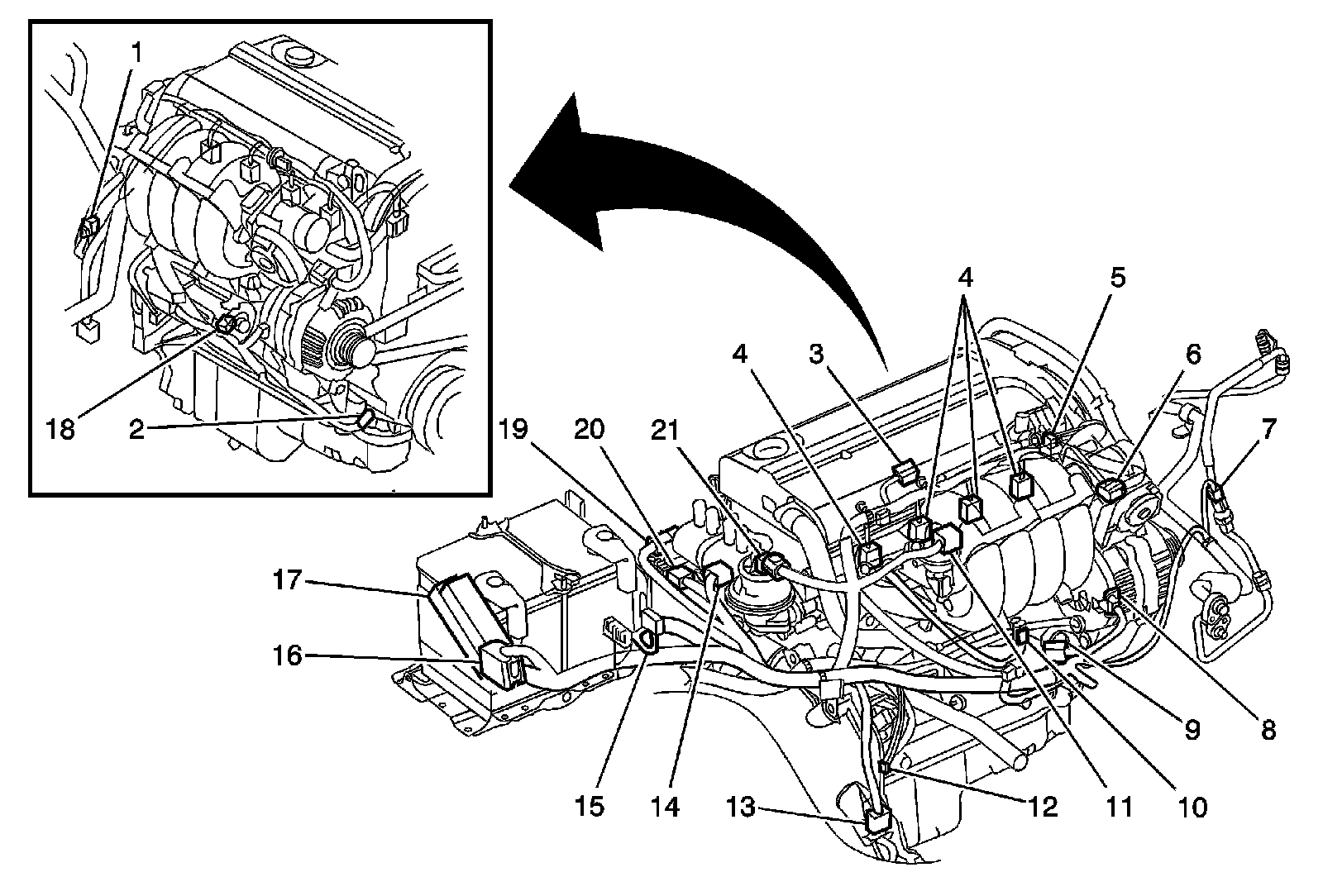

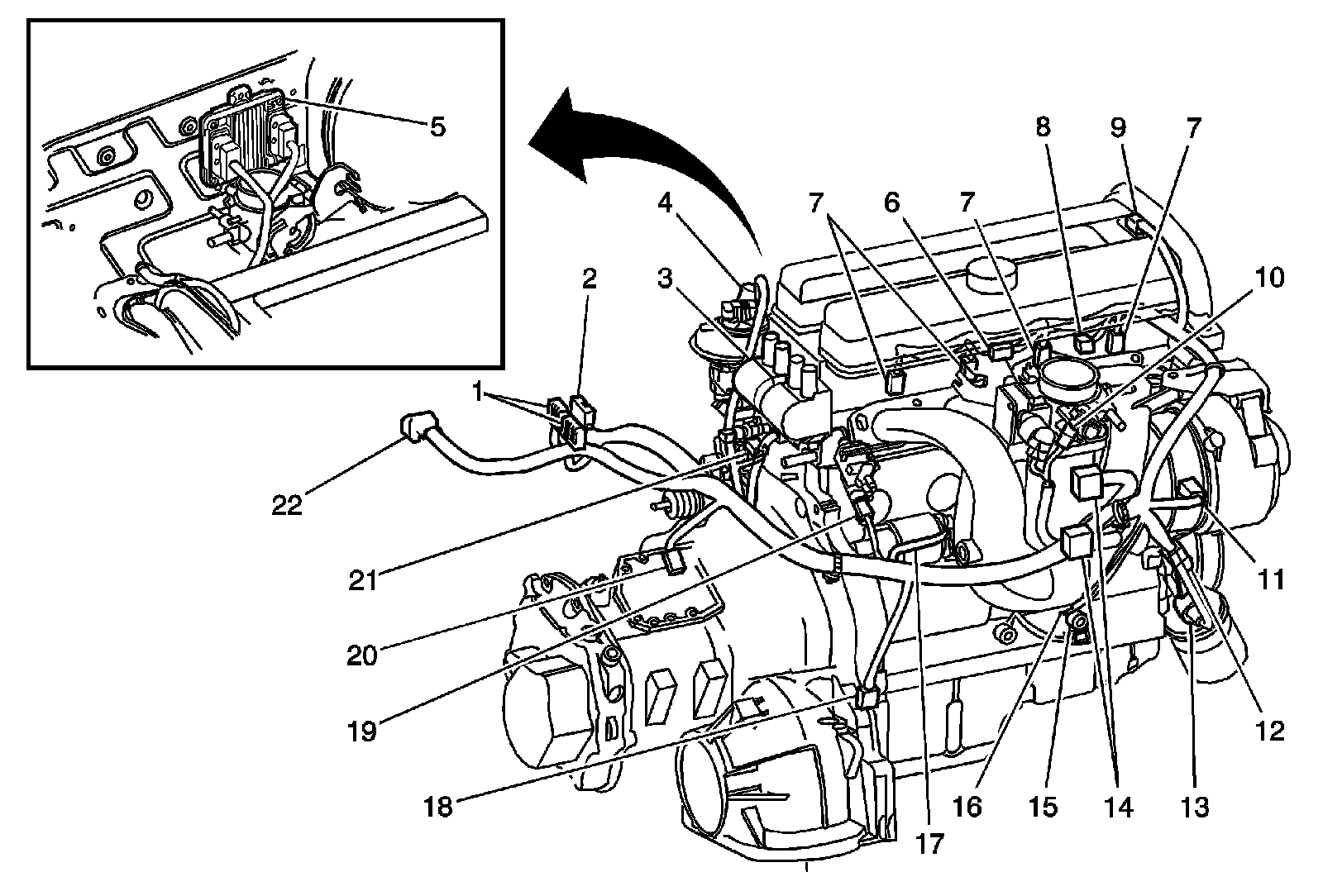

Engine Harness Routing - Sirius D4
1 - Intake Manifold Tuning Valve Solenoid
2 - Exhaust Gas Recirculation (EGR) Valve
3 - Oil Pressure Switch
4 - Oxygen Sensor
5 - Crankshaft Position (CKP) Sensor
6 - Linear EGR Valve
7 - Fuel Injector
8 - Manifold Absolute Pressure (MAP) Sensor
9 - Fuel Injectors
10 - Camshaft Position (CMP) Sensor
11 - Throttle Body
12 - A/C Refrigerant Pressure Sensor
13 - Generator
14 - Knock Sensor (KS)
15 - Intake Manifold Tuning Valve Solenoid
16 - Intake Air Temperature (IAT) Sensor
17 - Starter
18 - Vehicle Speed Sensor (VSS)
19 - Ignition Coil Module
20 - C103, C106
21 - C108
22 - Engine Control Module (ECM)

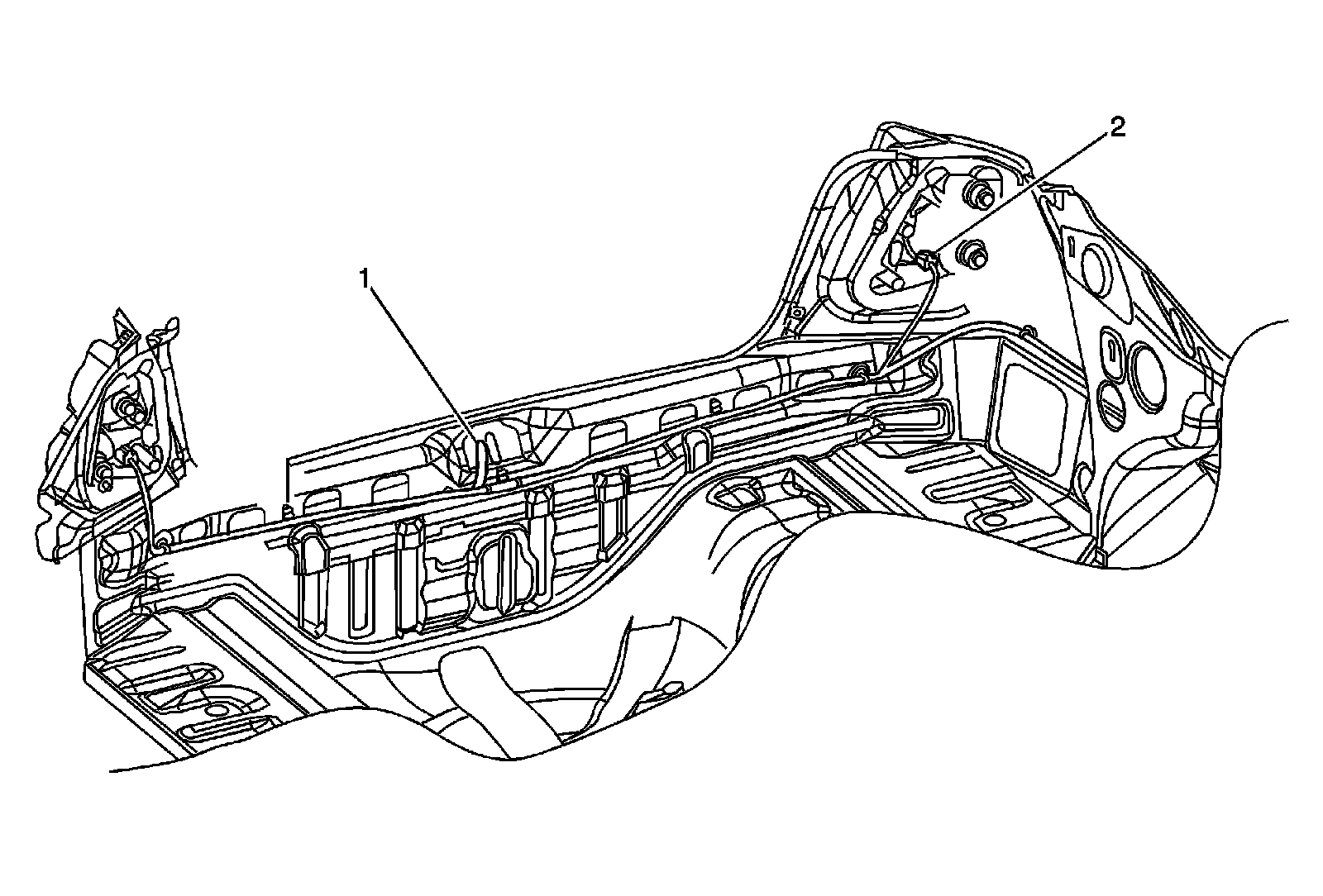

Liftgate Rear Harness Routing
1 - C402
2 - CHMSL
3 - Defog (+)
4 - RR Combination Lamp RH
5 - T/Gate Actuator
6 - Temper Switch
7 - License Lamp
8 - RR Wiper Motor
9 - C406
10 - RR Combination Lamp LH
11 - Defog (-)
12 - C405
13 - C404
14 - C403

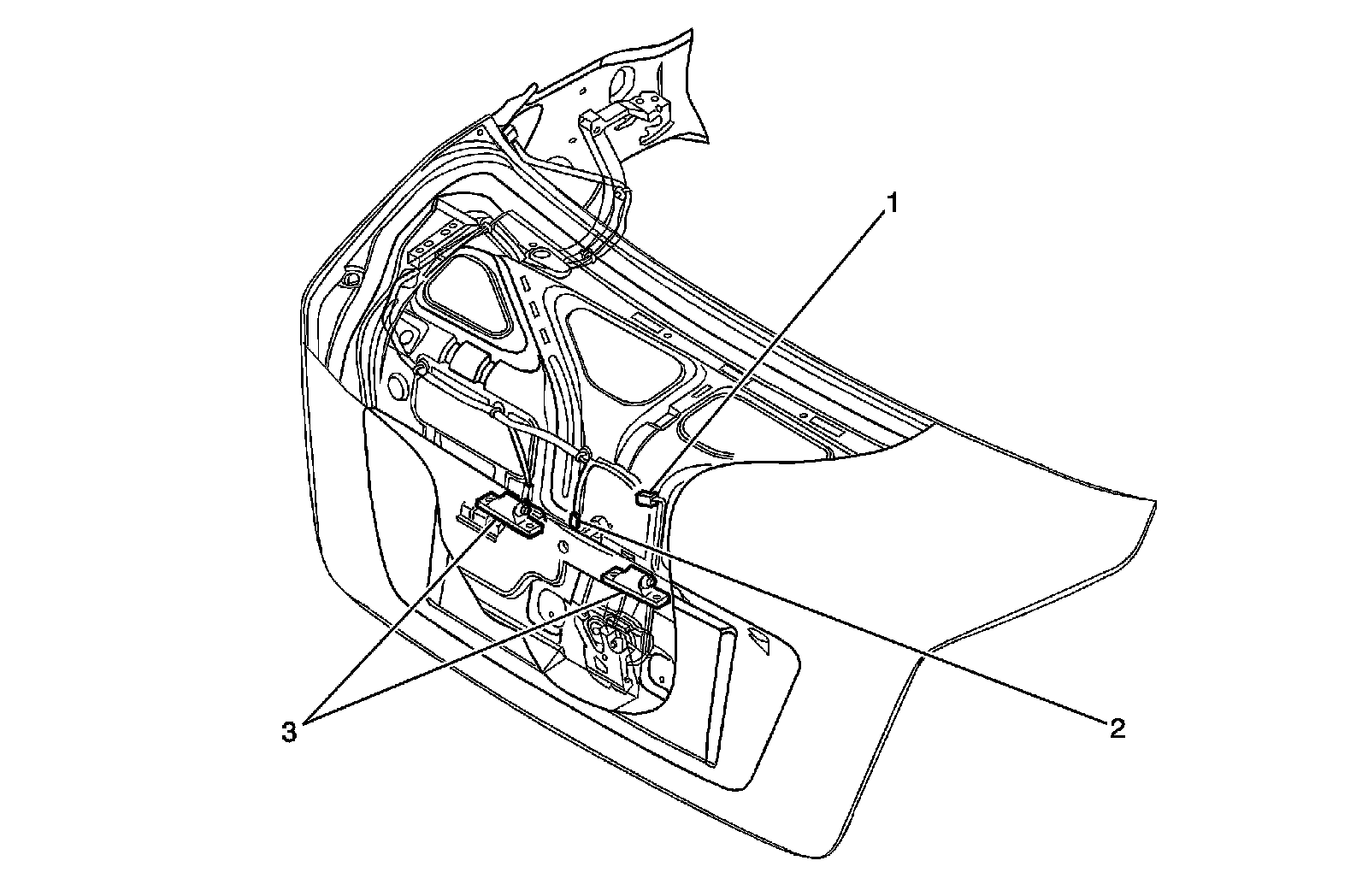

Rear Harness Wiring
1 - Trunk Latch Switch
2 - Theft Deterrent Tamper Switch
3 - License Plate Lamp

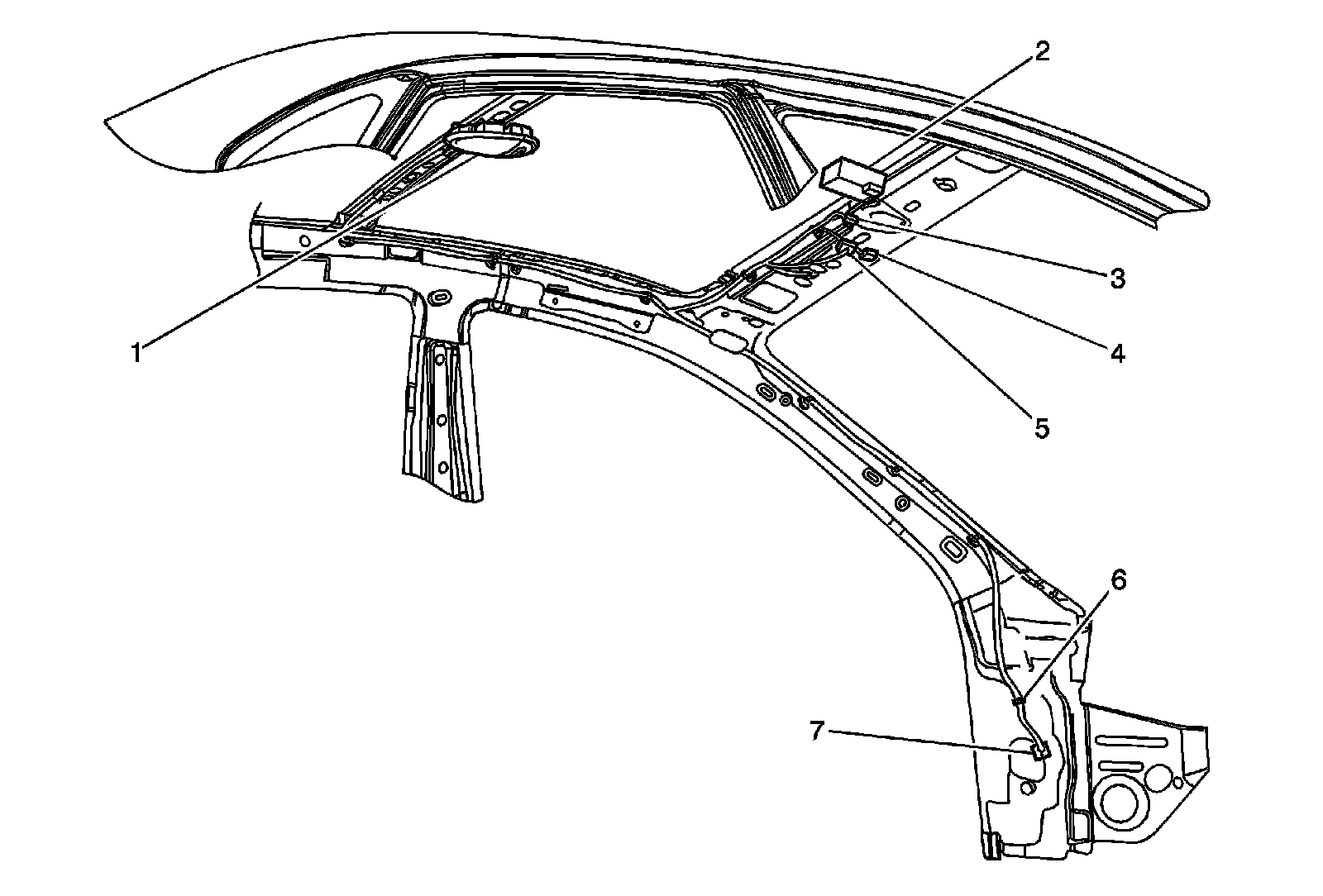

Roof Harness Routing
1 - Dome Lamp
2 - Sunroof Module
3 - Reading Lamp
4 - Rain Sensor
5 - Dome Lamp/Sunroof Switch
6 - G205
7 - C204
Supplemental Inflatable Restraint (SIR) Harness Routing - LHD
1 - Driver Airbag
2 - Passenger Airbag
3 - G202
4 - C301
5 - Sensing and Diagnostic Module
Supplemental Inflatable Restraint (SIR) Harness Routing - RHD
1 - Passenger Airbag
2 - Sensing and Diagnostic Module
3 - C301
4 - Driver Airbag

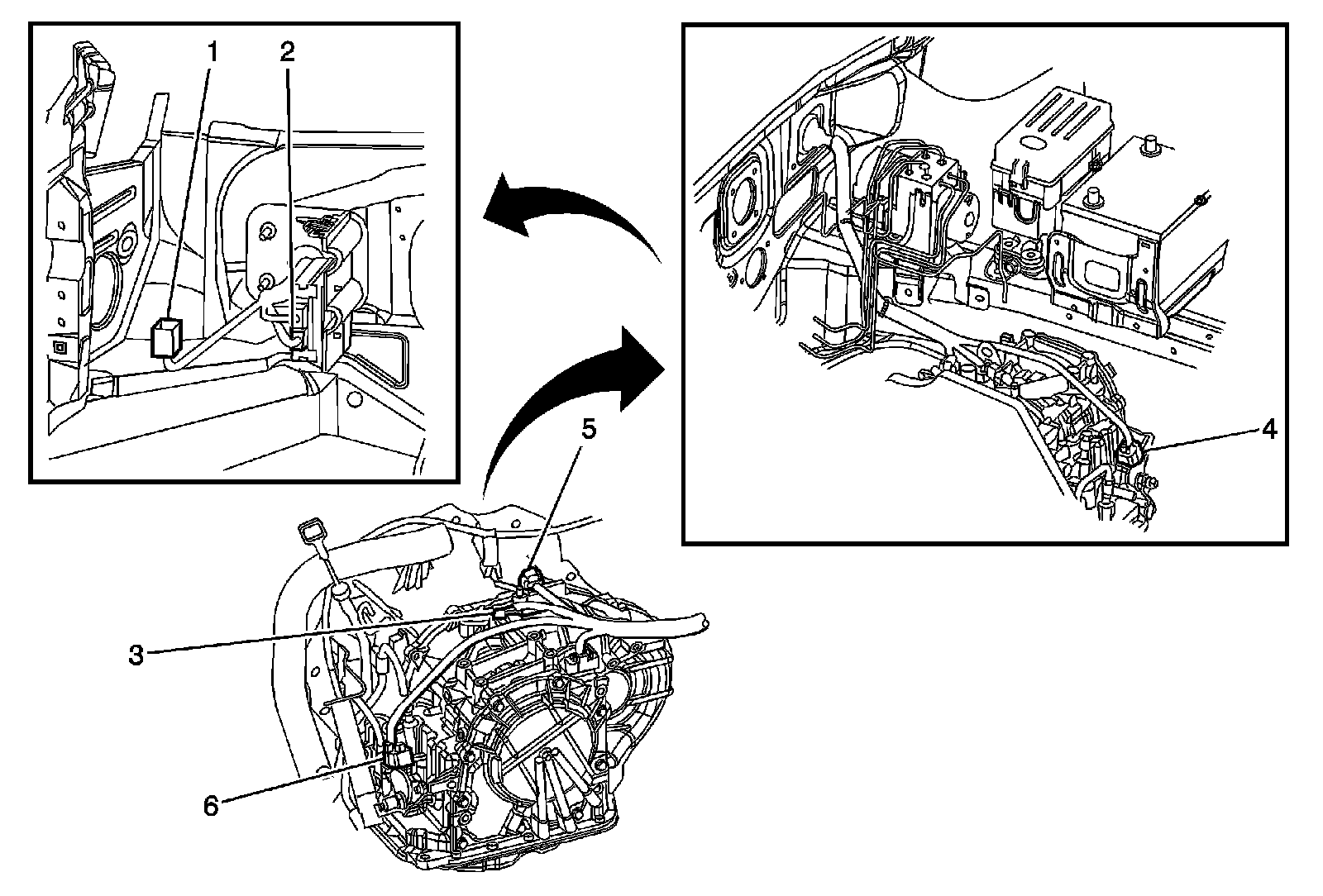

Transmission Control Module (TCM) Harness Routing - Aisin 81-40LE
1 - C206
2 - Transmission Control Module (TCM)
3 - Input Shaft Speed Sensor
4 - Park/Neutral Position (PNP) Switch
5 - Vehicle Speed Sensor (VSS)
6 - Park/Neutral Position (PNP) Switch
Transmission Control Module (TCM) Harness Routing - ZF 4HP 16
1 - C206
2 - Transmission Control Module (TCM)
3 - Park/Neutral Position (PNP) Switch
Trunk Harness Routing
1 - G401
2 - Tail Lamp
Trunk Harness Routing - Hatchback
1 - Tail Lamp - Right
2 - G401
3 - Tail Lamp - Left
4 - C401
