13. Side Shaft Installation




Side Shaft Installation

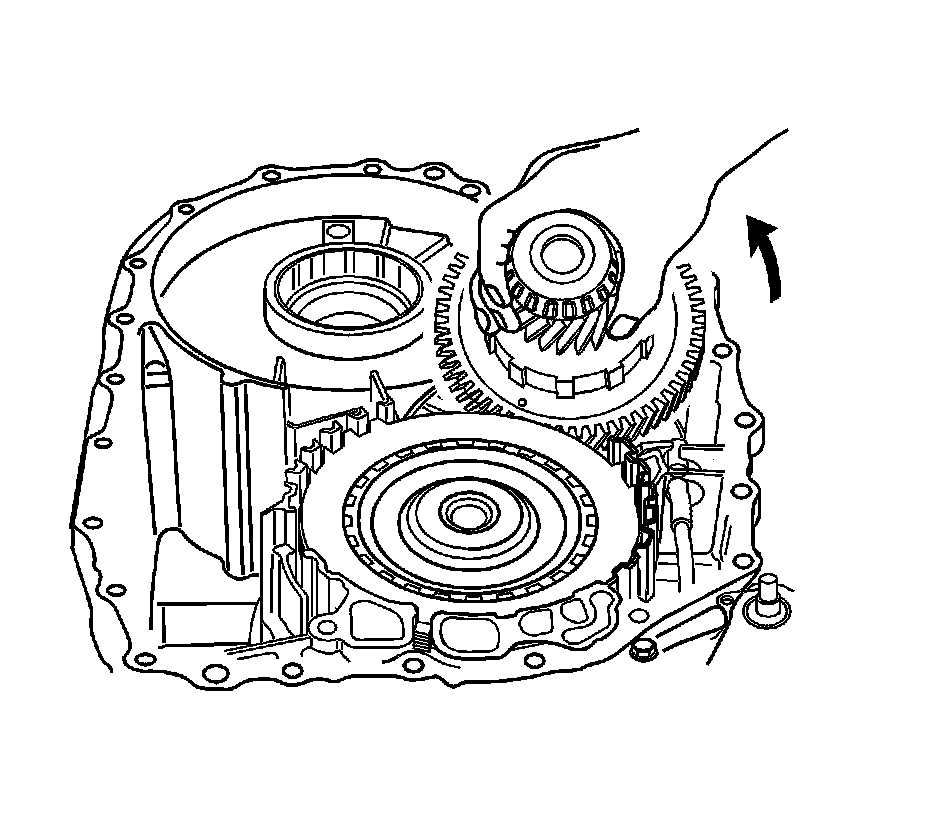

1. Tilt and install the side shaft.
2. Install the differential. Refer to Differential Assembly Installation 23. Differential Assembly Installation.
