Home >> Chevrolet >> 2004 >> Optra (CANADA) L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Shift Lock Control Schematics

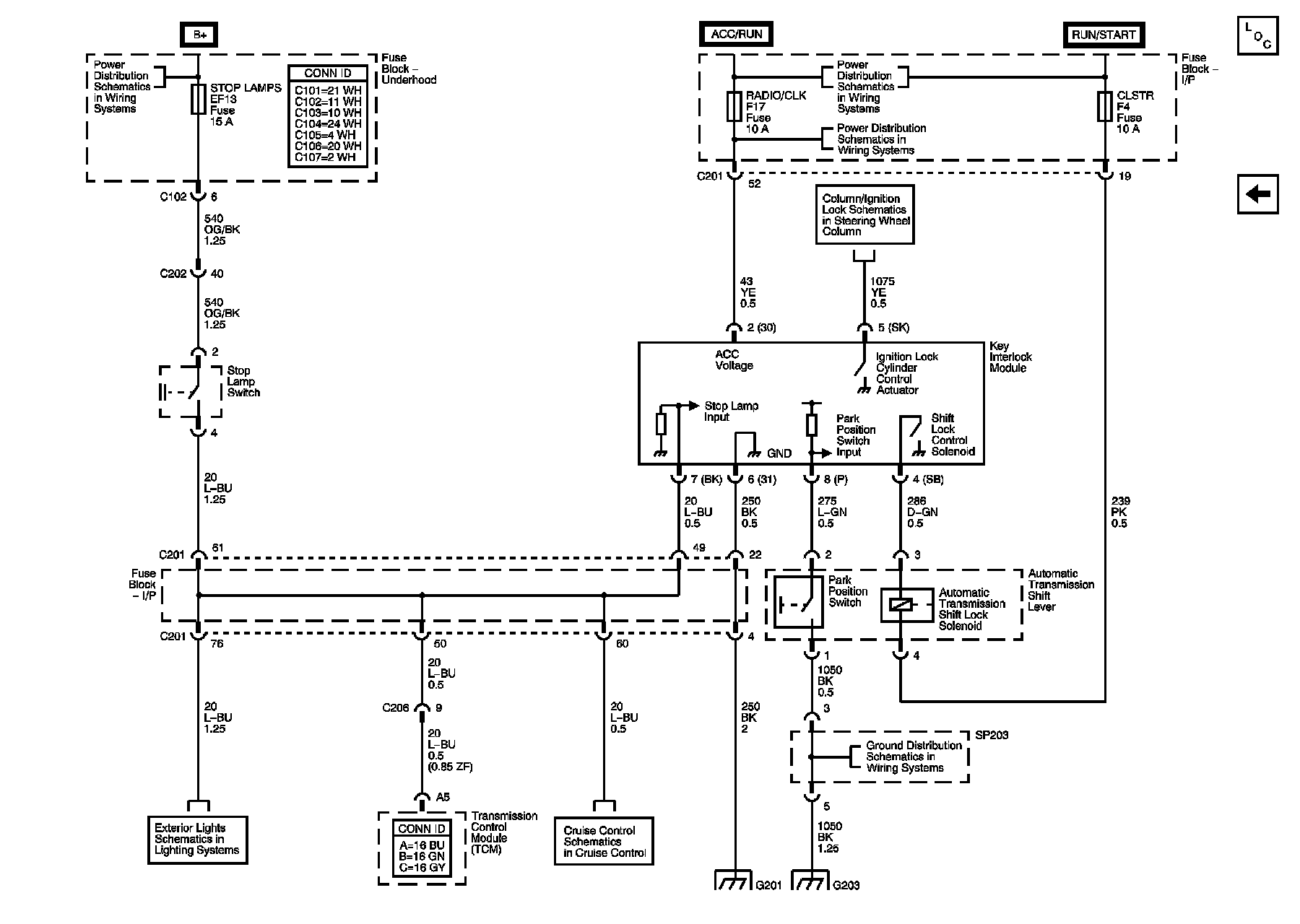

w/Ignition Lock Cylinder Control Actuator

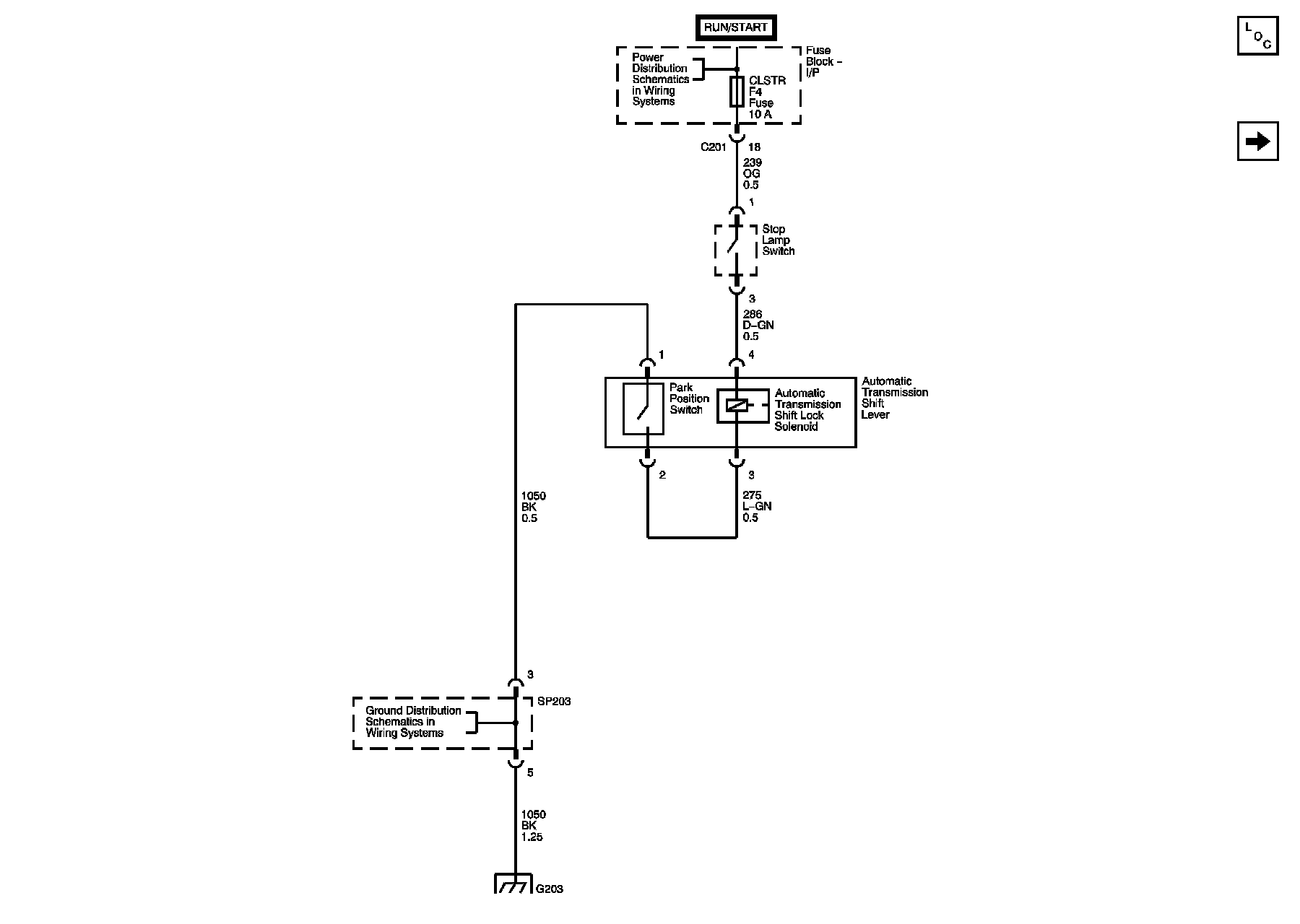

w/o Ignition Lock Cylinder Control Actuator
