Multiple Junction Connector
>>
C300 - C399
C300 - C399
In-Line Connector C313 (Wheel Speed Sensors):

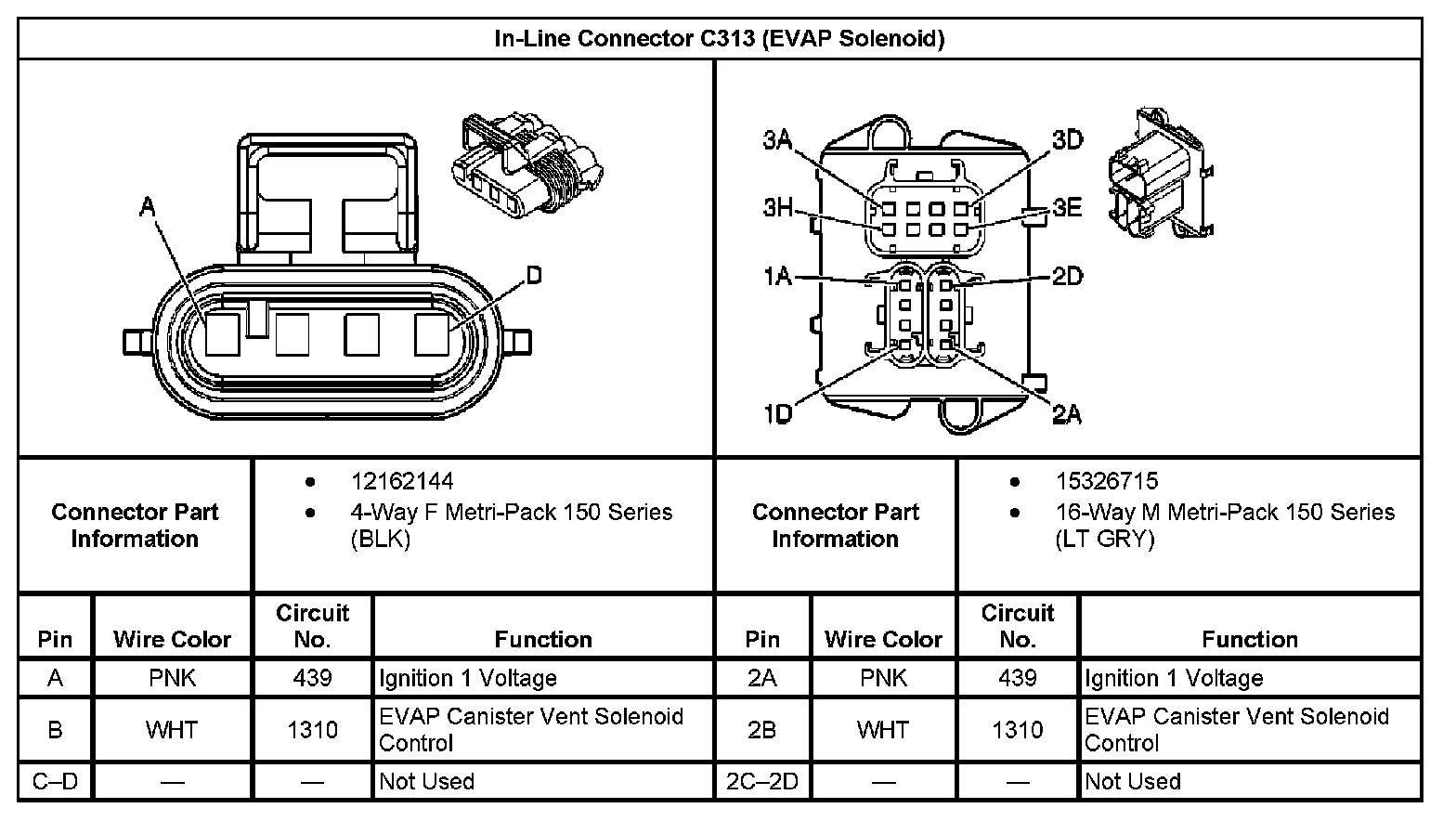

In-Line Connector C313 (EVAP Solenoid):

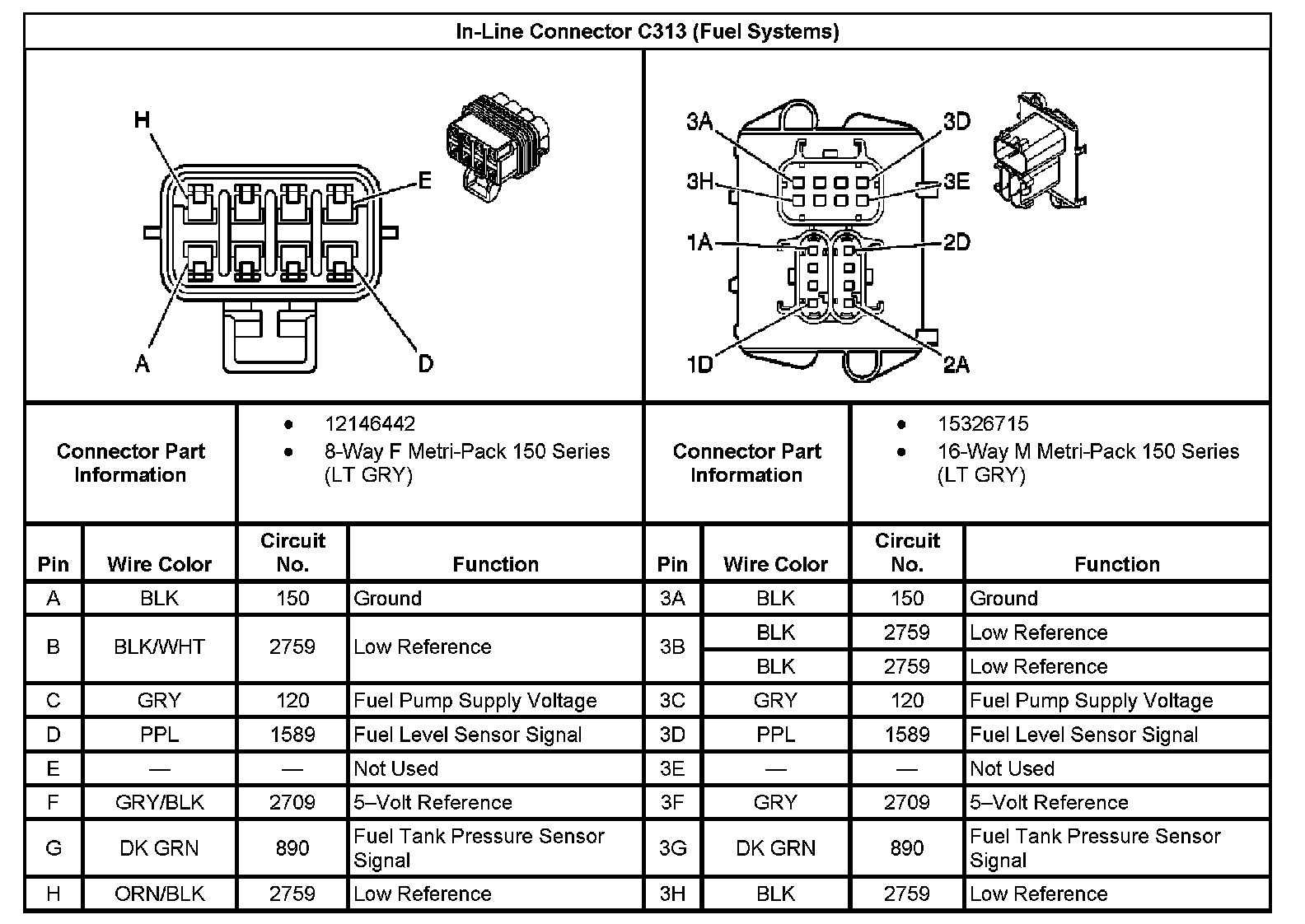

In-Line Connector C313 (Fuel Systems):
