Exterior Lights Schematics



EXTERIOR LIGHTS SCHEMATICS

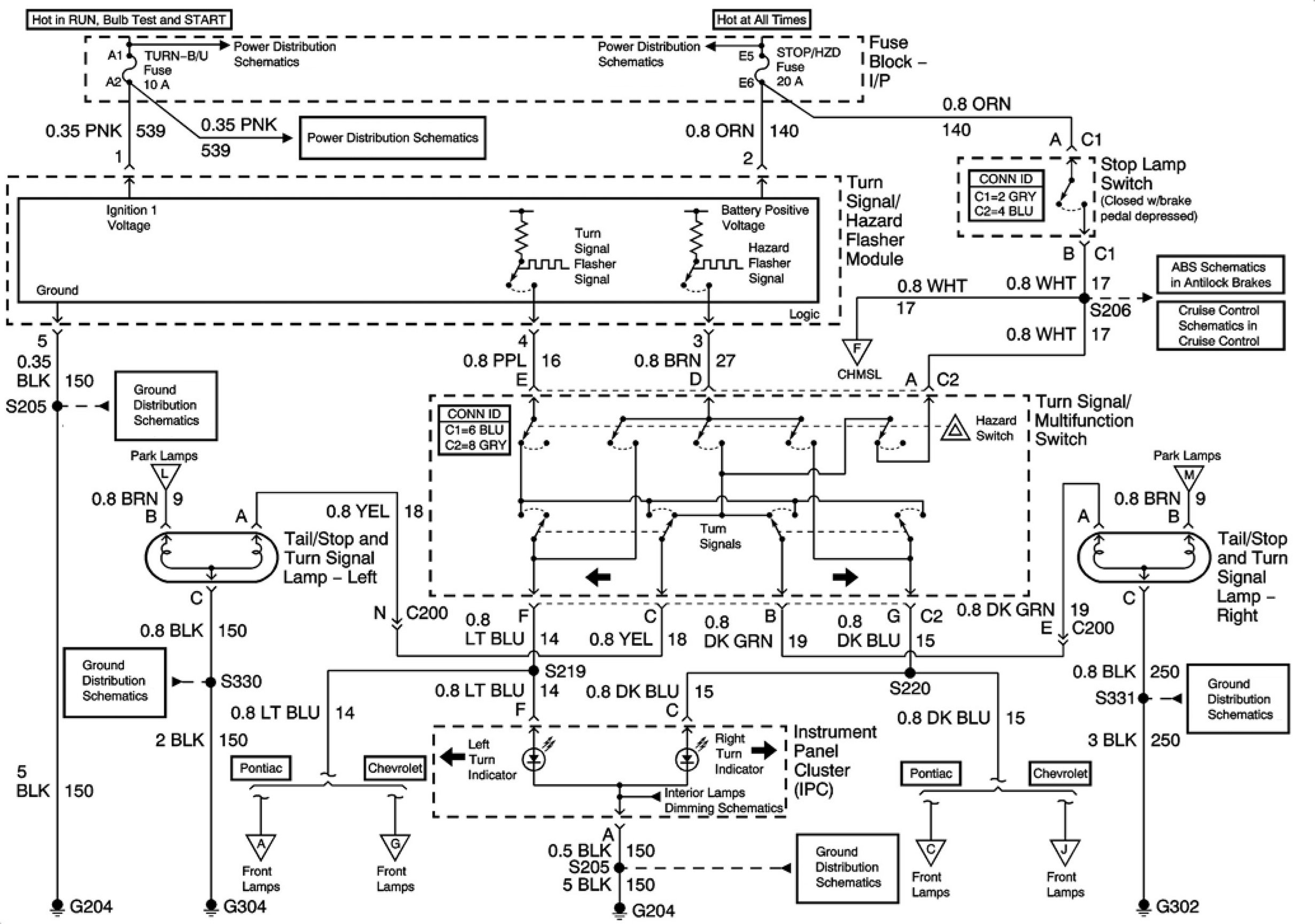

Lamp Controls, Rear Turn Lamps and Indicators

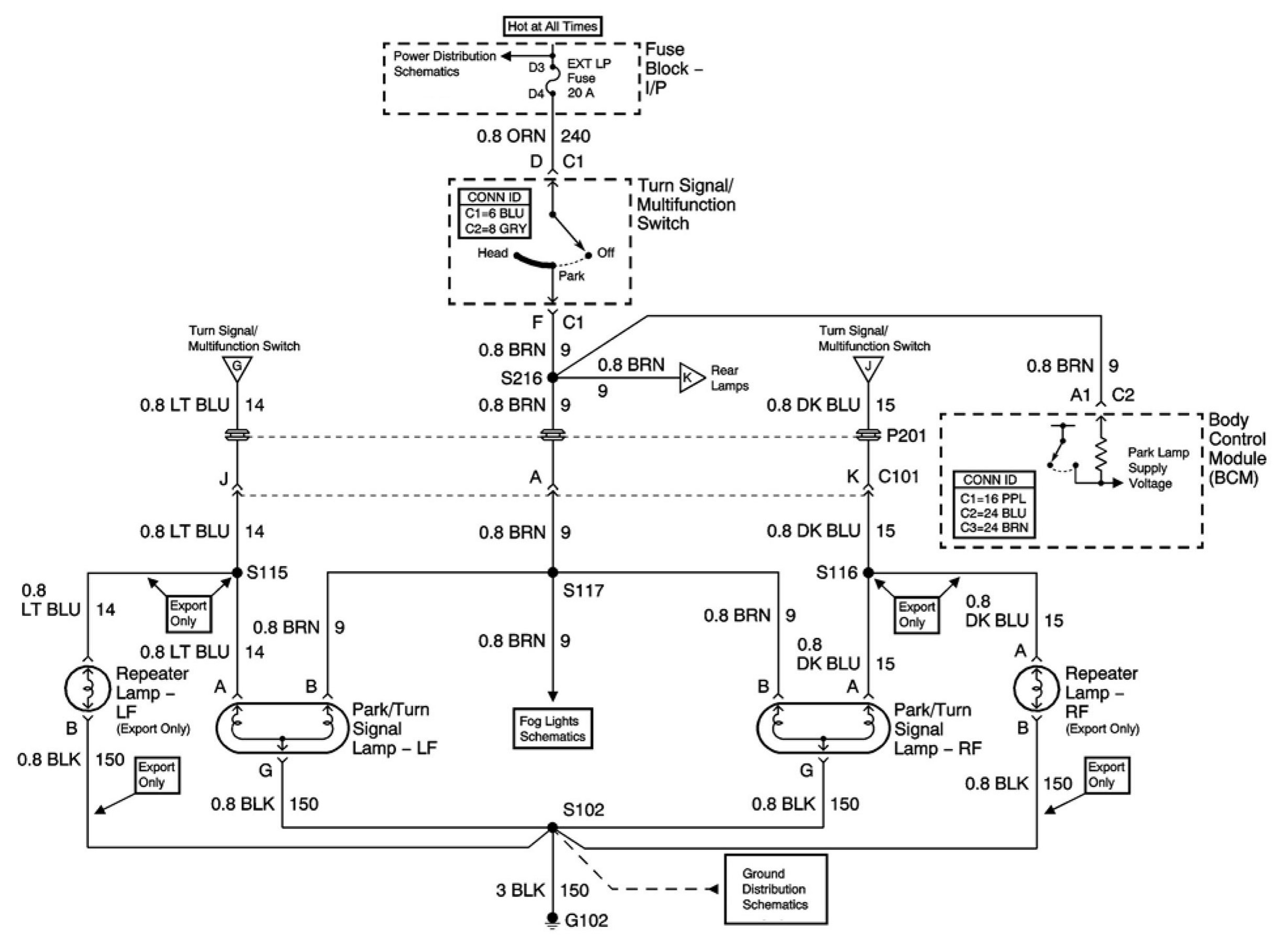

Park Lamps Controls and Repeater Lamps







Rear Lamps

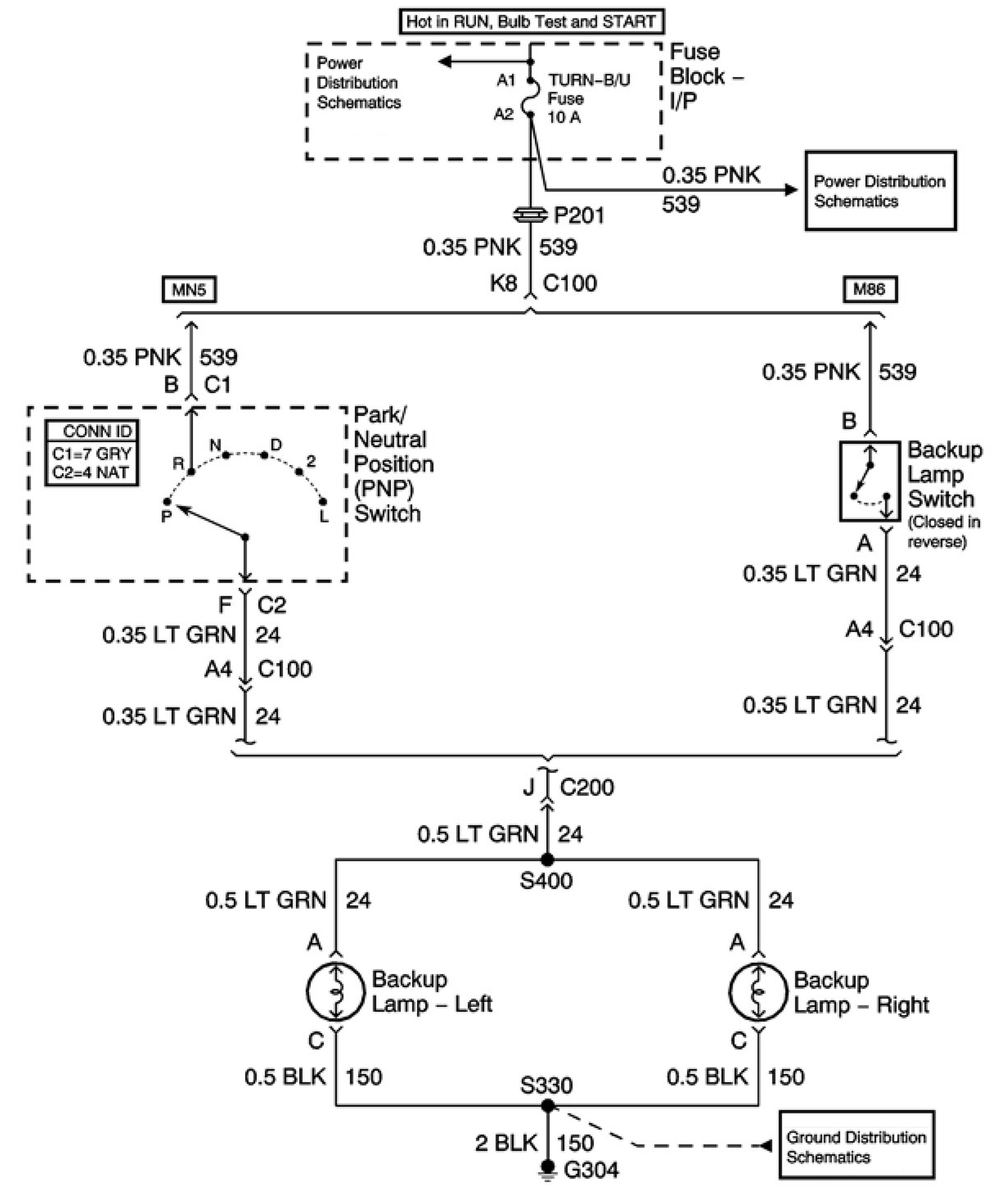

Backup Lamps

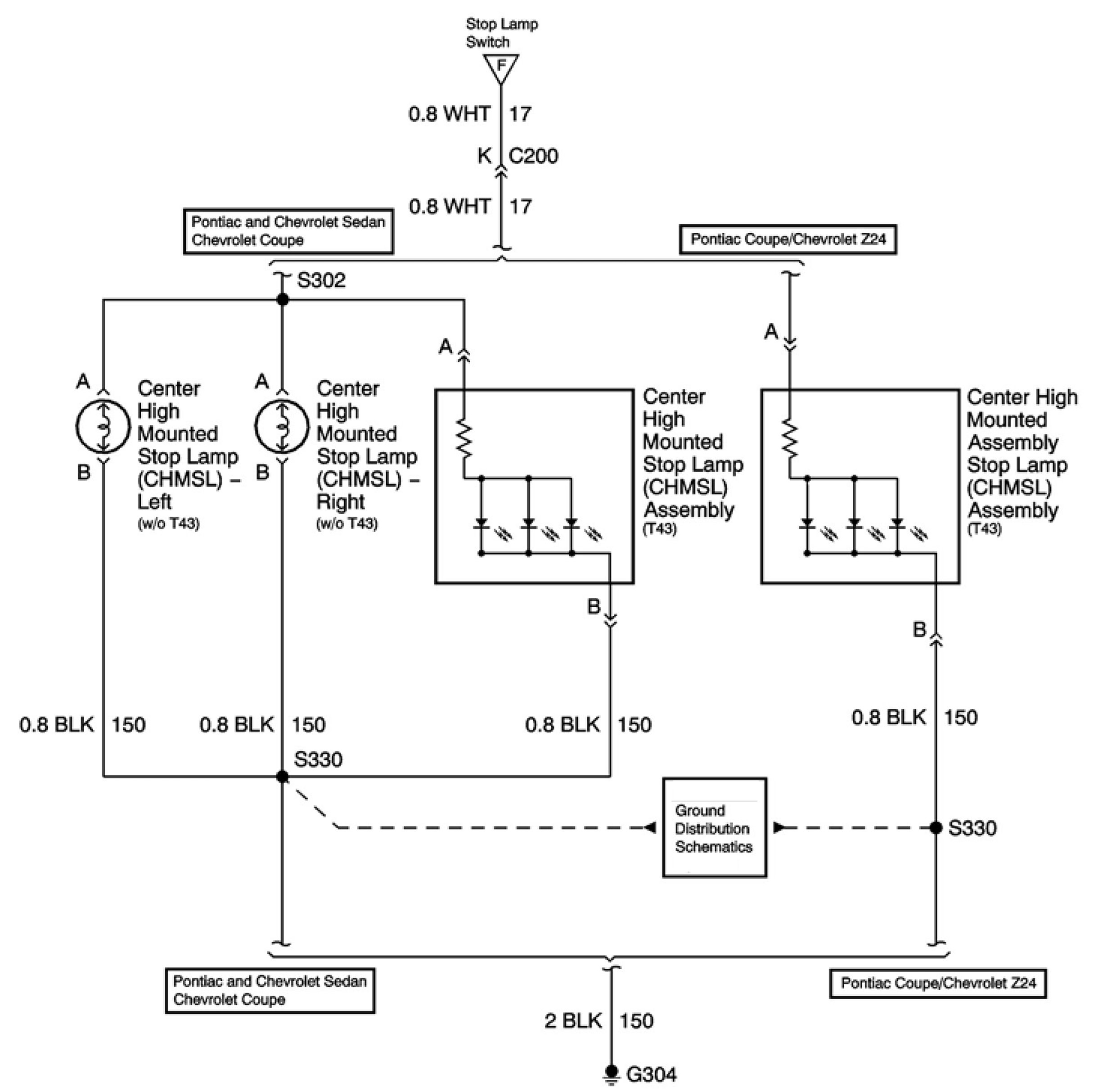

Center High Mounted Stop Lamps
