Dimmer Switch: Service and Repair

INSTRUMENT PANEL (I/P) DIMMER SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) cluster trim panel to access the dimmer switch.

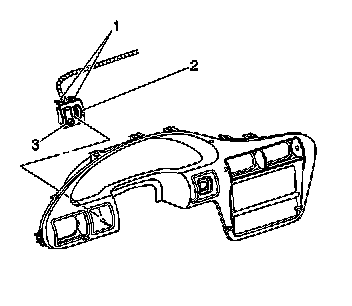

2. Using a small flat-bladed tool, release the retainers (1) on the dimmer switch housing.
3. Remove the dimmer switch (3) housing from the I/P cluster trim panel.

INSTALLATION PROCEDURE




1. Install the dimmer switch (3) housing to the I/P cluster trim panel, pressing into place until fully seated.
2. Install the to the I/P cluster trim panel.
