Shift Solenoid, A/T

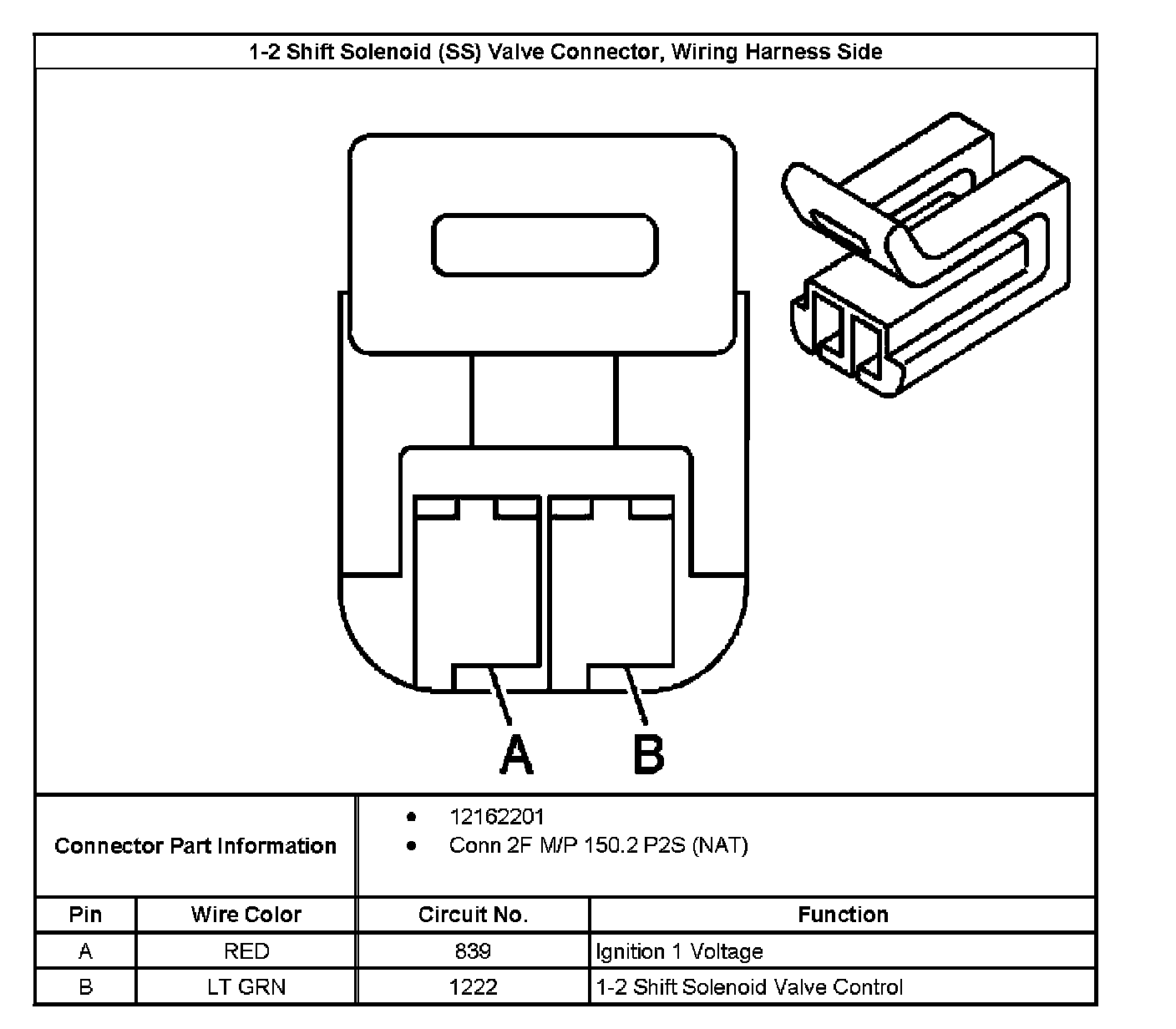

1-2 Shift Solenoid Valve Connector Wiring Harness Side:



2-3 Shift Solenoid Valve Connector Wiring Harness Side:
