Brake Switch (Cruise Control)
Brake Switch (Cruise Control)

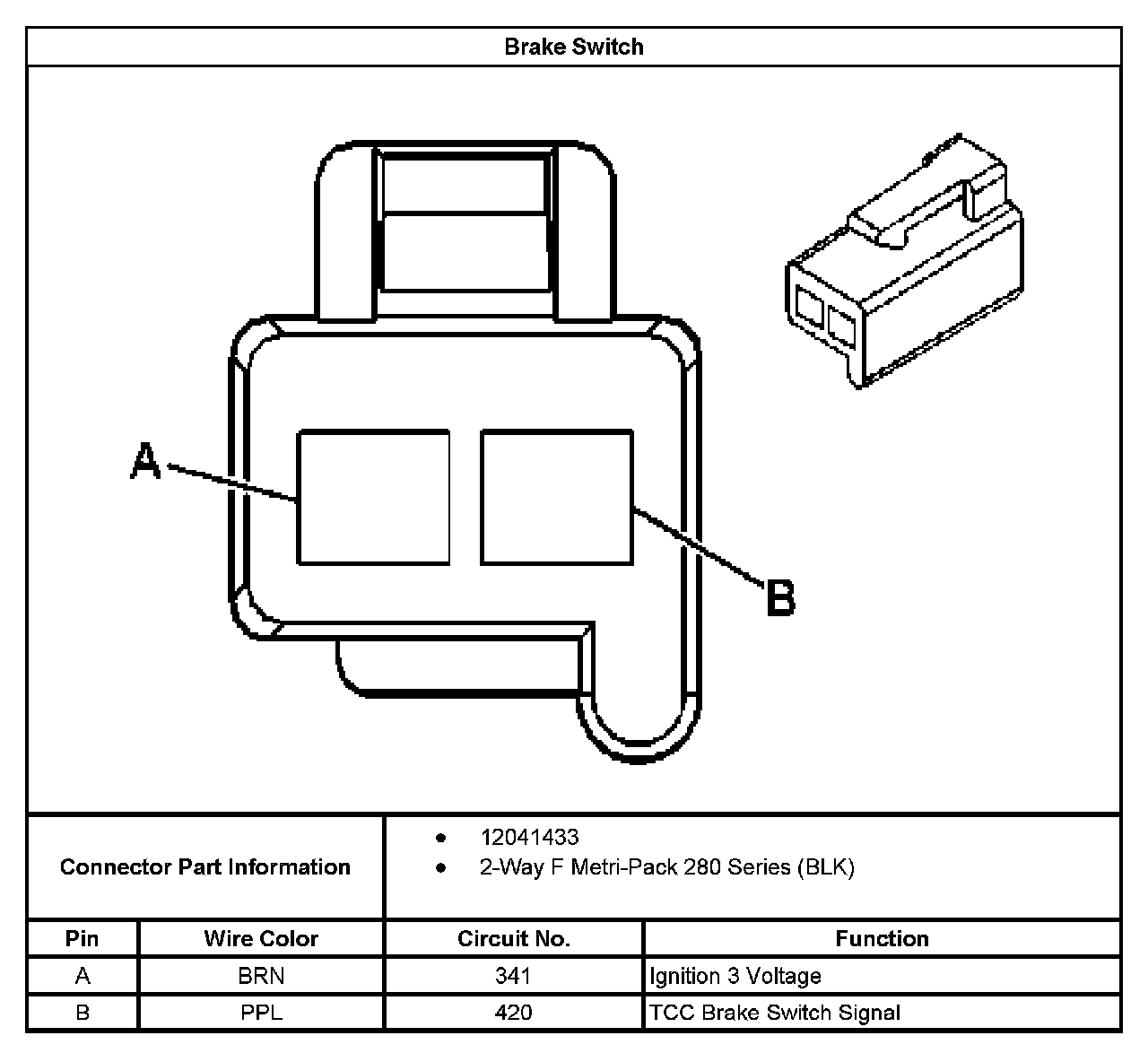

Brake Switch:

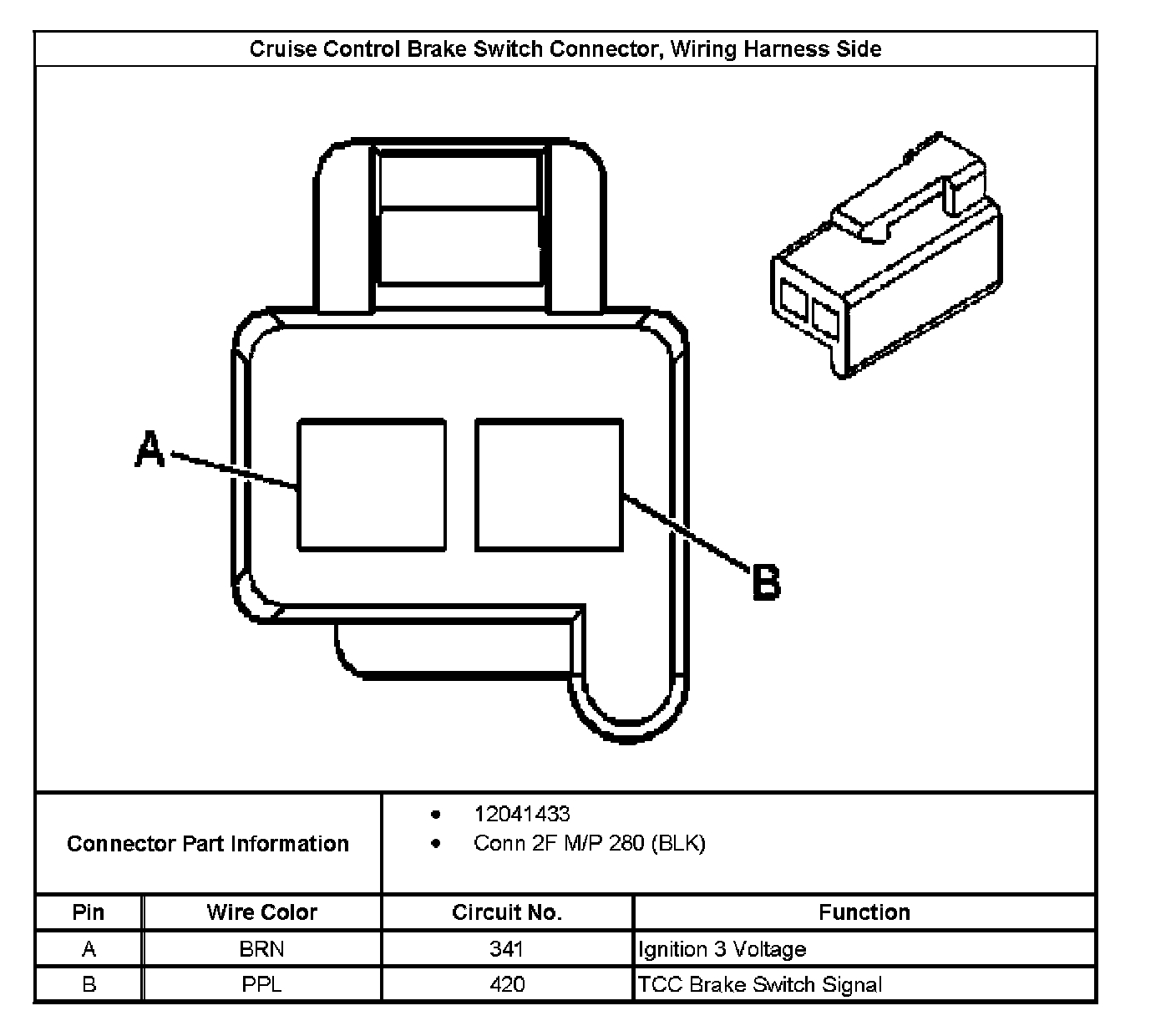

Cruise Control Brake Switch Connector Wiring Harness Side:
