C413
C413

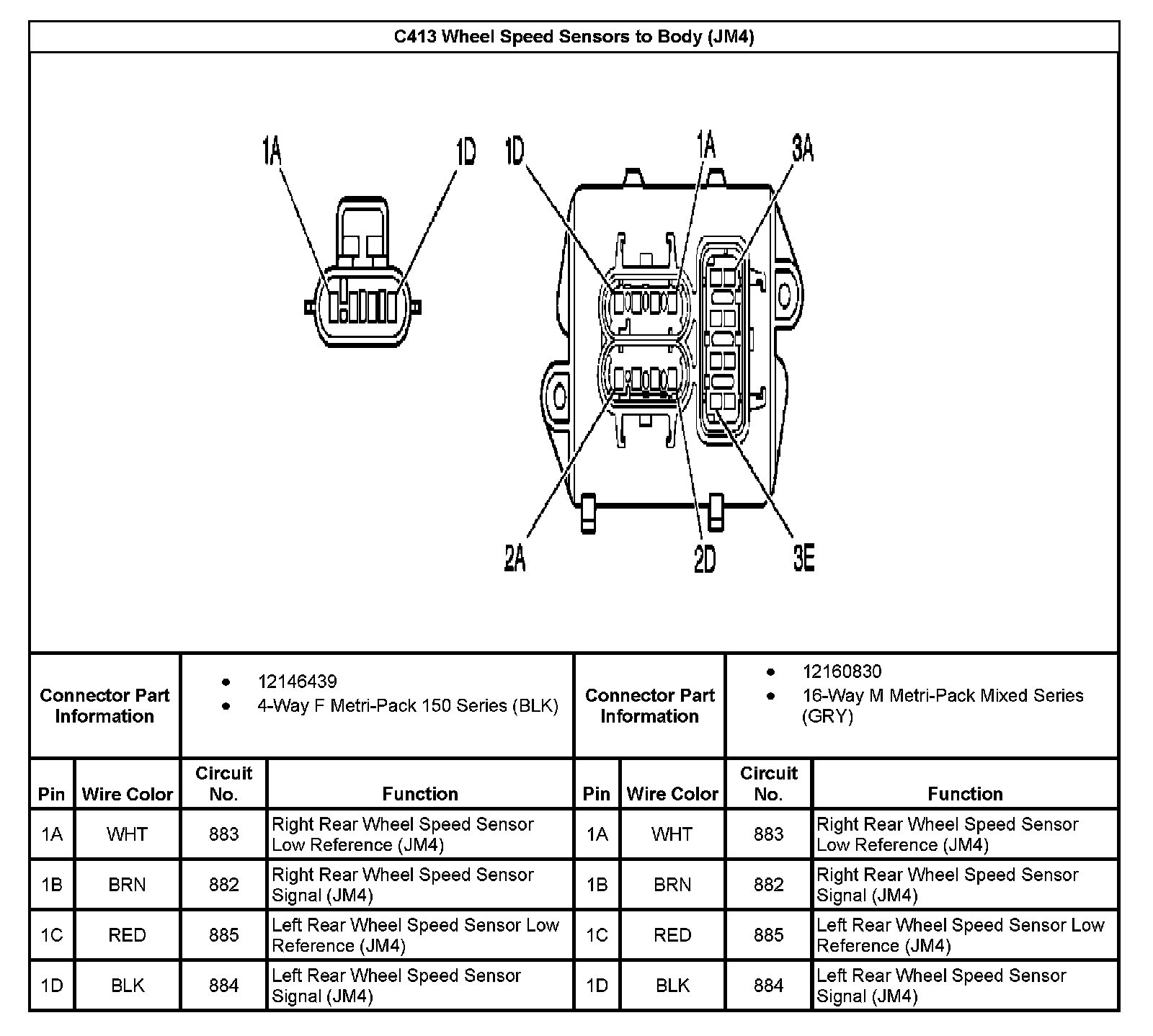

C413 Wheel Speed Sensors To Body (With RPO Code JM4):
C413 Canister Vent To Body:

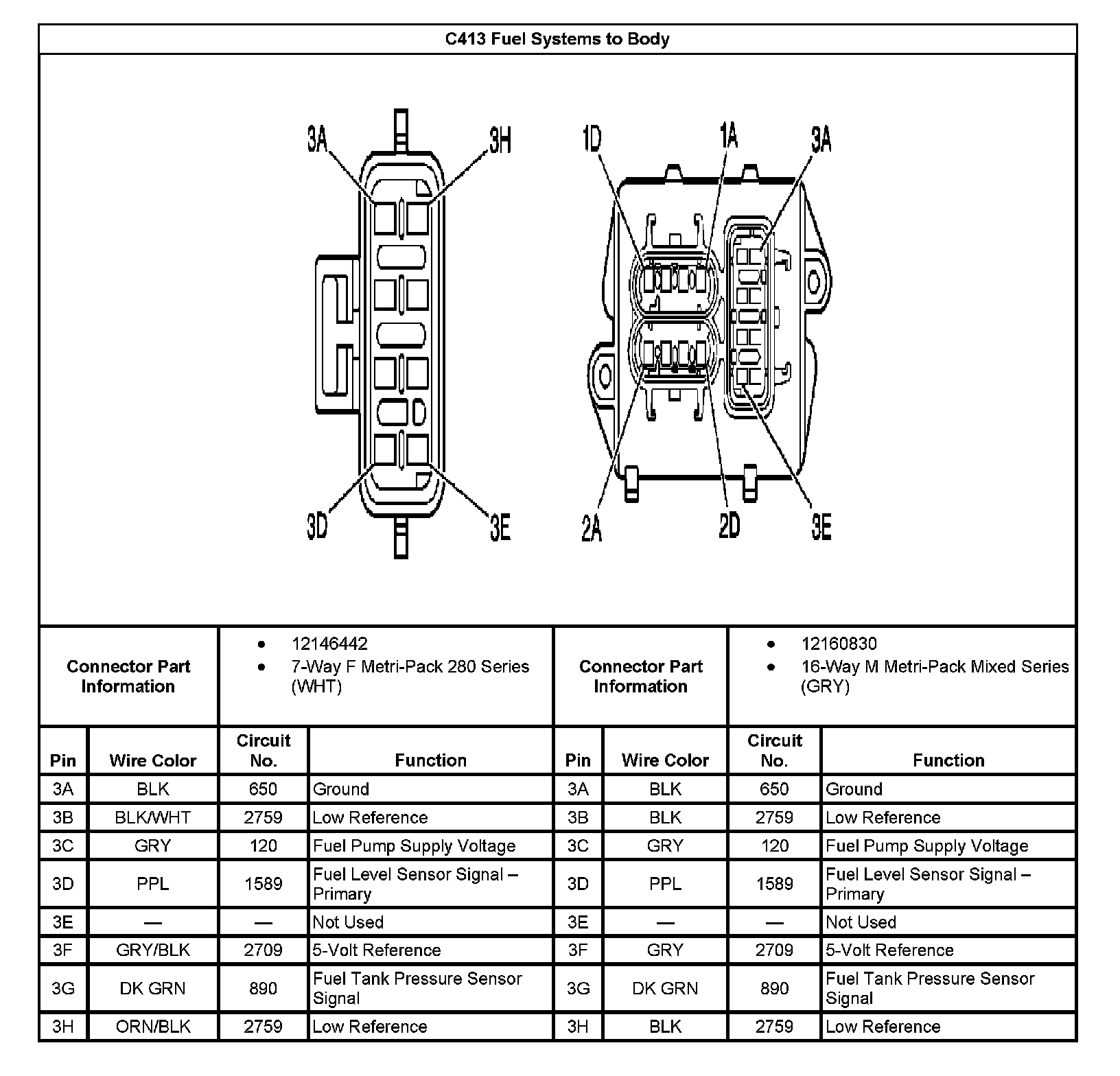

C413 Fuel Systems To Body:
