Home >> Chevrolet >> 2005 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram

System Diagram

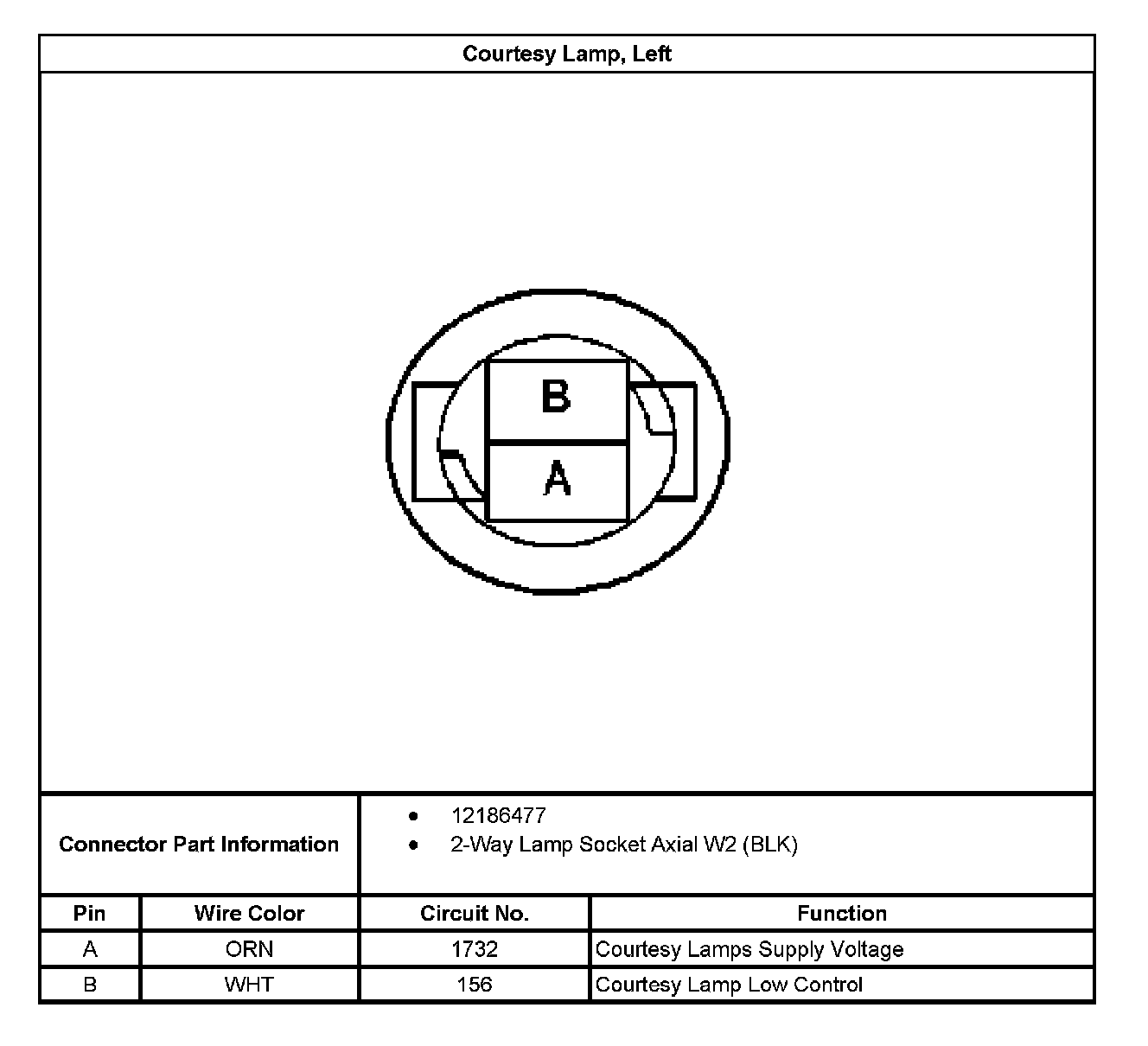

Courtesy Lamp, Left:



Courtesy Lamp, Right:

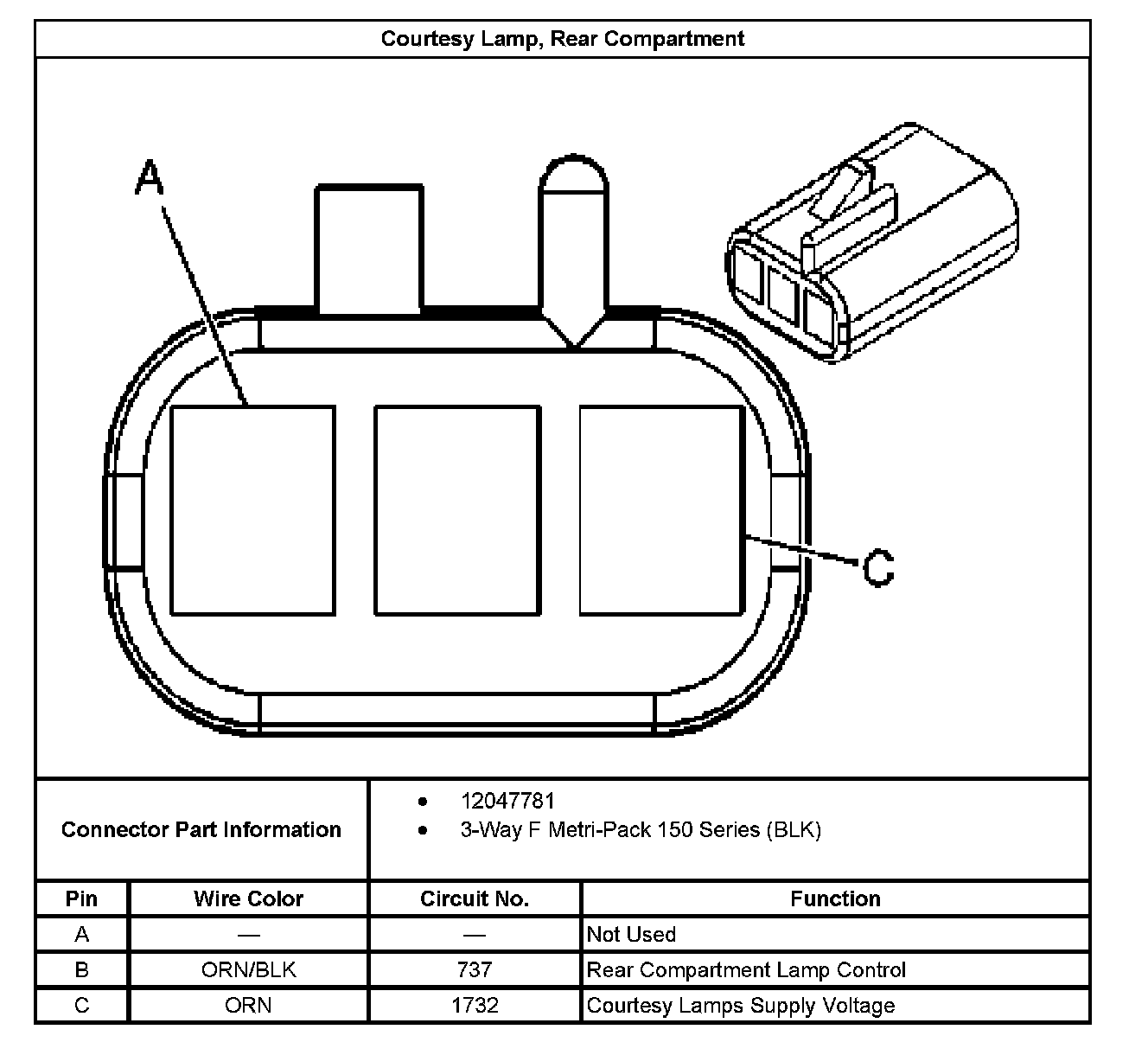

Courtesy Lamp, Rear Compartment:
