Door Switch

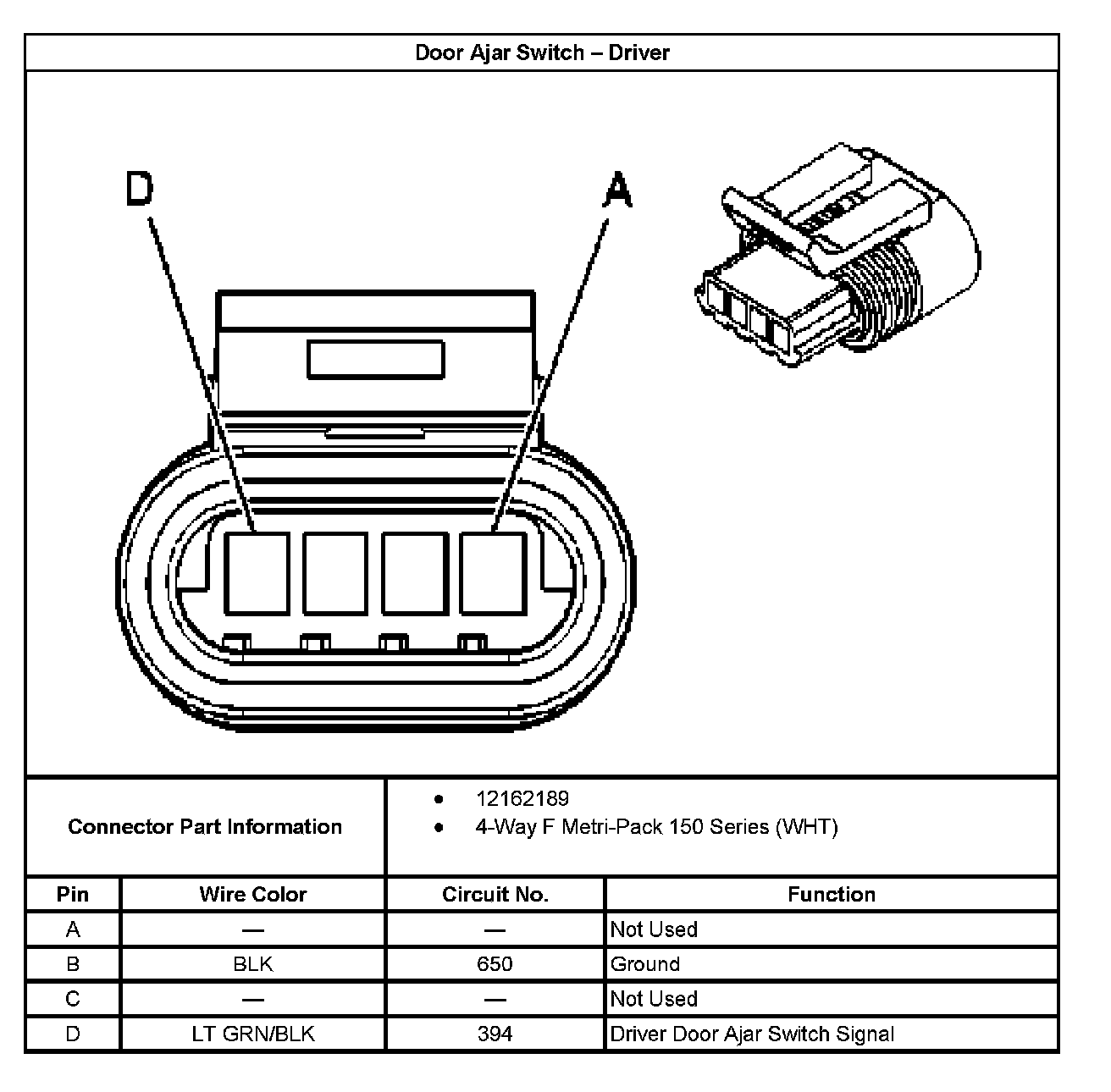

Door Ajar Switch - Driver:

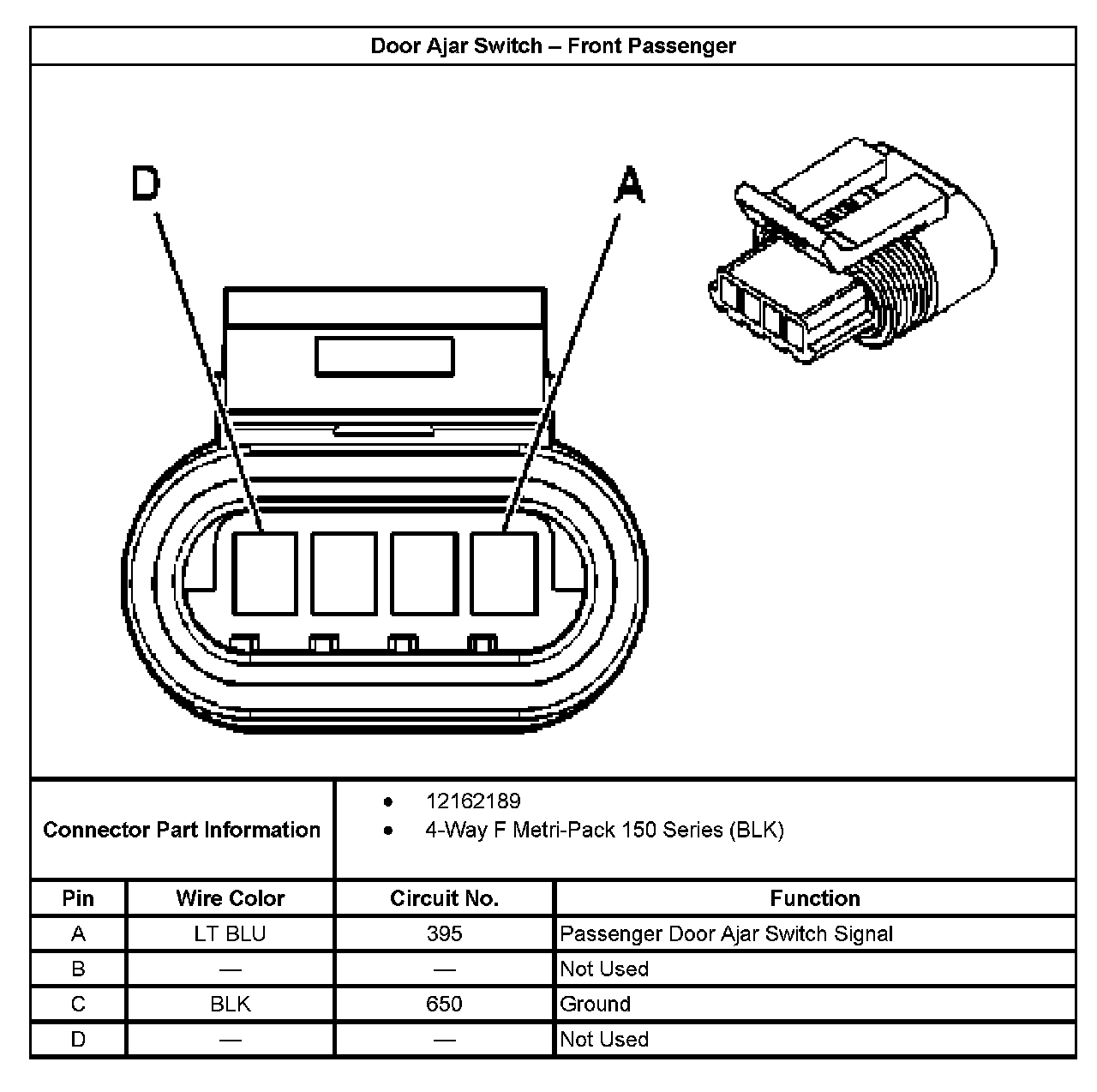

Door Ajar Switch - Front Passenger:

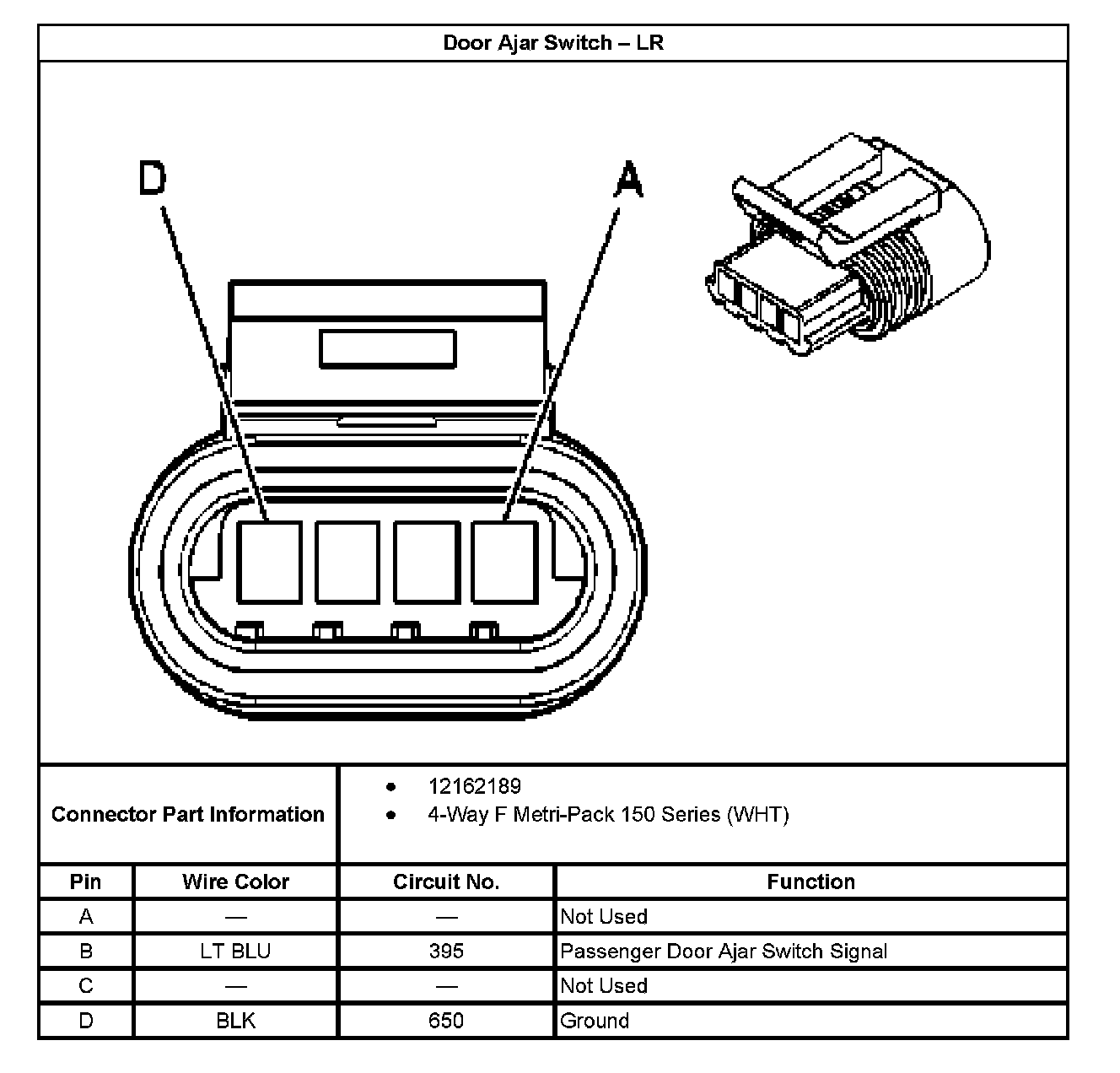

Door Ajar Switch - LR:

Door Ajar Switch - RR:
