Home >> Chevrolet >> 2005 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Front Verticle Motor

Front Verticle Motor

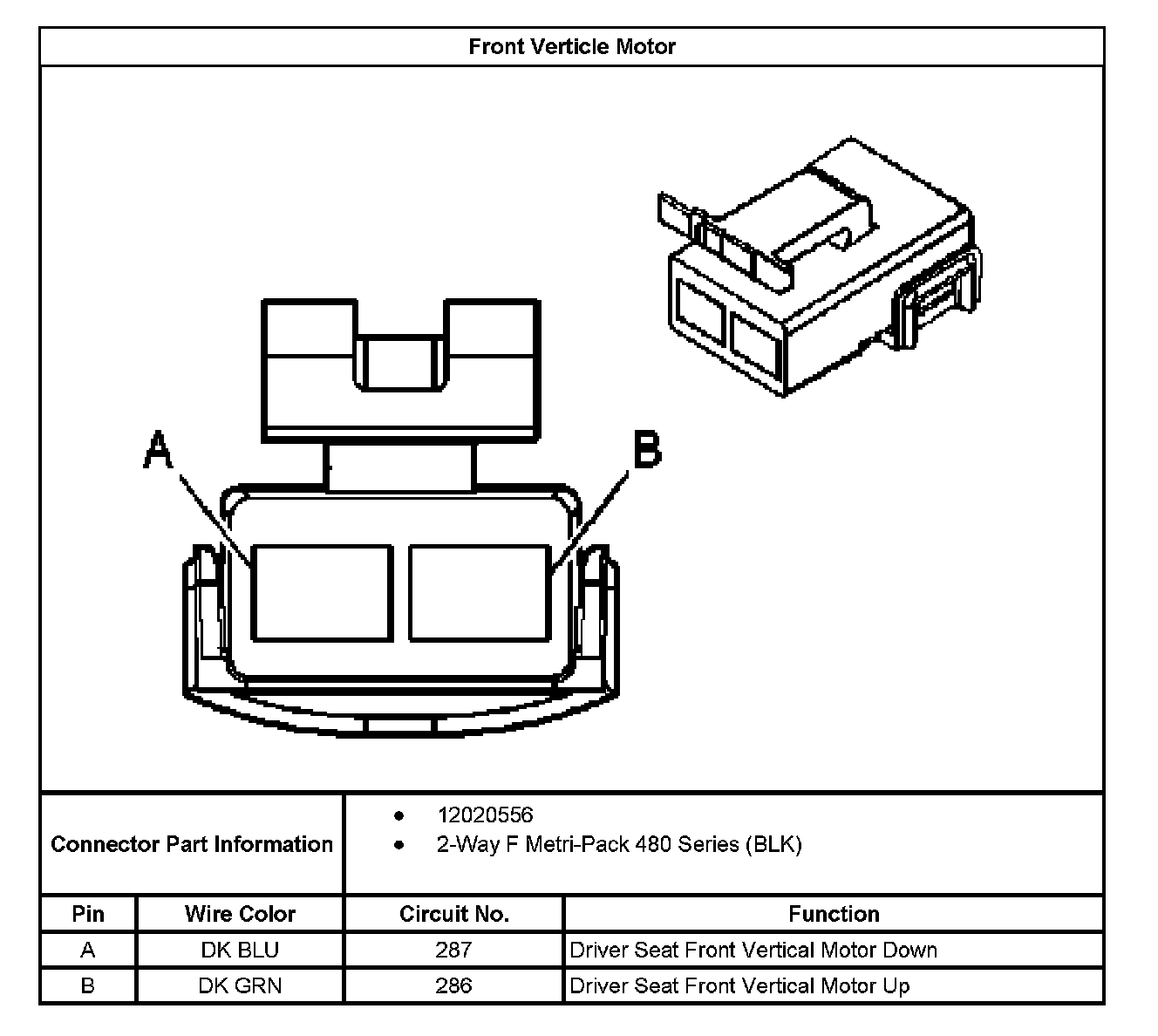

Front Verticle Motor:
