Home >> Chevrolet >> 2005 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP100 - SP199 >> SP103

SP103

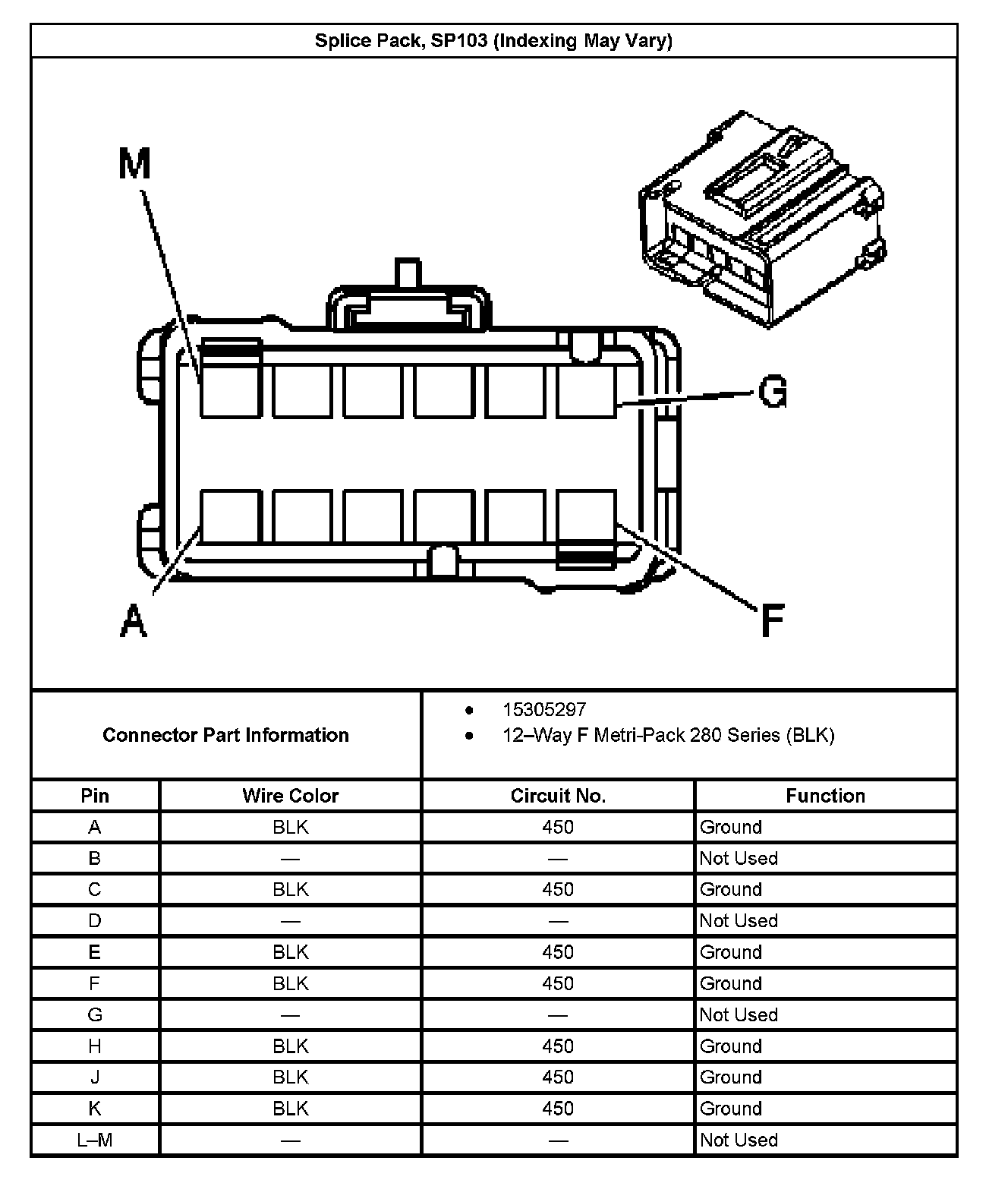

Splice Pack, SP103:
