Home >> Chevrolet >> 2005 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP200 - SP299 >> SP203

SP203

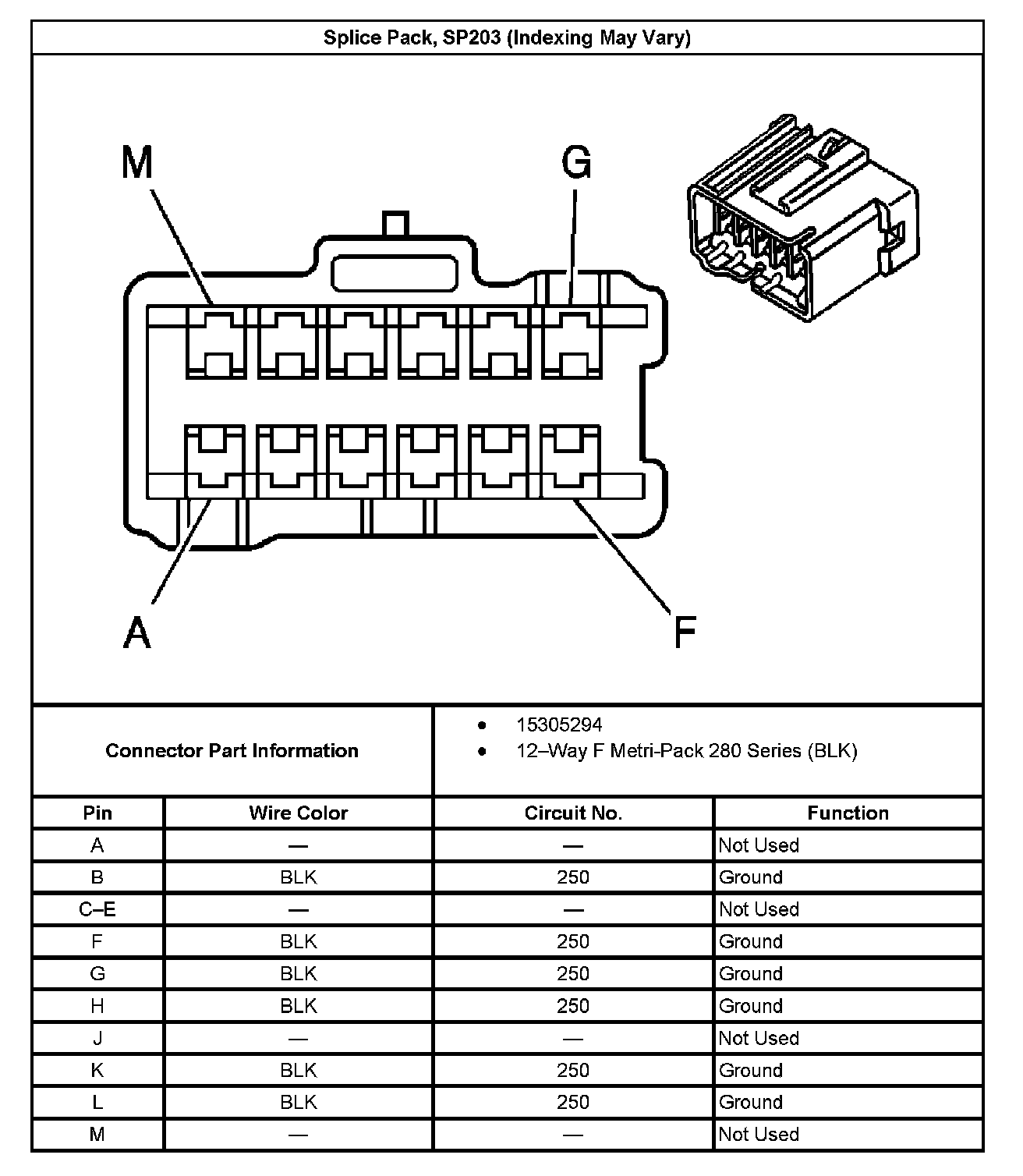

Splice Pack, SP203:
