Home >> Chevrolet >> 2005 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP300 - SP399 >> SP302

SP302

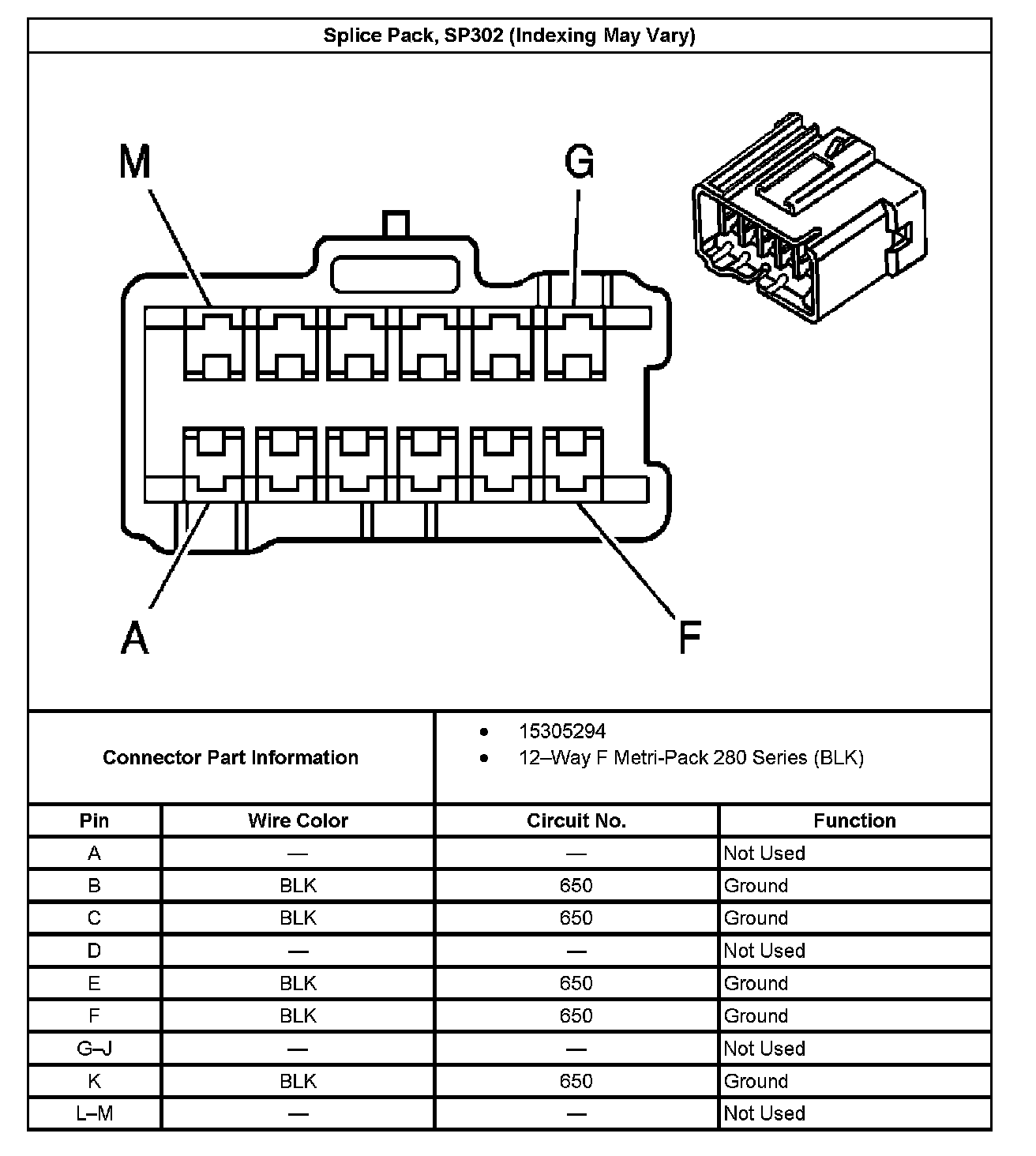

Splice Pack, SP302:
