Home >> Chevrolet >> 2005 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP400 - SP499 >> SP402

SP402

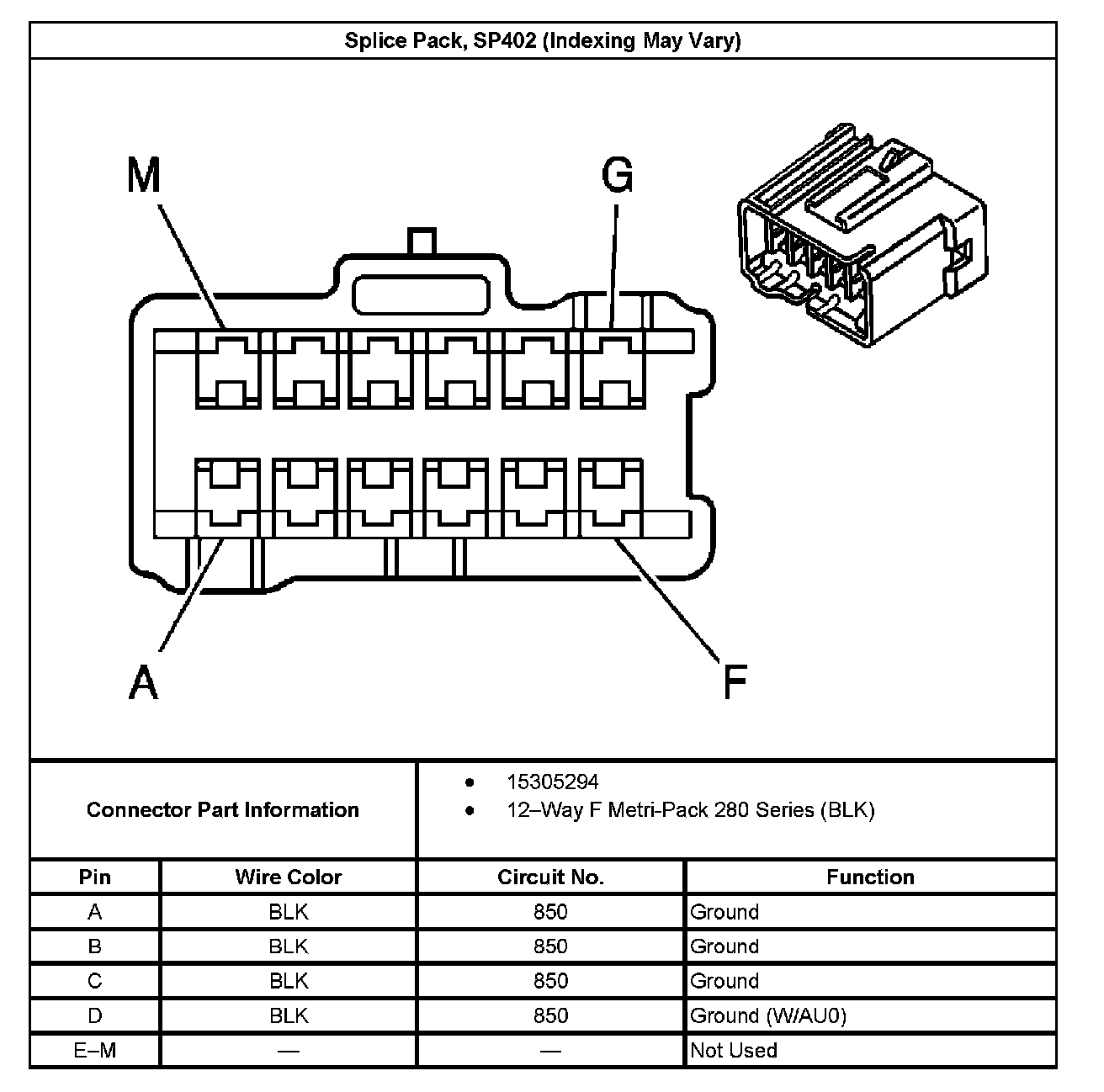

Splice Pack, SP402:
