A/T Inline Harness Connector, Transmission Side
A/T Inline Harness Connector, Transmission Side

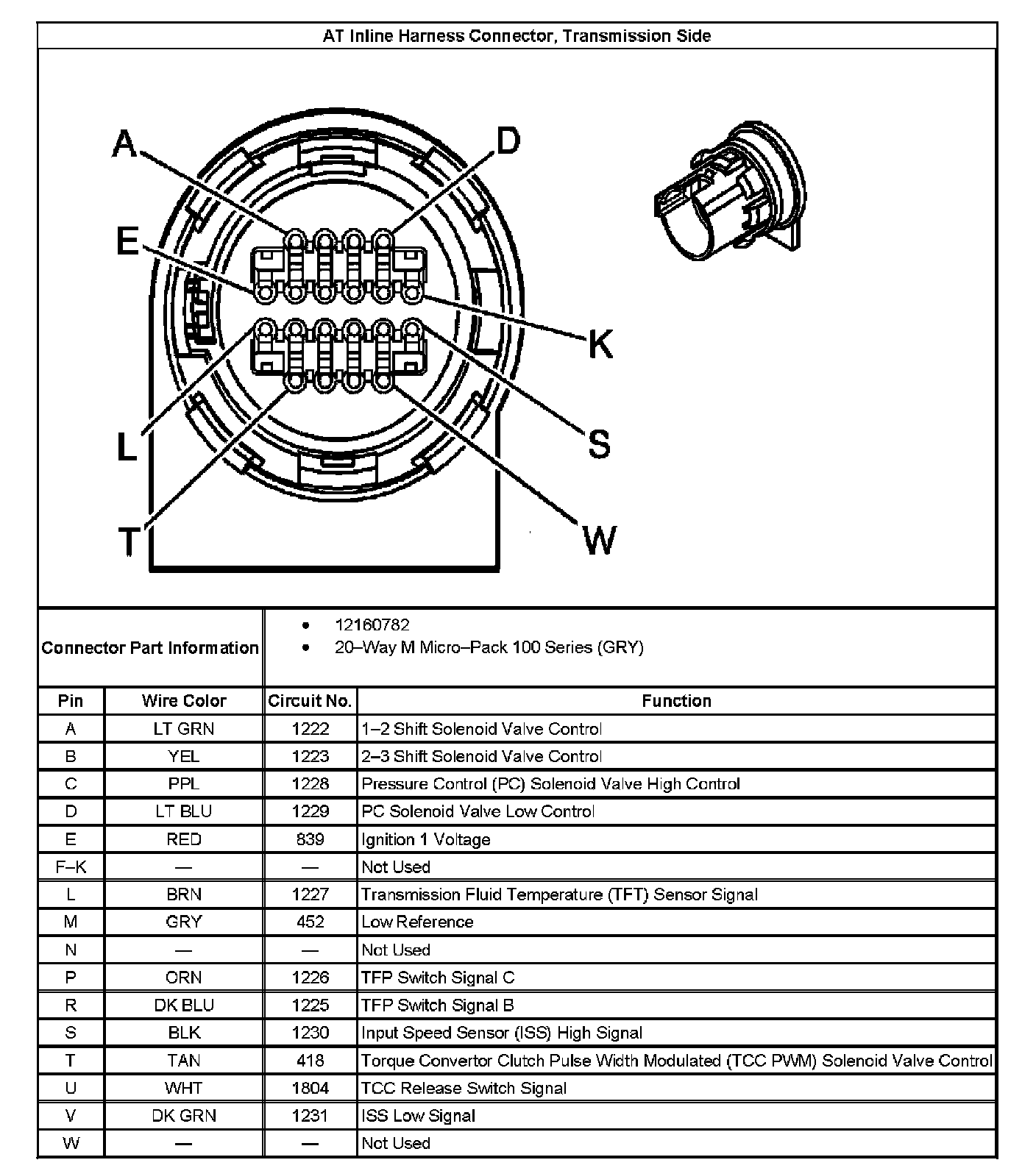

AT Inline Harness Connector Transmission Side:
