Transmission Shift Position Indicator Lamp
Transmission Shift Position Indicator Lamp

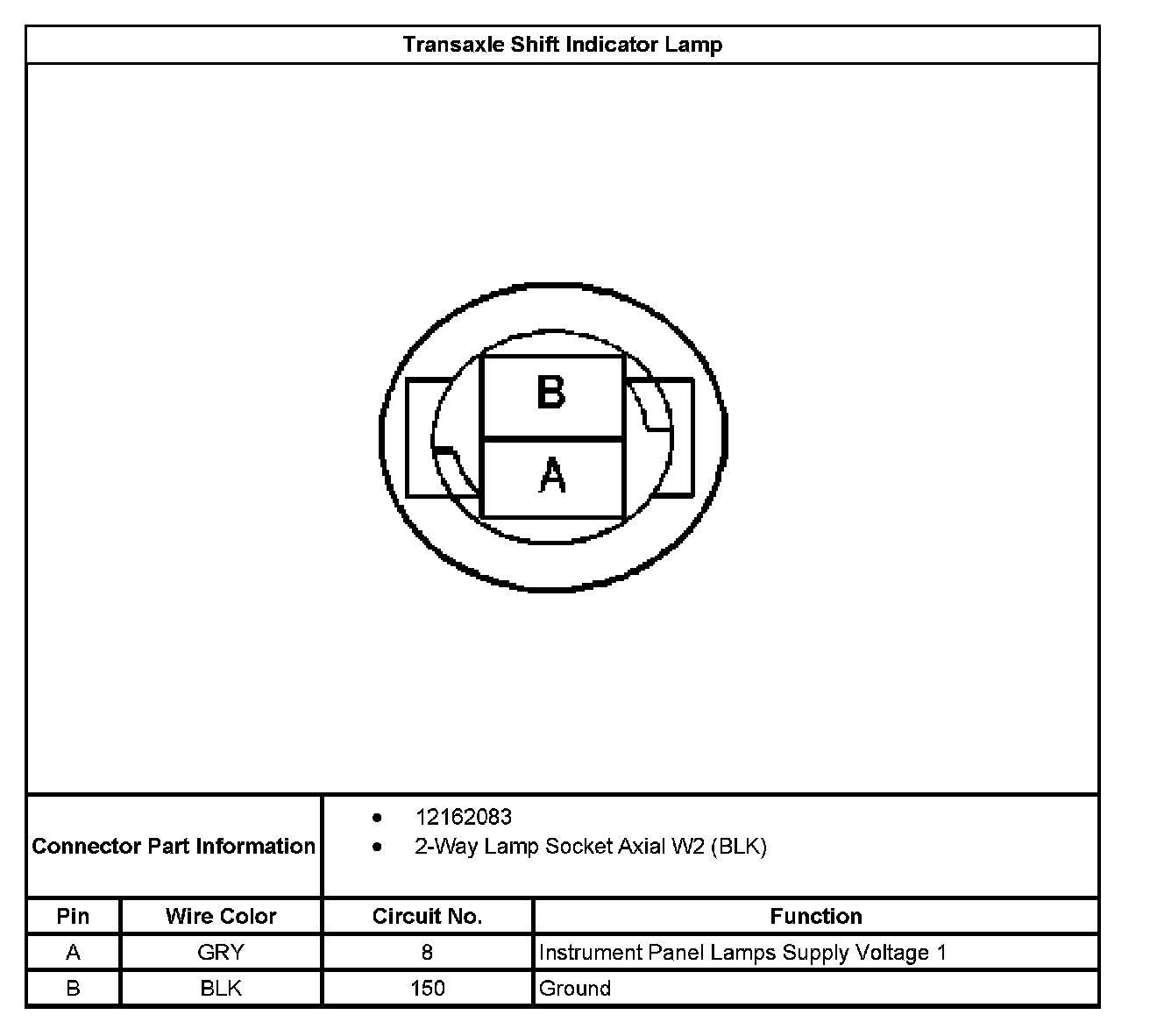

Transaxle Shift Indicator Lamp:
