Instrument Panel Cluster (IPC) - Replacement

INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT

REMOVAL PROCEDURE
1. Remove the cluster trim plate.

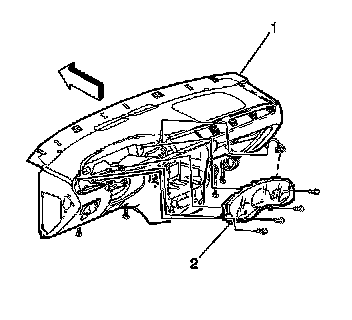

2. Remove the screws attaching the I/P cluster (2) to the I/P carrier (1).
3. Pull the I/P cluster (2) rearward in order to remove the cluster from I/P carrier.
4. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Install the I/P cluster (2) to the I/P carrier (1).
3. Install the I/P cluster bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolts to 2.3 N.m (20 lb in).

4. Install the cluster trim plate.
