Torque Converter Clutch Solenoid, A/T

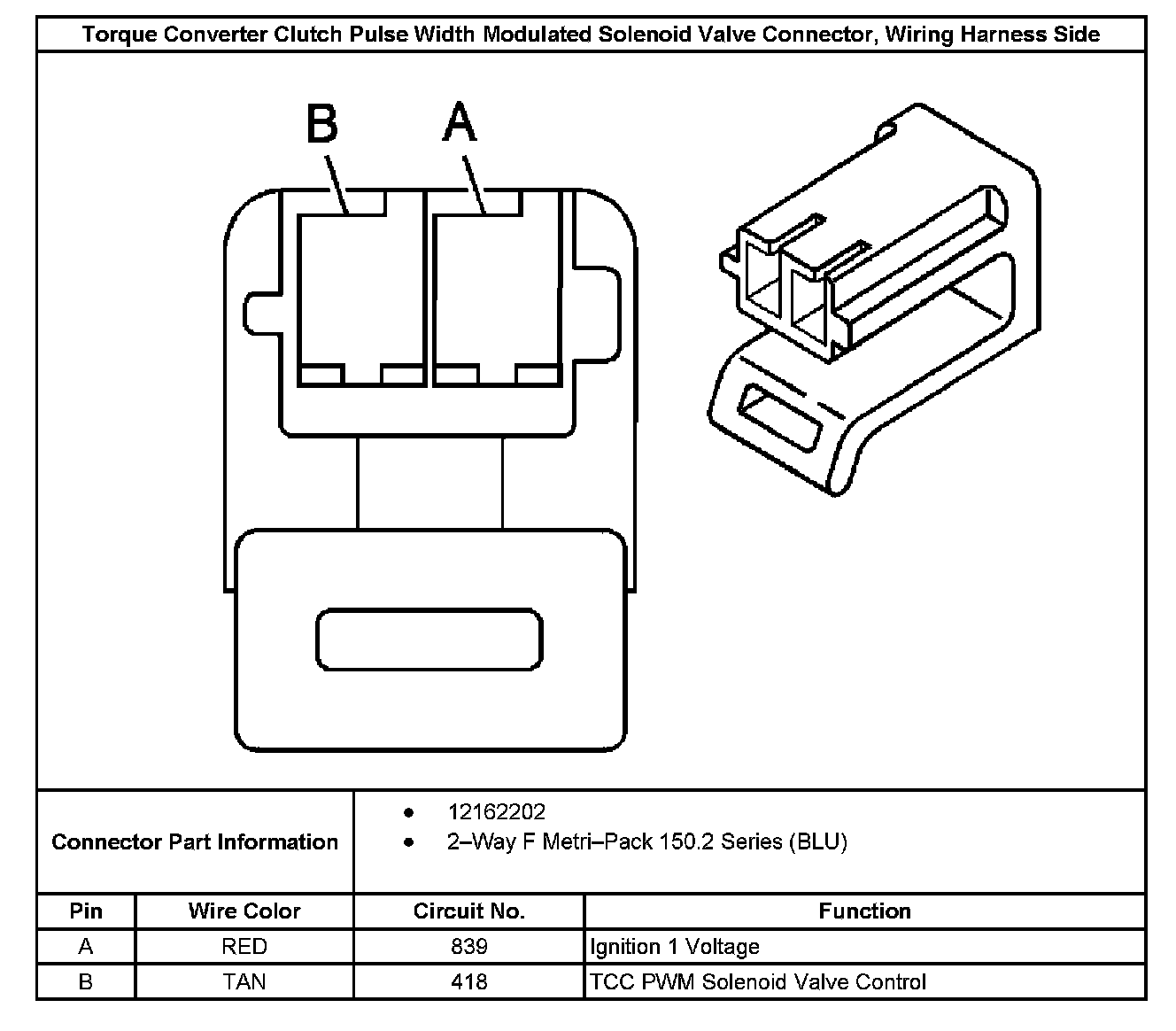

Torque Converter Clutch Pulse Width Modulated Solenoid Valve Connector End View, Wiring Harness Side:
