Auxiliary Power Outlet
>>
Auxiliary Power Drop Connector
Auxiliary Power Drop Connector

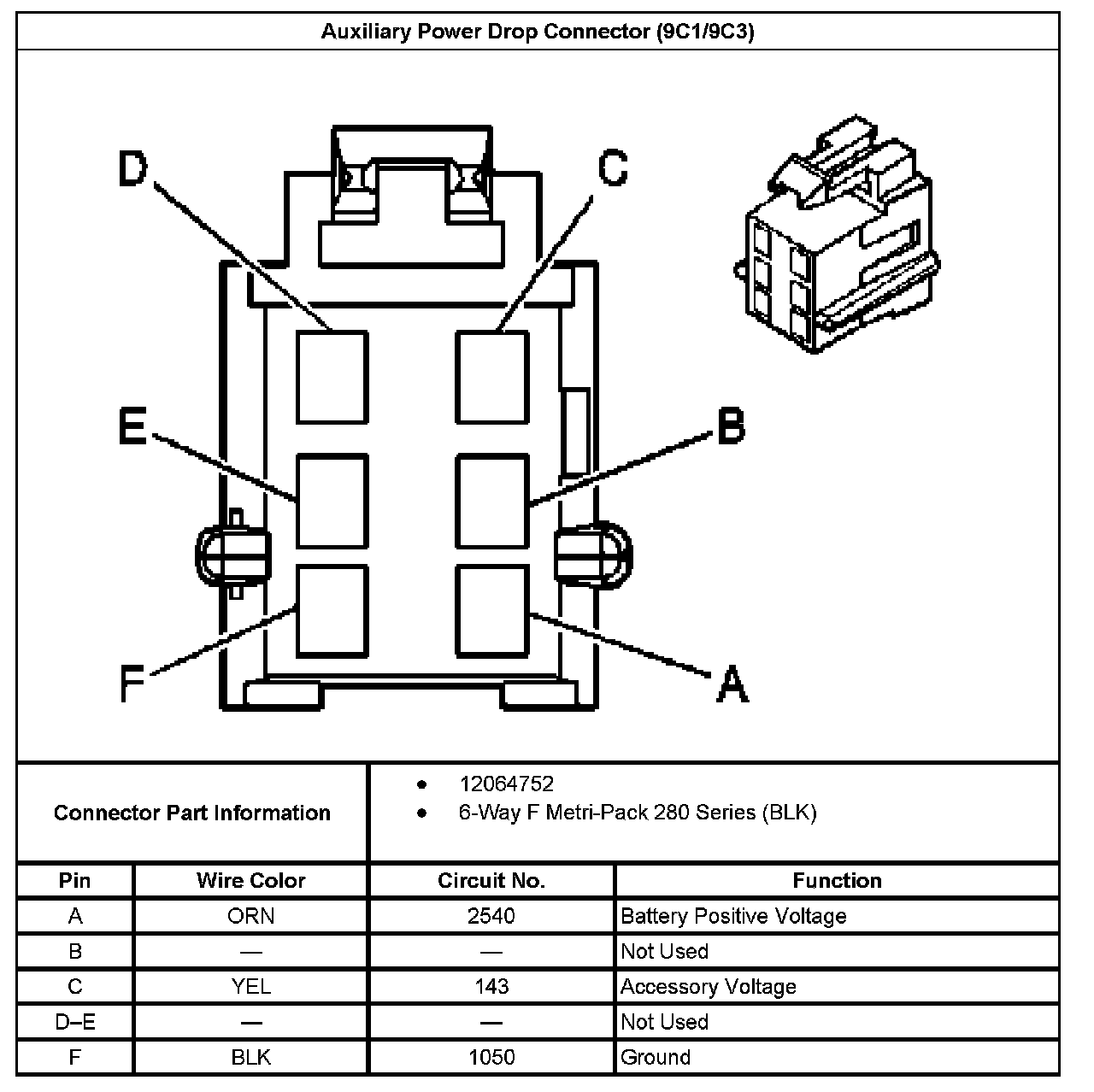

Auxiliary Power Drop Connector (With RPO Code 9C1/9C3):
