Home
>>
Chevrolet
>>
2005
>>
Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Locks
>>
Door Lock - Front Passenger
Door Lock - Front Passenger

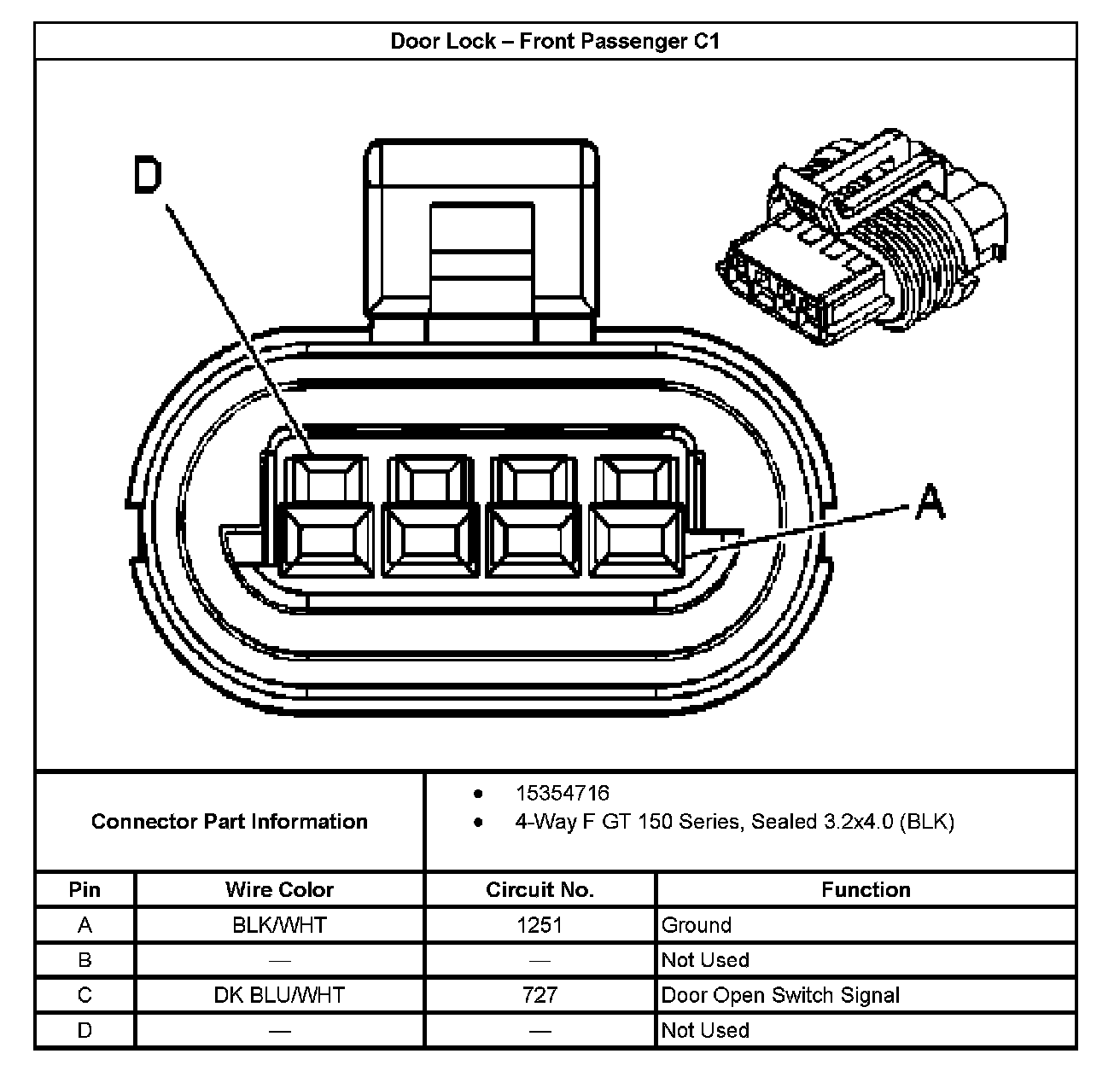

Door Lock - Front Passenger C1:

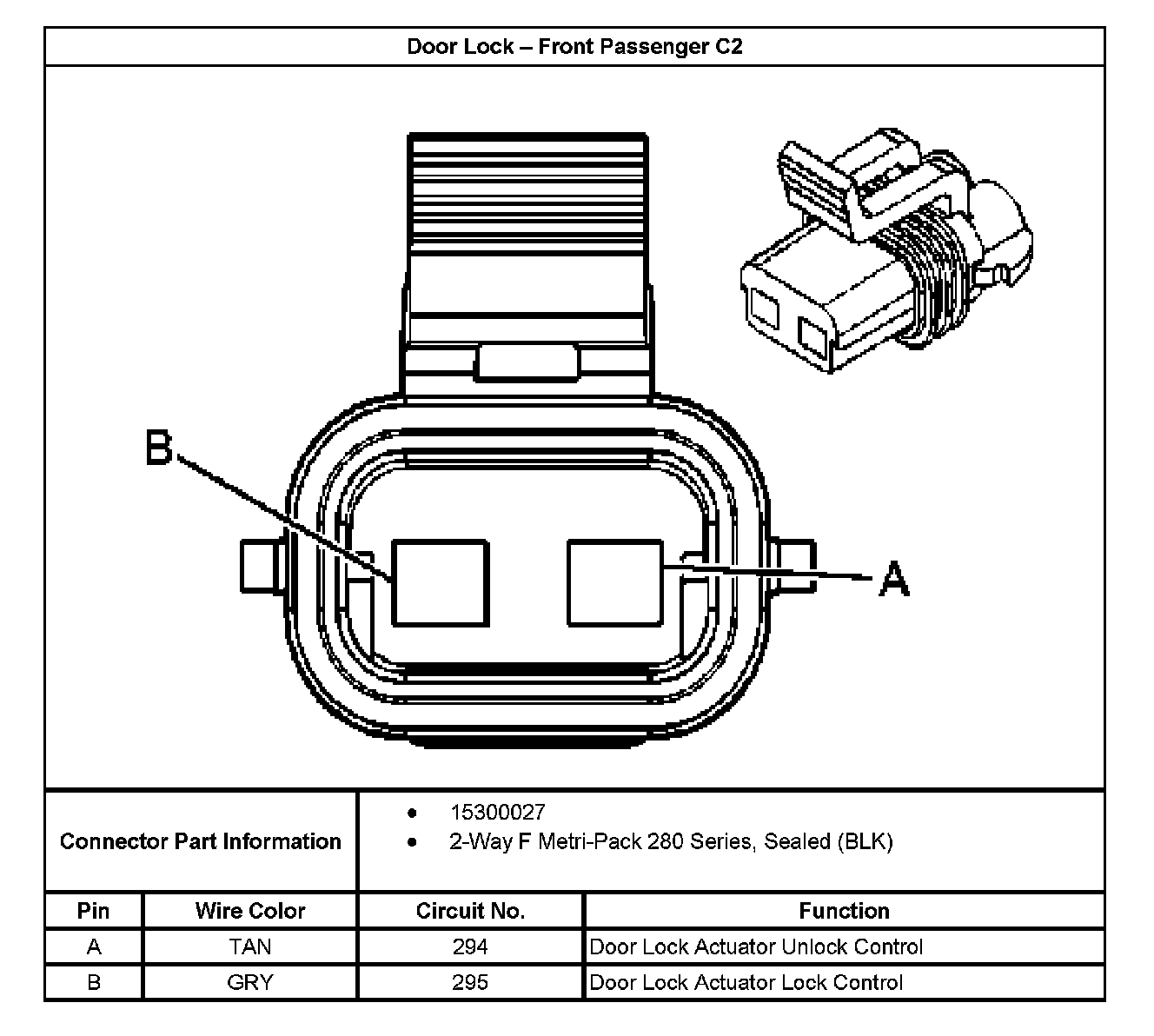

Door Lock - Front Passenger C2:
