Junction Block - Right I/P - C2
Junction Block - Right I/P - C2

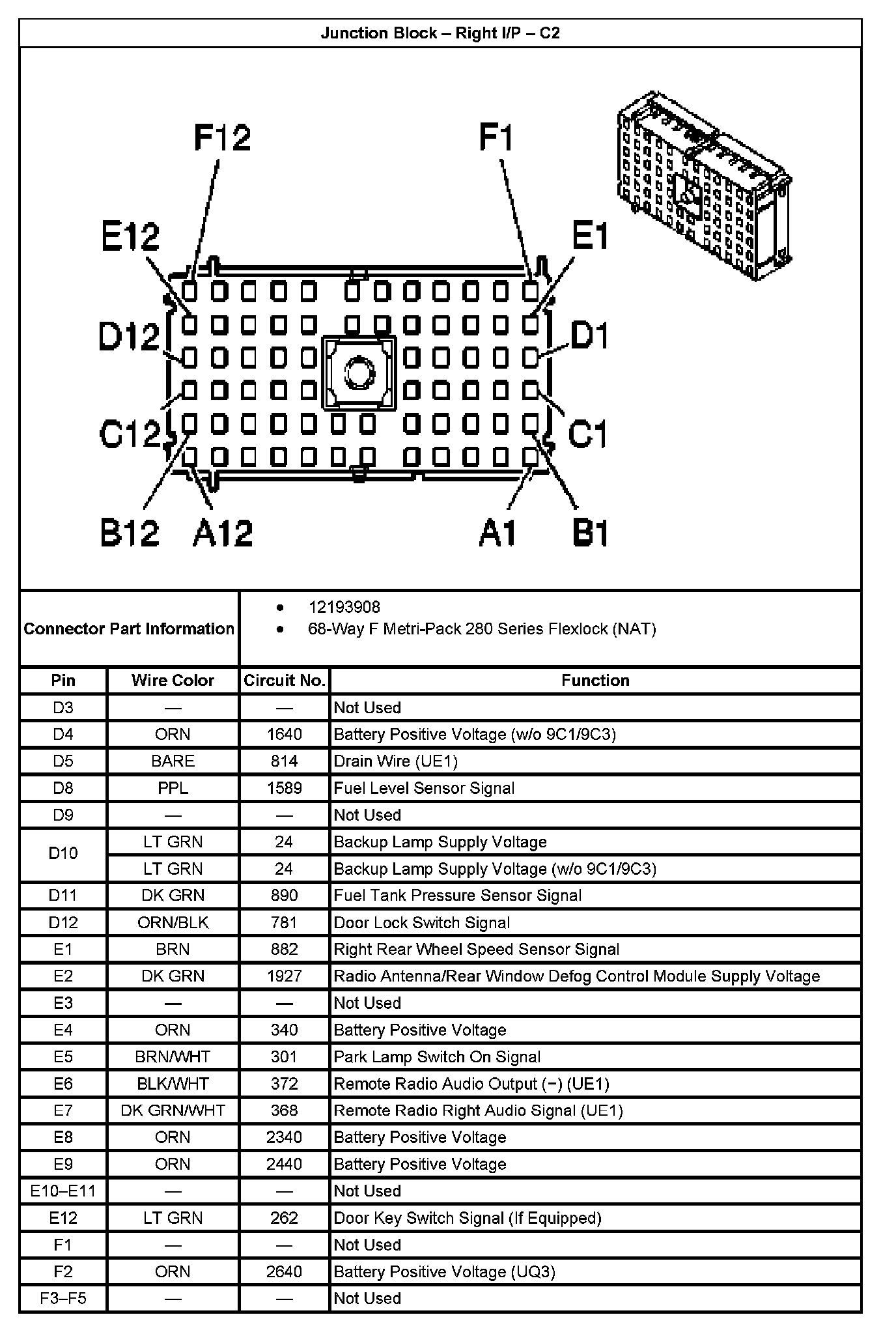

Junction Block - Right I/P - C2 Part 1:

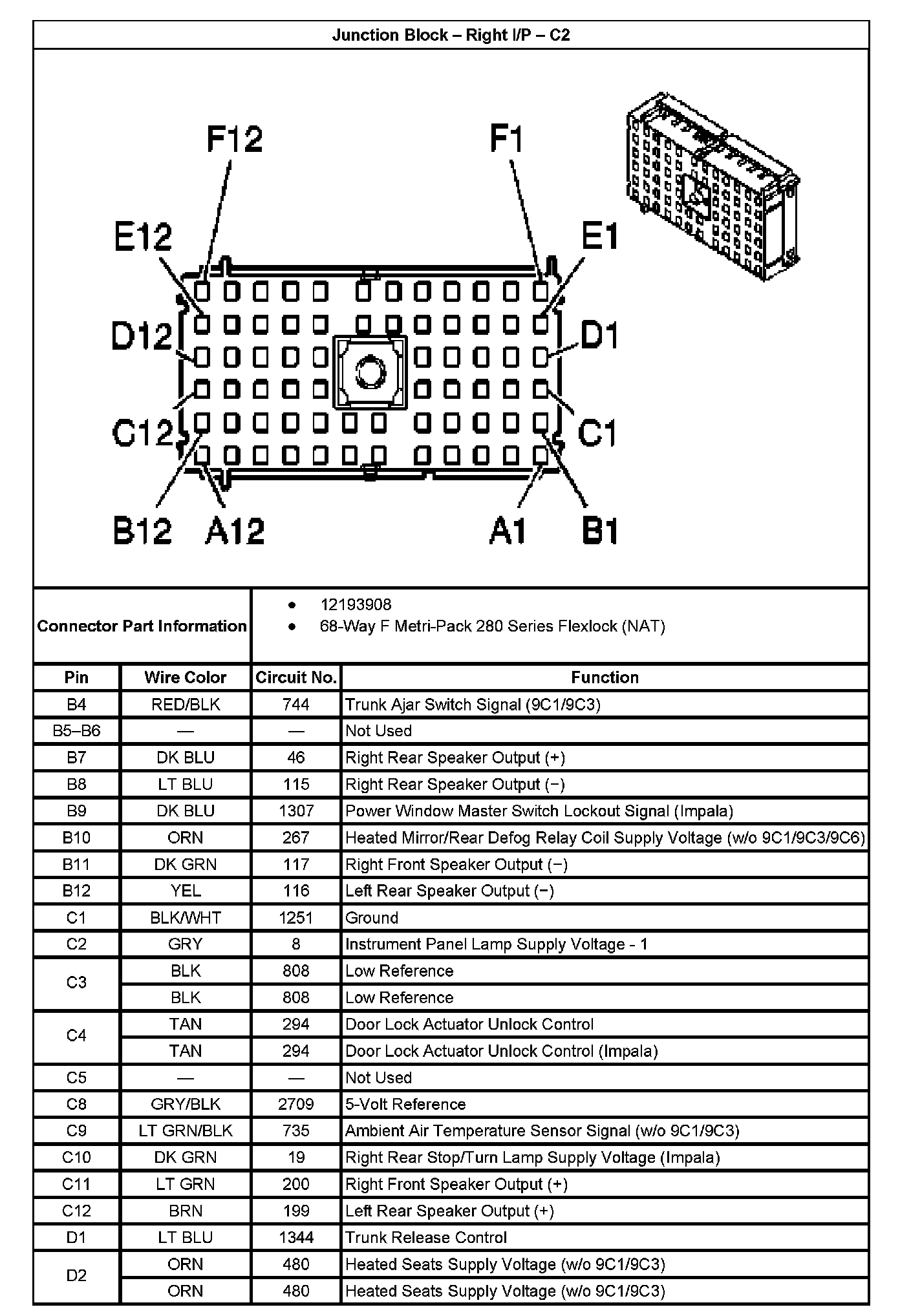

Junction Block - Right I/P - C2 Part 2:
Junction Block - Right I/P - C2 Part 3:
Junction Block - Right I/P - C2 Part 4:
