Transmission Internal Mode Switch Connector, Wiring Harness Side
Transmission Internal Mode Switch Connector, Wiring Harness Side

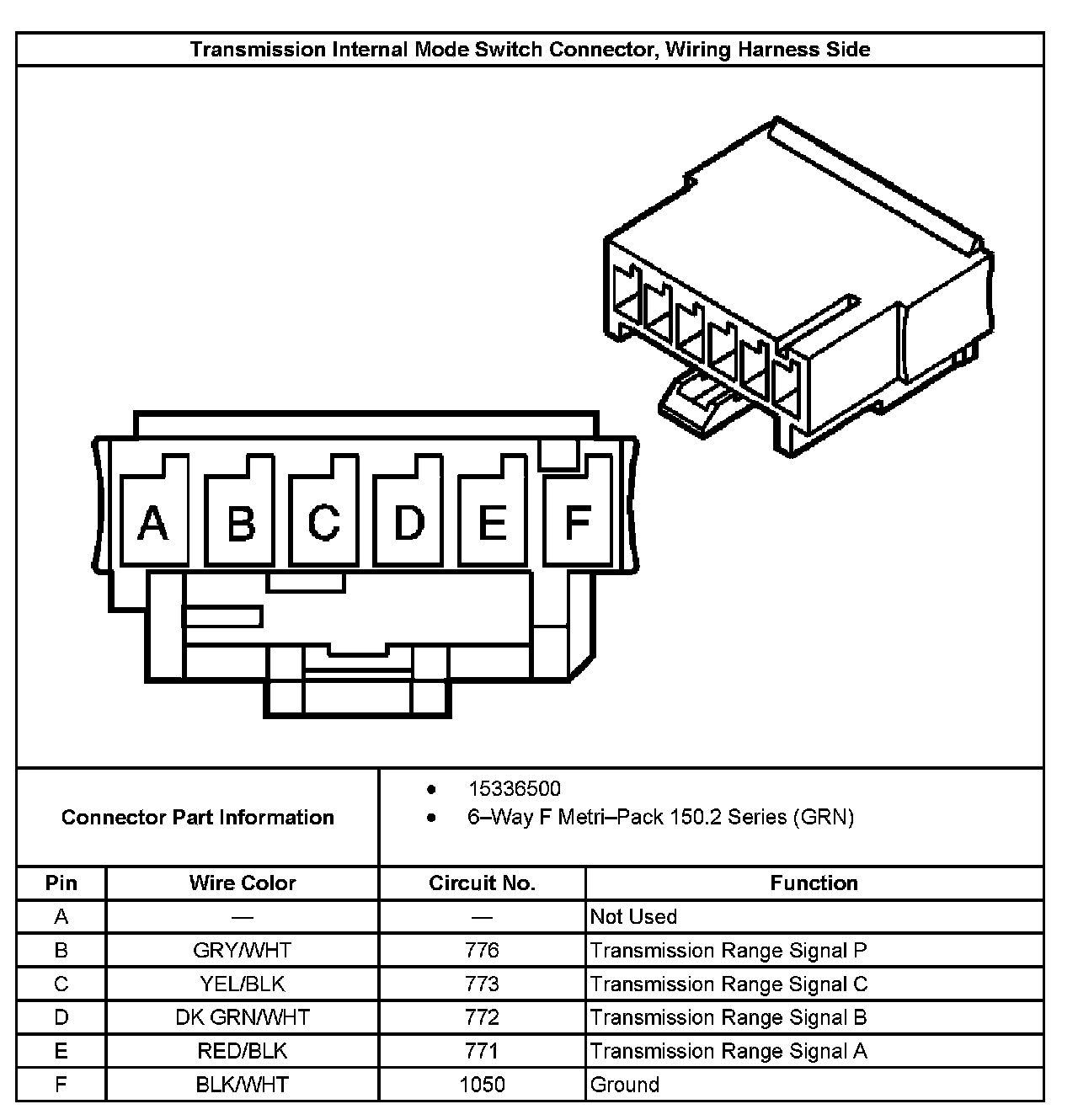

Transmission Internal Mode Switch Connector End View, Wiring Harness Side:
