Shift Interlock, A/T

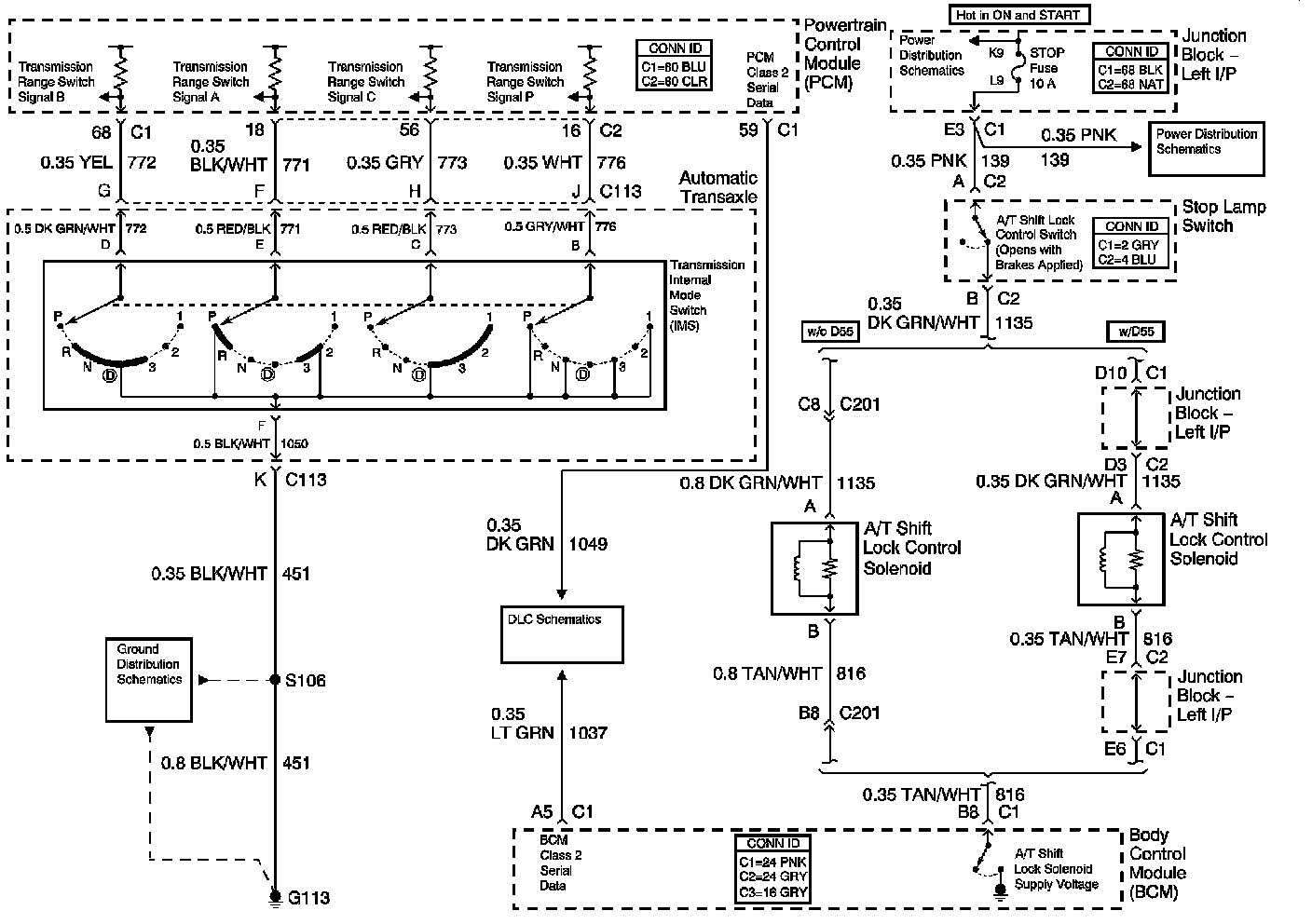

Automatic Transmission Shift Lock Control Diagram:





Automatic Transmission Shift Lock Control Diagram
