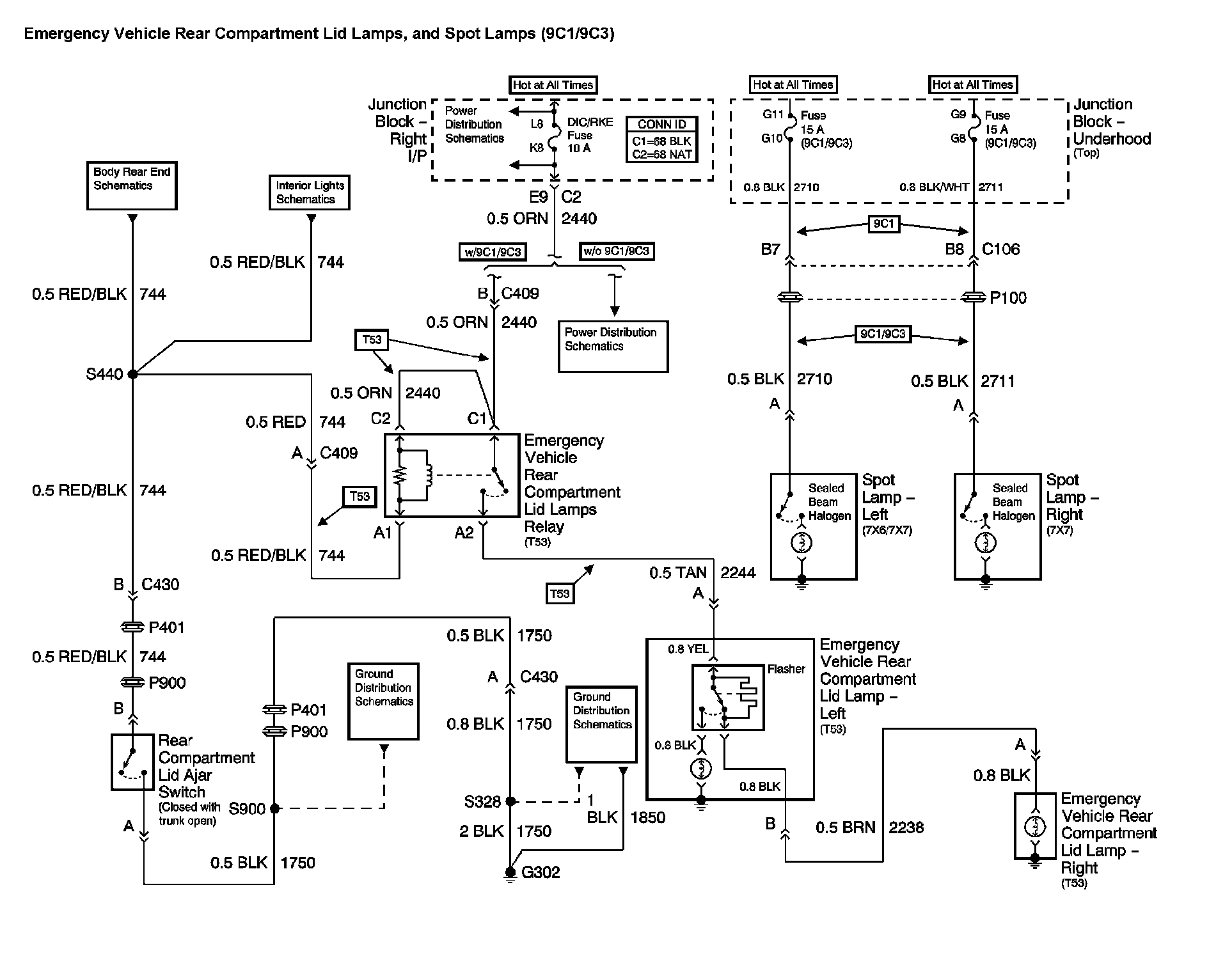

Exterior Lights Diagram 13

Exterior Lights Diagram 13:

Previous Diagram Exterior Lights Diagram 12

The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
