76. Water Pump Installation

Water Pump Installation

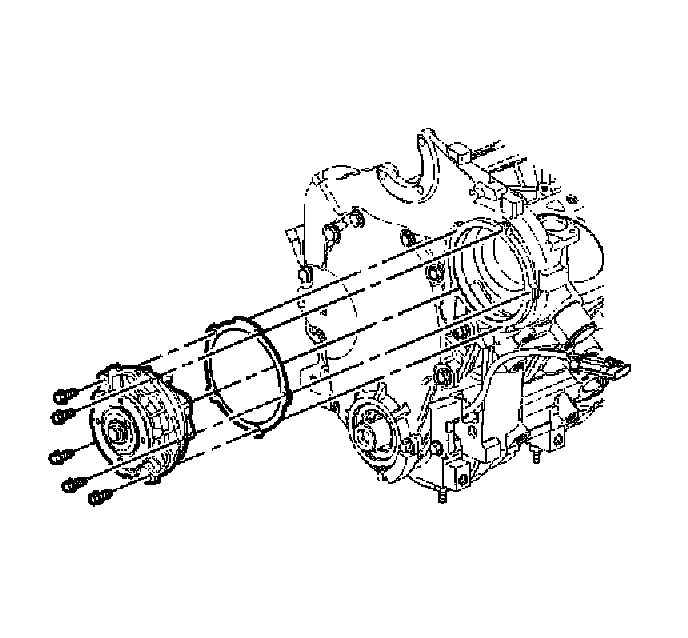

1. Install the water pump gasket.
2. Install the water pump.

3. Notice: Refer to Fastener Notice in Service Precautions.

Install the water pump bolts.
^ Tighten the water pump bolts to 11 Nm (98 inch lbs.).

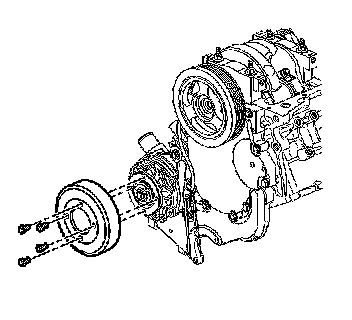

4. Install the water pump pulley.
5. Install the water pump pulley bolts.
^ Tighten the water pump pulley bolts to 25 Nm (18 ft. lbs.).
