Roof Console Retainer Replacement

ROOF CONSOLE RETAINER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the overhead console.
2. Remove the sunshade anchors.




3. Lower the headliner at the sunroof opening.

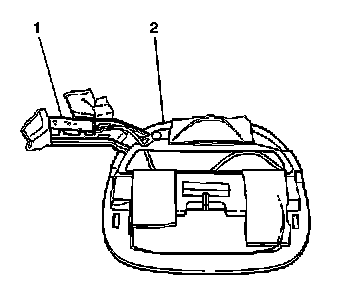

4. Remove the foam tape from the electrical harness on the console retainer (2).
5. Reposition the electrical harness away from the retainer.
6. Slide the retainer forward and remove the retainer from the front of the headliner.
7. Remove the remote compass sensor.

INSTALLATION PROCEDURE




1. Install the remote compass sensor in the console retainer.
2. Slide the retainer (2) under the front edge of the headliner to the installed position.
3. Position the electrical harness in the retainer and tape the harness into place.
4. Install the sunshade anchors.
5. Install the overhead console.
