Fog/Driving Lamp: Service and Repair

FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE

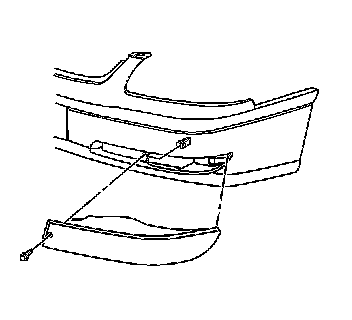

1. Remove the screw from the fog lamp.
2. Remove the fog lamp from the front bumper fascia.

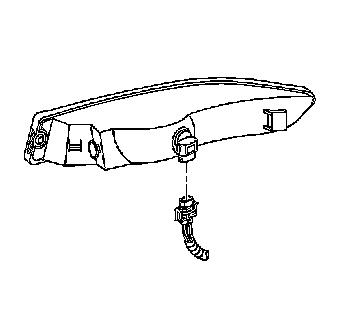

3. Disconnect the electrical connector from the fog lamp bulb.
4. Remove the fog lamp bulb, turning counterclockwise.

INSTALLATION PROCEDURE




1. Install the fog lamp bulb, turning clockwise.
2. Connect the electrical connector to the fog lamp.
3. Install the fog lamp to the front bumper fascia.




4. Install the screw to the fog lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 5 N.m (44 lb in).
