Emergency Vehicle Rear Flasher Replacement



EMERGENCY VEHICLE REAR FLASHER REPLACEMENT

REMOVAL PROCEDURE




1. Adjust the right side rear compartment trim for access.
2. Disconnect the electrical connectors.

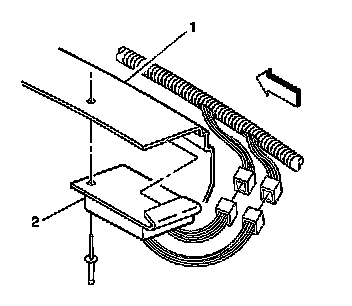

3. Remove the rivet from the rear window panel extension brace (1).
4. Remove the emergency vehicle rear flasher (2).

INSTALLATION PROCEDURE




1. Position the emergency vehicle rear flasher (2) to the rear window panel extension brace (1).
2. Install a rivet to secure the flasher.
3. Connect the electrical connectors.
4. Install the rear compartment trim.
