Window Panel Lamp Lens and Bulb - Rear (SEO) (With RPO Code 6J6)

WINDOW PANEL LAMP LENS AND BULB - REAR

REMOVAL PROCEDURE

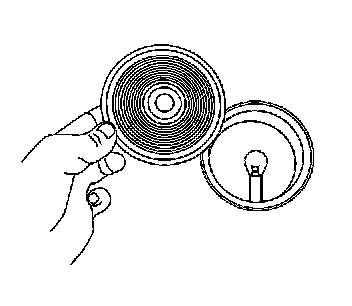

1. Remove the lens from the rear window panel lamp.Inserted a small coin under the rear window panel lamp lens and then twist the coin.




2. Remove the bulb from the rear window panel lamp socket.

INSTALLATION PROCEDURE




1. Install the bulb to the rear window panel lamp socket.




2. Install the lens to the rear window panel lamp, pressing into place until fully seated.
