Auxiliary Power Outlet: Service and Repair

ACCESSORY POWER RECEPTACLE REPLACEMENT - FLOOR CONSOLE

TOOLS REQUIRED
J 42059 Cigar Lighter Socket Remover

REMOVAL PROCEDURE

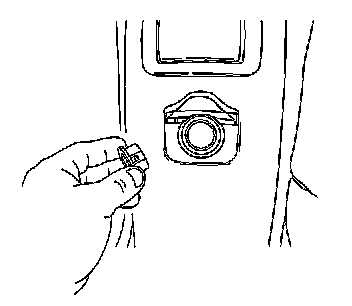

1. Remove the power accessory receptacle fuse.

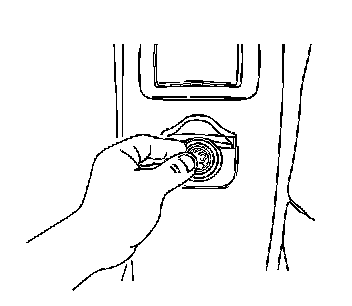

2. Remove the power accessory receptacle by placing one side of the "T" receptacle on of J 42059 into the tab window. Angle the other side into the opposite tab window. Pull the power accessory receptacle straight out.




3. If the standard method fails to remove the receptacle, use the following alternate method:
1. Insert a small grinding tool with a cutoff wheel into the receptacle.
2. Remove the plastic latches in the 3-mm (0.11-in) square windows.
3. Use J 42059 as directed above to remove the receptacle.
4. Remove J 42059 from the power accessory receptacle.




5. Disconnect the electrical connector from the receptacle

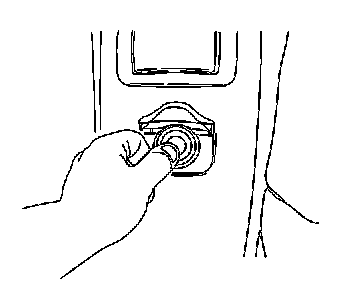

6. Using your index finger, pull out the receptacle retainer.

INSTALLATION PROCEDURE




1. Align the power accessory receptacle retainer to the slot in the receptacle opening.




2. Install the receptacle retainer by pressing the retainer into place until fully seated.




3. Connect the electrical connector to the power accessory receptacle.




4. Position the tabs on the receptacle to the retainer.

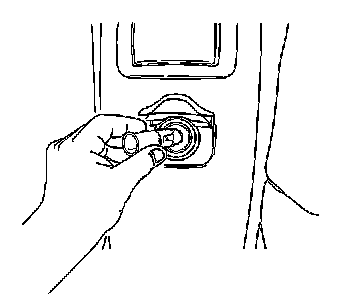

5. Install the receptacle into the front floor console, pressing the receptacle into place until fully seated.
6. Install the fuse to the power accessory receptacle.
7. Inspect the receptacle for proper operation.
